Remove/Install Insulation On Hood - Ar88.40-D-2546TS

Model 907

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Remove/install

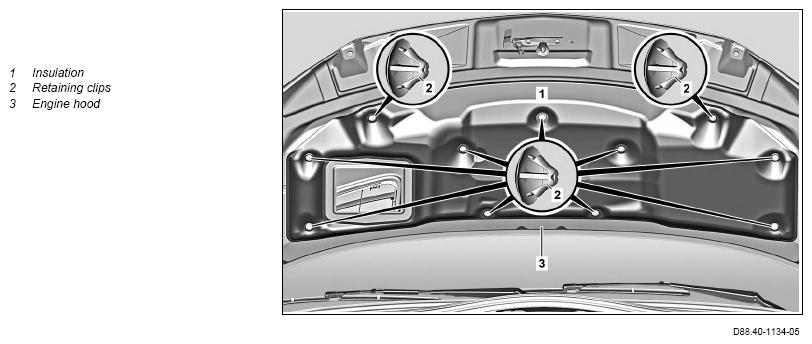

1	Remove insulation (1) from hood (3)	For this purpose, remove retaining clips (2). Check retaining clips (2) for damage. Clip remover Depending on findings ↓ Replace damaged retaining clips (2).	Fig 1
2	Install in the reverse order

Fig 1: Clip Remover (452 589 01 63 00)
