Remove/Install Front Section Of Front Fender Liner - Ar88.10-D-1322TS
Model 907

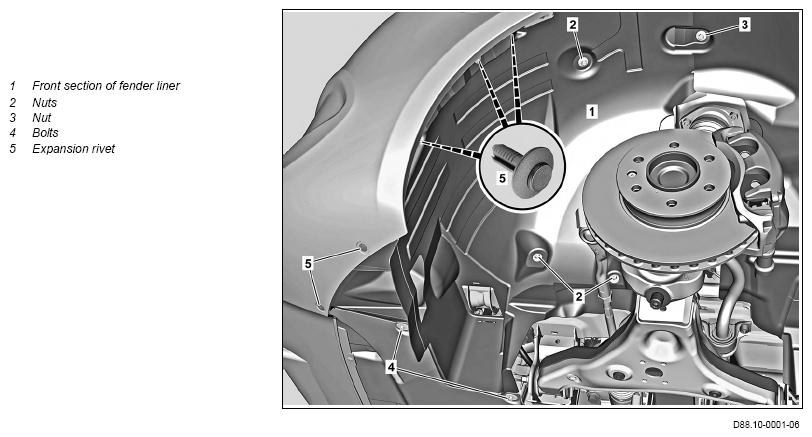

Shown on model 907 left, front wheel removed
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Remove/install | |||
| 1 | Raise vehicle | AR00.60-D-1000-04TS | |
| Special instructions for lifting and supporting vehicle | AH00.60-N-0100-01TS | ||
| 2 | Loosen nut (3) | Depending on findings ↓ Replace damaged nut (3). |
|
| 3 | Unscrew nuts (2) | Depending on findings ↓ Replace damaged nuts (2). |
|
| 4 | Remove expansion rivet (5) | Depending on findings ↓ Replace damaged expansion rivets (5). |
|
| 5 | Remove bolt s (4) | ||
| 6 | Remove front section of fender liner (1) | ||
| 7 | Install in the reverse order |
