Remove/Install Electric Step - Ar88.30-D-8500TS
Model 907
with code T57 (Right load compartment sliding door electric step)
Model 907
with code T58 (Left load compartment sliding door electric step)

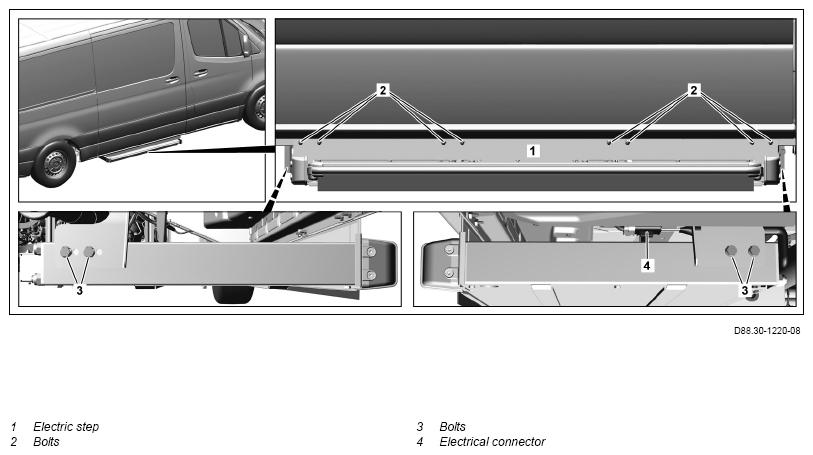

Shown on right side of vehicle
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Remove/install | |||
| 1 | Raise vehicle | AR00.60-D-1000-04TS | |
| Special instructions for lifting and supporting vehicle | AH00.60-N-0100-01TS | ||
| 2 | Disconnect electrical connector (4) | ||
| 3 | Remove screw/bolts (2) Notes on self-locking nuts and bolts |
AH00.00-N-0001-01A | |
| *BA88.30-N-1001-02TS | |||
| 4 | Remove electric step (1) | ||
| *BA88.30-N-1002-02TS | |||
| 5 | Install in the reverse order | ||
| Check | |||
| 6 | Perform function test |
ELECTRIC STEP
| Number | Designation | Model 907 | |
|---|---|---|---|
| BA88.30-N-1001-02TS | Screw, step to longitudinal member | Nm | 10 |
ELECTRIC STEP
| Number | Designation | Model 907 | |
|---|---|---|---|
| BA88.30-N-1002-02TS | Screw, step to bracket | Nm | 20 |
