Remove And Install Bracket For Electric Motor Of Electric Step - Ar88.30-D-8504TS
Type 907
with Code T57 (Electric step loading space sliding door on the right)
Type 907
with Code T58 (Electric step in the loading compartment sliding door on the left)
| Risk of injury
by cutting or. Scratches on sharp-edged vehicle parts |
Always when working on or in the area of sharp, unburred vehicle parts Wearing safety gloves. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Removing, installing | |||

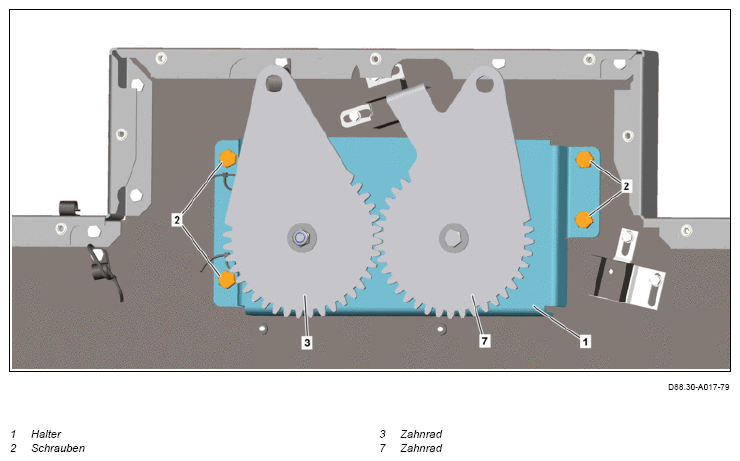

| 1 | Remove connecting rods for electric step from gear wheels (3, 7). | AR88.30-D-8502TS | |

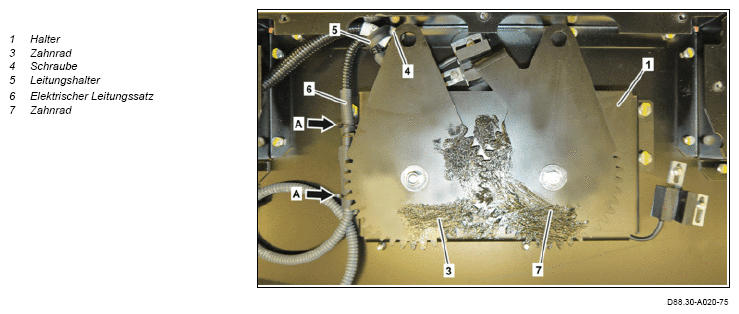

| 2 | Unscrew the screw (4) and loosen the cable holder (5) with the electrical cable set (6). | *BA88.30-N-1013-02TS | |
| 3 | Unclip electrical wiring harness (6) from holder (1) (arrows A). | Fig 1 | |
| 4 | Detach the electric motor of the electric step from the holder (1). | Typ 907 | AR88.30-D-8505TS |
| 5 | Detach the electric motor of the electric step from the holder (1). | *BA88.30-N-1007-02TS | |
| 6 | Install in reverse order. |
ELECTRIC STEP
| Number | Designation | Type 907 | |
|---|---|---|---|
| BA88.30-N-1007-02TS | Screw holder for electric motor on the upper part of the housing | Nm | 20 |
ELECTRIC STEP
| Number | Designation | Type 907 | |
|---|---|---|---|
| BA88.30-N-1013-02TS | Screw the conductor holder to the upper part of the housing | Nm | 10 |
