Connecting Rods For Electrical Step Removal And Installation - Ar88.30-D-8502TS

Type 907

with Code T57 (Electric step loading space sliding door on the right)

Type 907

with Code T58 (Electric step in the loading compartment sliding door on the left)

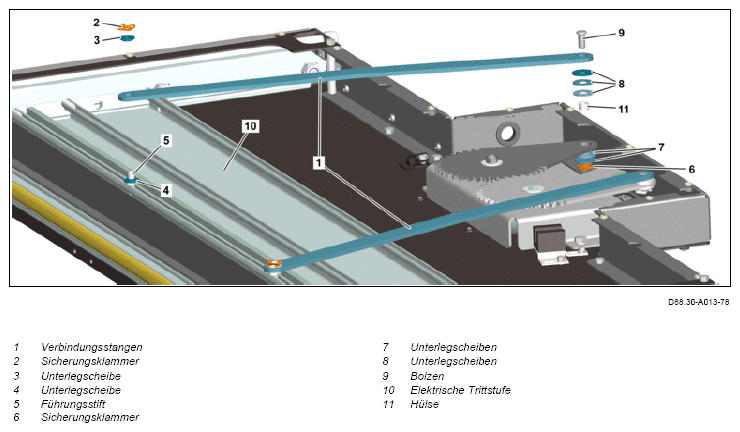

Shown on an expanded electric step (10)

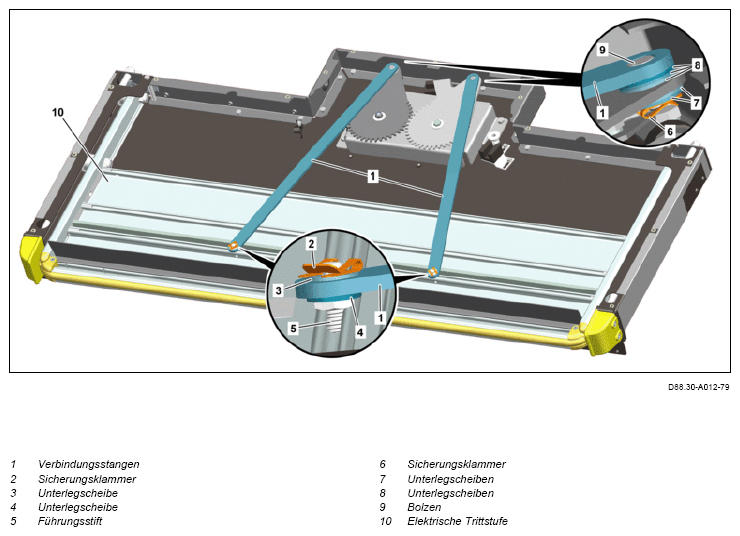

Shown on an expanded electric step (10)

Caution	Risk of injury  through cuts or scrapes on sharp-edged vehicle parts.	Caution Always wear protective gloves when working on or in the area of sharp, untrimmed vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Removing, installing
1	Disconnect the ground line of the vehicle electrical system battery.	Typ 900.6; Typ 906.6/7	AR54.10-D-0003SD
		Type 907	AR54.10-D-0029TS
2	Remove the lower part of the housing for the electric step.		AR88.30-D-8501TS
3	Detach the securing clip (2) of the corresponding connecting rod (1) from the guide pin (5) and remove the washer (3).	Pay attention to the location of the washer (4). Instead of the securing clips (2), spring cotter pins can optionally be installed.
4	Dismantle the securing clip (6) of the corresponding connecting rod (1) from the bolt (9) and remove the washers (7).
5	Remove the corresponding connecting rod (1) with the respective bolt (9), the washers (8) and the sleeve (11).	Note the arrangement of the washers (8). Otherwise the electrical step (10) may malfunction.
6	Install in reverse order.
	Check
7	Carry out a functional check of the electric step (10).
