Ar88.20-D-2200TS Remove/Install Rear Bumper

Model 907.6/7

with code JA7 (Blind Spot Monitoring)

Model 907.6/7

with code JB6 (Parking package with 360-degree camera)

Model 907.6/7

with code JB7 (Parking Package with reversing camera)

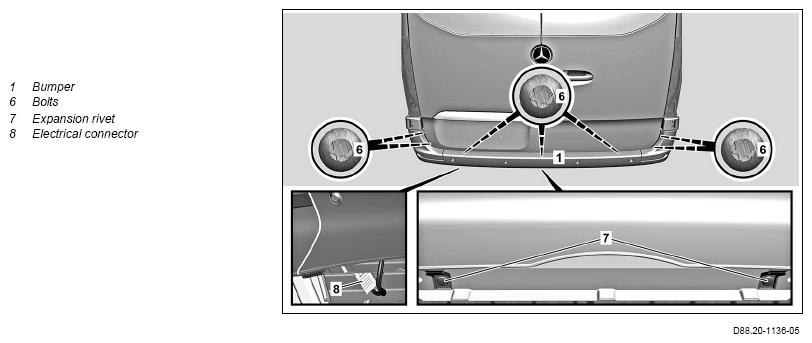

Shown on model 907.6 with code JB7 (Parking Package with reversing camera)

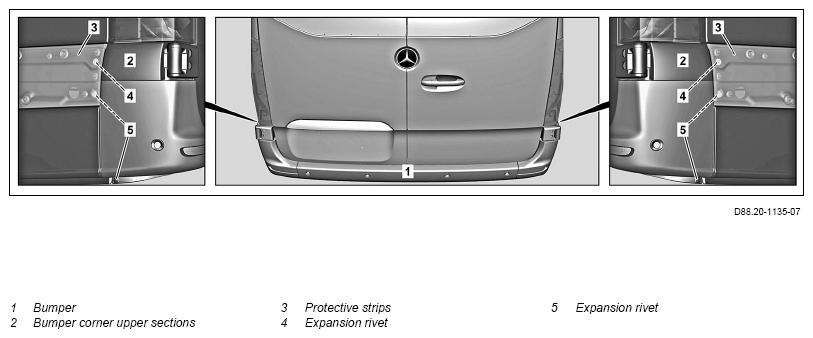

Shown on model 907.6 with code JB7 (Parking Package with reversing camera)

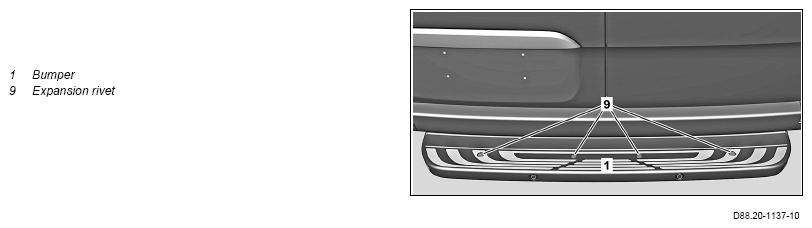

Shown with code W73 (Rear-end door step)

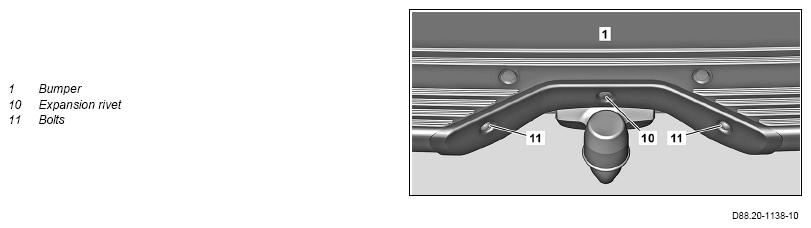

Shown with code W73 (Rear-end door step) and with code Q22 (Trailer coupling, non-removable ball head)

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Remove/install
1	Switch off ignition and store transmitter key outside of transmission range (min. 2 m)
2	Raise vehicle		AR00.60-D-1000-04TS
	Special instructions for lifting and supporting vehicle		AH00.60-N-0100-01TS
3	Remove rear protective strips (3)		AR88.80-D-1040TS
4	Remove expansion rivet (4)	Replace expansion rivets (4).
5	Remove expansion rivets (5)	Check expansion rivets (5) for damage. Depending on findings ↓ Replace damaged expansion rivets (5).
6	Remove bumper corner upper sections (2)	For this purpose, unclip bumper corner upper sections (2) at side wall. Check retaining clips for damage. Long wedge Depending on findings ↓ Replace damaged retaining clips.	Fig 1
7.1	Remove expansion rivets (7)	Model 907.6/7 except code W73 (Rear-end door step) Check expansion rivets (7) for damage. Depending on findings ↓ Replace damaged expansion rivets (7).
7.2	Remove expansion rivets (9)	Model 907.6/7 with code W73 (Rear-end door step) except code Q22 (Trailer coupling, non-removable ball head) Check expansion rivets (9) for damage. Depending on findings ↓ Replace damaged expansion rivets (9).
7.3	Remove expansion rivets (9, 10)	Model 907.6/7 with code Q22 (Trailer coupling, non-removable ball head) with code W73 (Rear-end door step) Check expansion rivets (9, 10) for damage. Depending on findings ↓ Replace damaged expansion rivets (9, 10).
8	Remove screws/bolts (11)	Model 907.6/7 with code Q22 (Trailer coupling, non-removable ball head) with code W73 (Rear-end door step) For this purpose, counterhold nuts.
9	Disconnect electrical connector (8)
10	Remove bumper (1)	Remove screws (6) for this. Helper required. Screw, rear bumper to body	*BA88.20-N-1001-01TS
11	Install in the reverse order
	Check
12	Function check of Blind Spot Assist	Model 907.6/7 with code JA7 (Blind Spot Assist)
13	Function check of PARKTRONIC	Model 907.6/7 with code JB6 (Parking package with 360-degree camera) Model 907.6/7 with code JB7 (Parking Package with reversing camera)

Fig 1: Long Wedge (115 589 03 59 00)
