Remove/install pedal assembly - AR29.10-P-0300W

MODEL 172 with TRANSMISSION 722

MODEL 166

Shown model 172

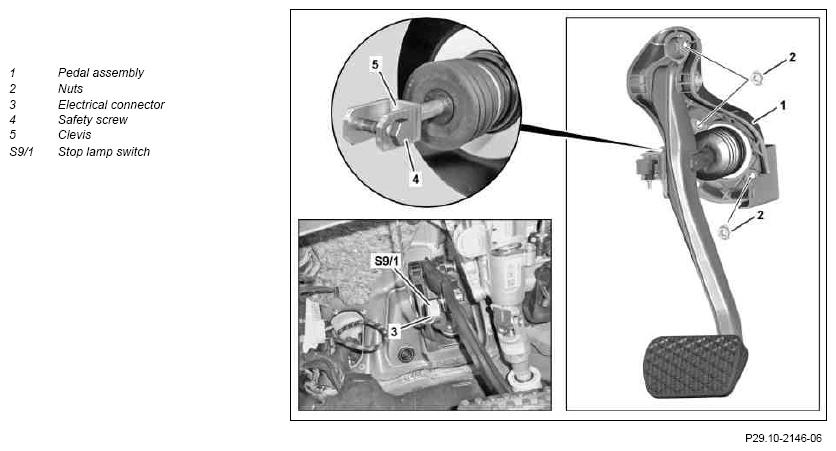

Fig 1: Identifying Pedal Assembly Remove/Install Components - Shown On Model 172

Courtesy of MERCEDES-BENZ USA

Illustration shows model 166

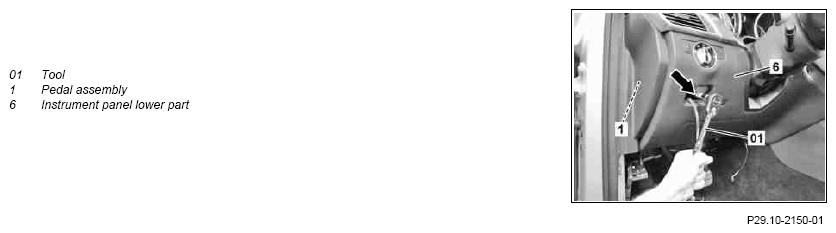

Fig 2: Identifying Pedal Assembly Remove/Install Components - Shown On Model 166

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
1	Switch off ignition and remove transmitter key or KEYLESS-GO start/stop button from electronic ignition lock control unit	KEYLESS-GO start/stop button only present on vehicles with CODE 889 (Keyless-Go).
2	Remove left cover below dashboard	MODEL 166 MODEL 172 with TRANSMISSION 722
		MODEL 166	AR68.10-P-1500GQ
3	Disconnect electrical connector (3) from brake light switch (S9/1)
4	Unscrew safety screw (4) and remove brake pedal from clevis (5)	The safety screw (4) must be replaced.
		MODEL 172 with TRANSMISSION 722	*BA43.10-P-1002-01J
		MODEL 166	*BA43.10-P-1002-01G
5	Detach electric parking brake switch from instrument panel lower part (6)	MODEL 117, 156, 166, 172, 176, 242, 246
			AR42.20-P-0505W
		Do not disconnect electrical connector from electric parking brake switch.
6	Unscrew nuts (2)	MODEL 166 Guide tool (01) for unscrewing upper nut (2) though opening (arrow) of instrument panel lower part (6).
		MODEL 172 with TRANSMISSION 722	*BA29.10-P-1001-02D
		MODEL 166	*BA43.10-P-1001-01G
7	Remove pedal assembly (1)
8	Install in the reverse order
