Overview Of System Components For Gasoline Injection And Ignition System With Direct Injection - GF07.70-P-9998MMT
Engine 276.8 in model 217, 222

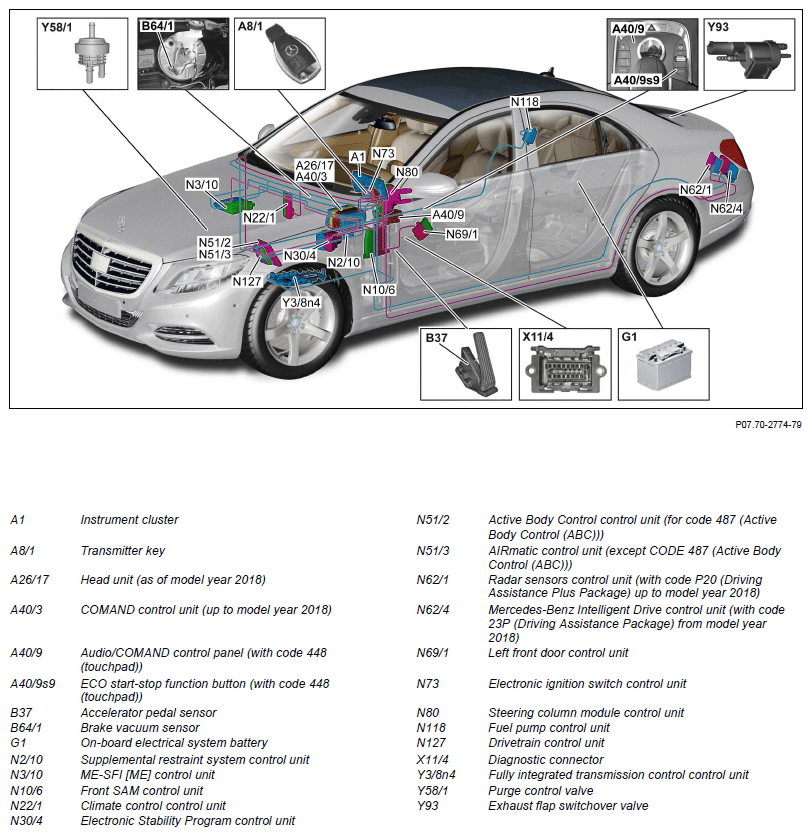

Shown on model 222 (except model 222.163/173)

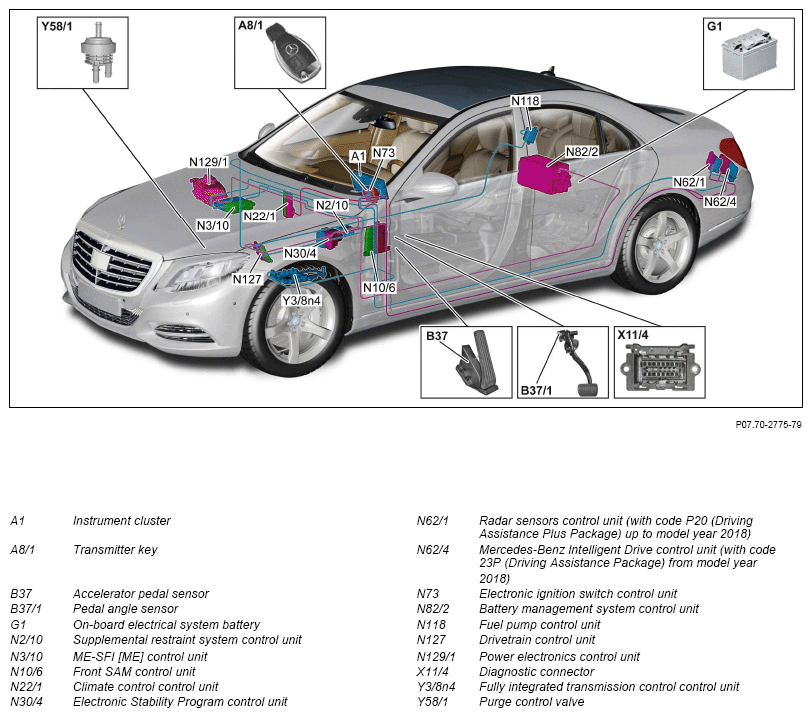

View of engine from front left (model 222.163/173)

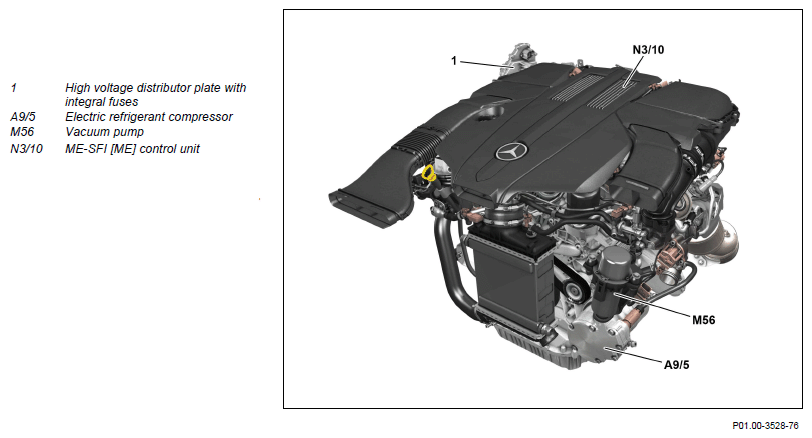

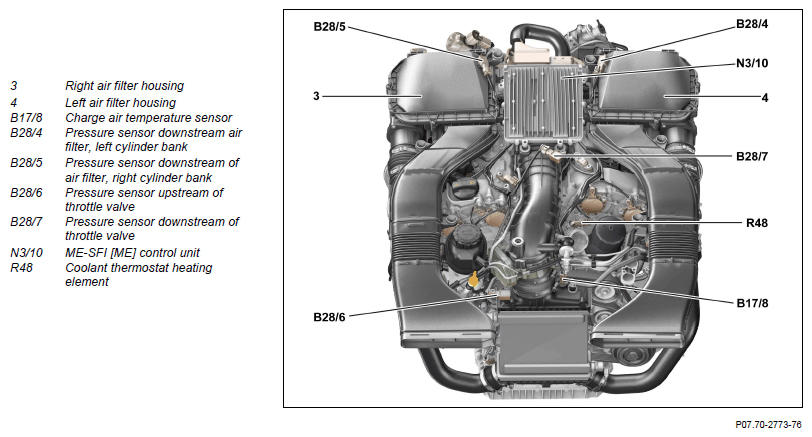

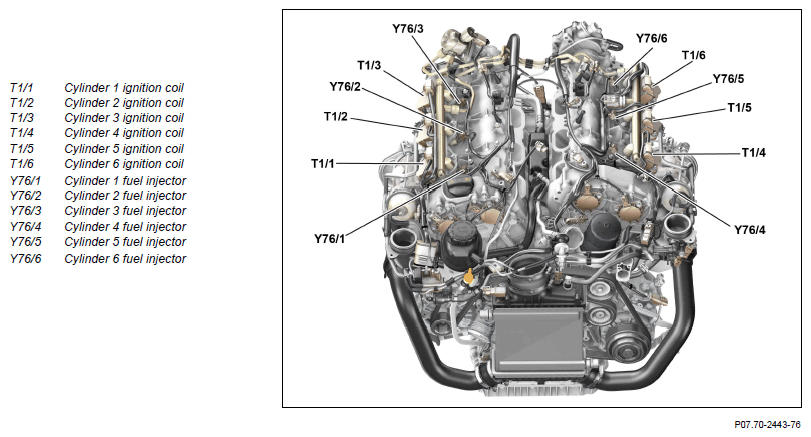

Top front view of engine (except model 222.163/173)
Top front view of engine (except model 222.163/173)
Top front view of engine (except model 222.163/173)

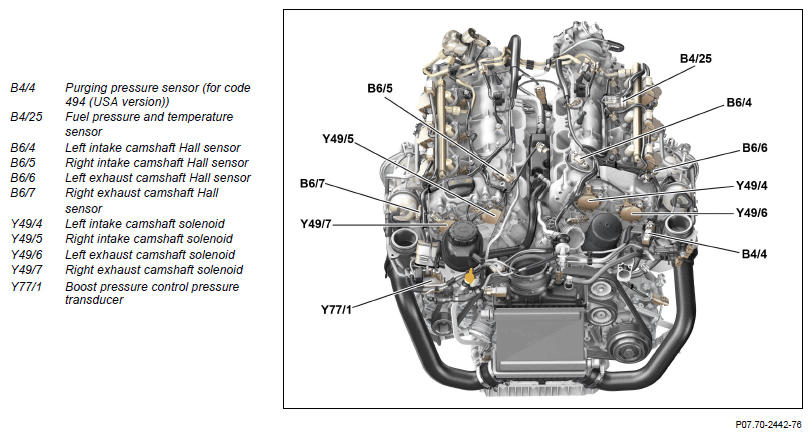

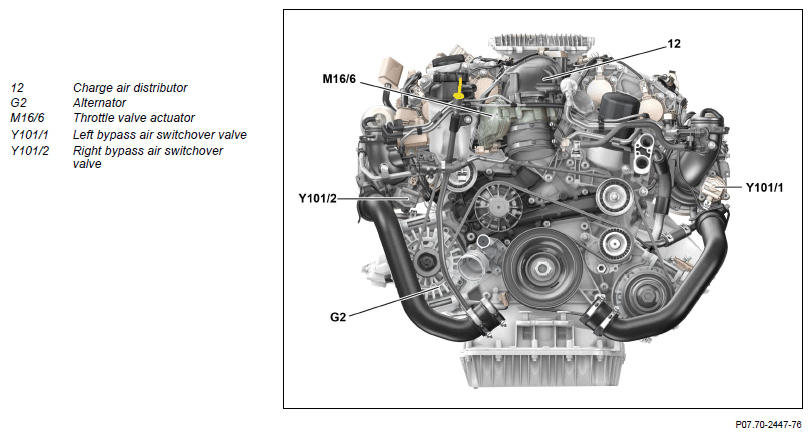

Front view of engine (except model 222.163/173)

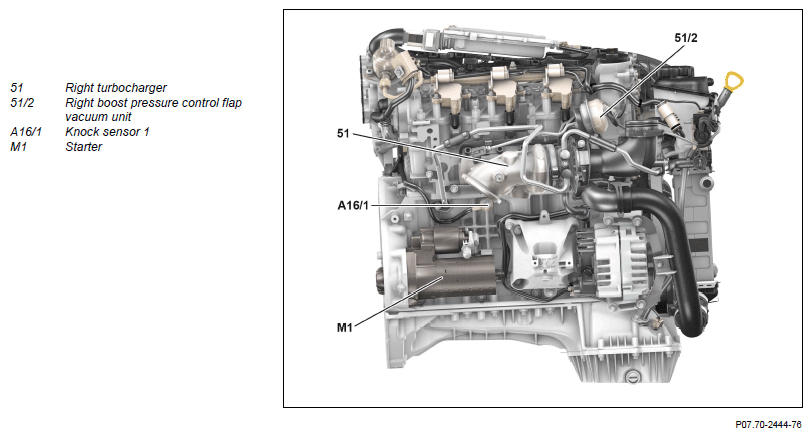

Right view of engine (except model 222.163/173)

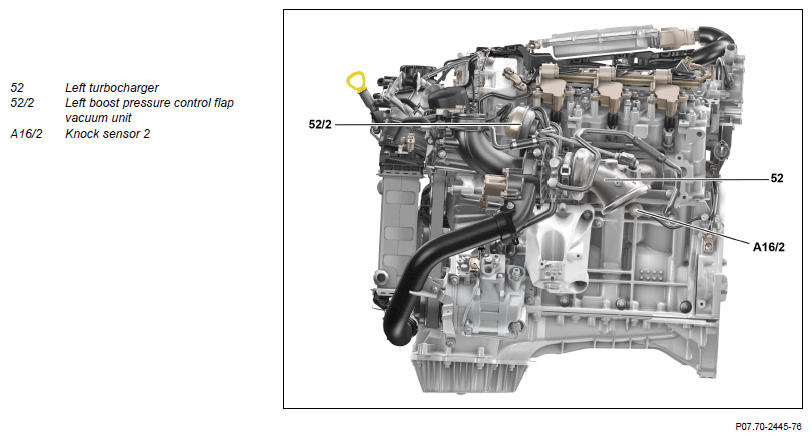

Left view of engine (except model 222.163/173)

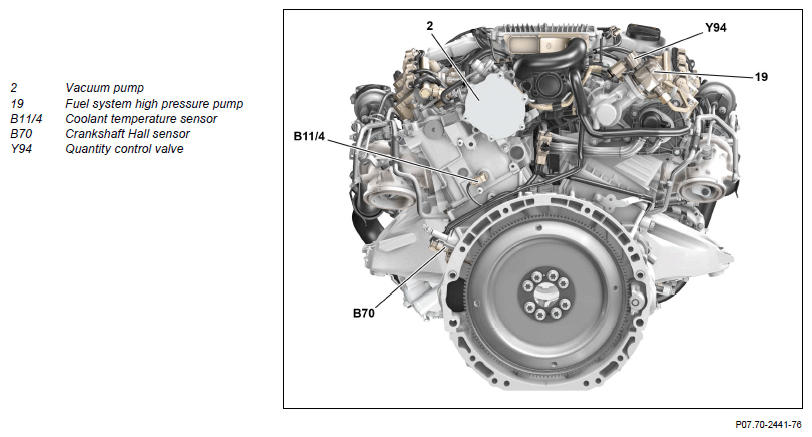

Rear view of engine (except model 222.163/173)

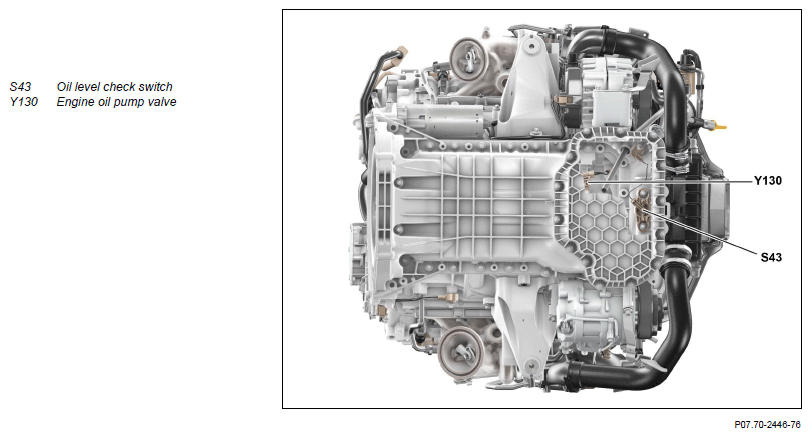

Bottom view of engine (except model 222.163/173)

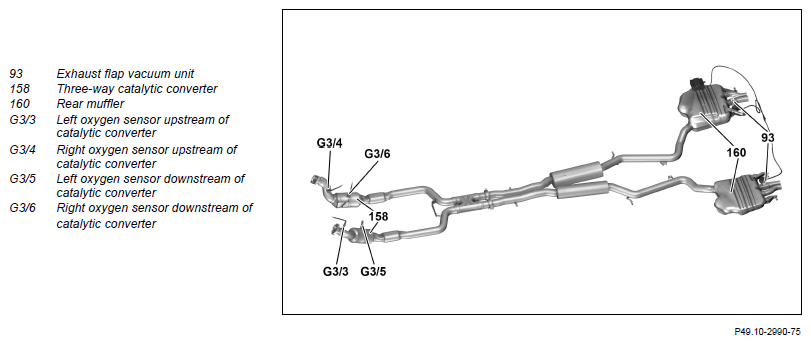

Shown: Exhaust system (model 222)

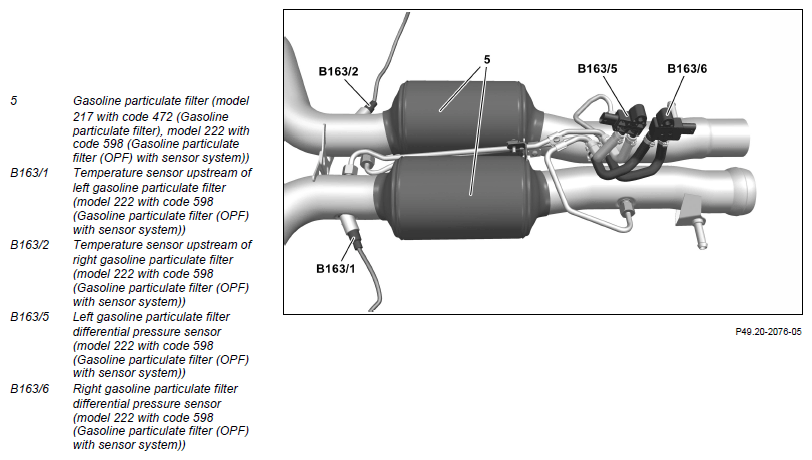

Gasoline particulate filter, shown on model 222 with code 598 (Gasoline particulate filter (OPF) with sensor system)

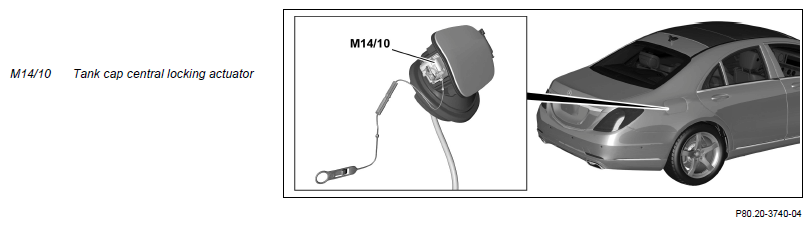

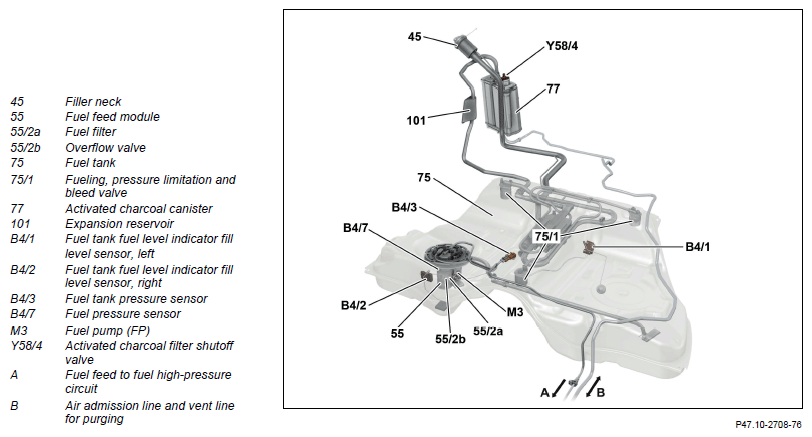

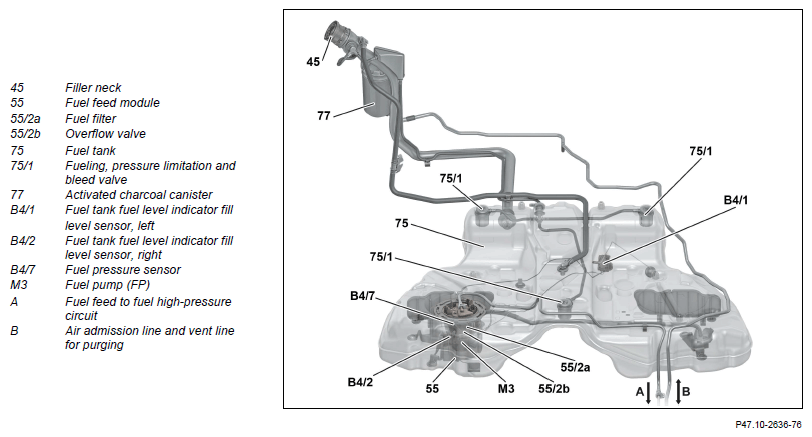

Phantom view of the fuel tank (except code 494 (USA version))

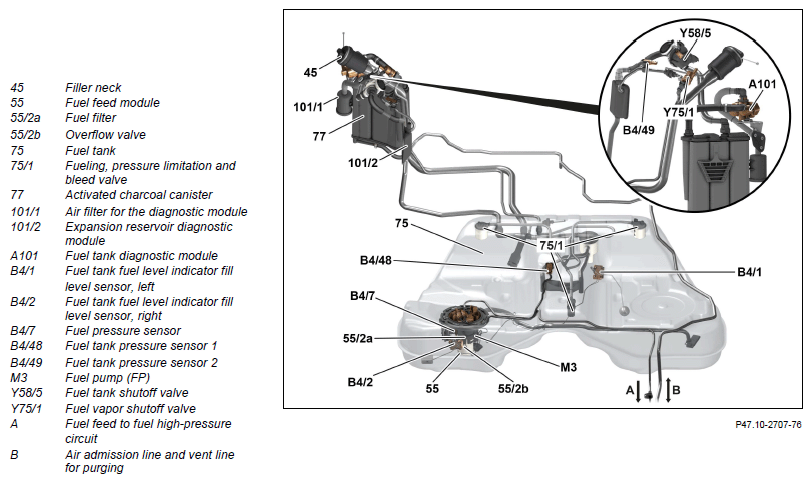

Phantom view of fuel tank (with code 494 (USA version) up to model year 2016 except model 222.163/173)

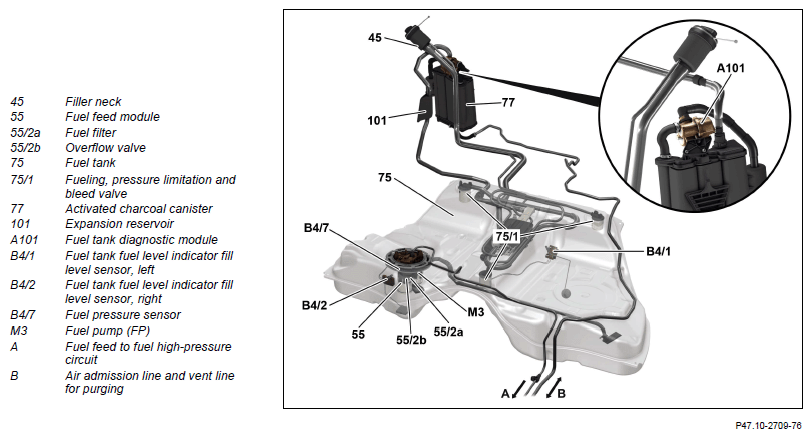

Phantom view of fuel tank (with code 494 (USA version) from model year 2016 except model 222.163/173)
Phantom view of fuel tank (model 222.163/173 with code 494 (USA version))

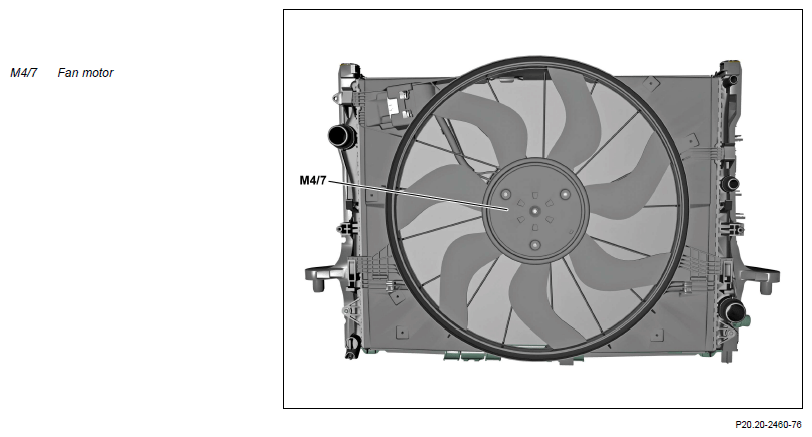

View of the radiator from the rear

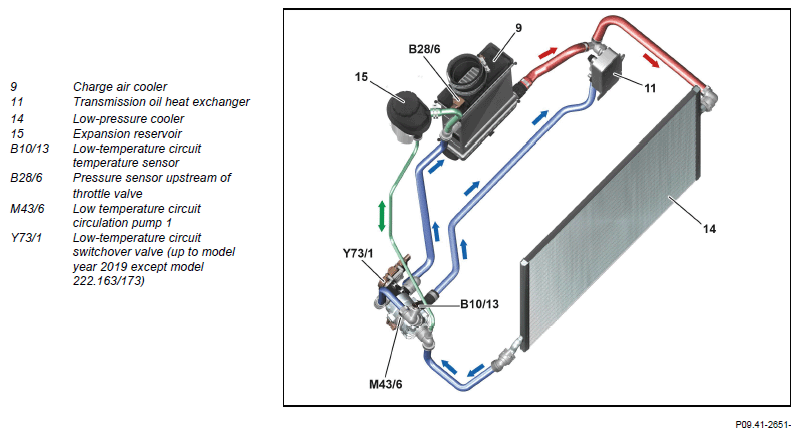

View of low-temperature circuit with charge air cooler

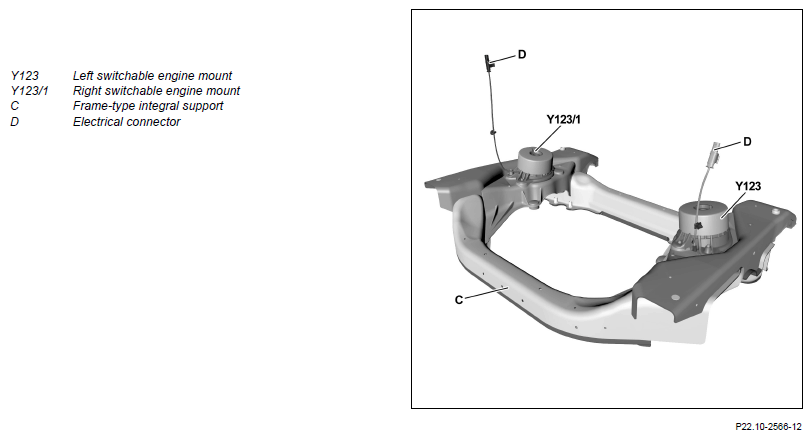

View of integral carrier

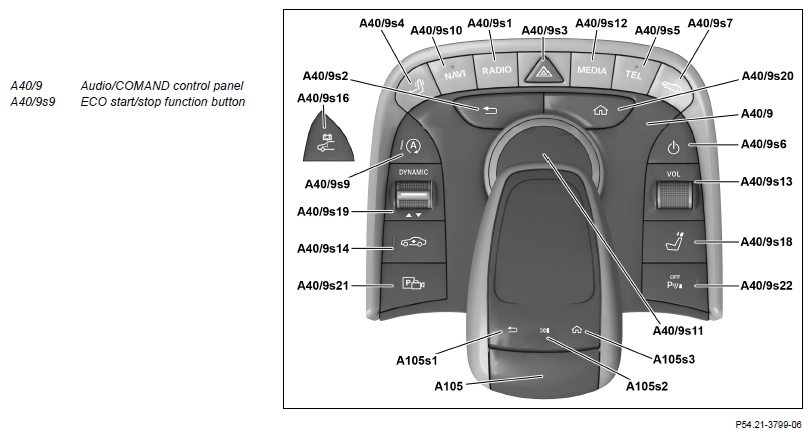

Shown: Operating unit in center console (with code 448 (Touchpad))

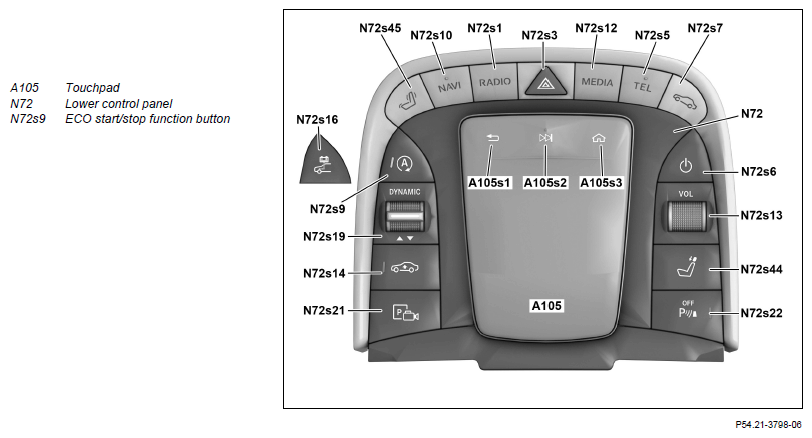

Shown: Operating unit in center console (with code 446 (Touchpad only))

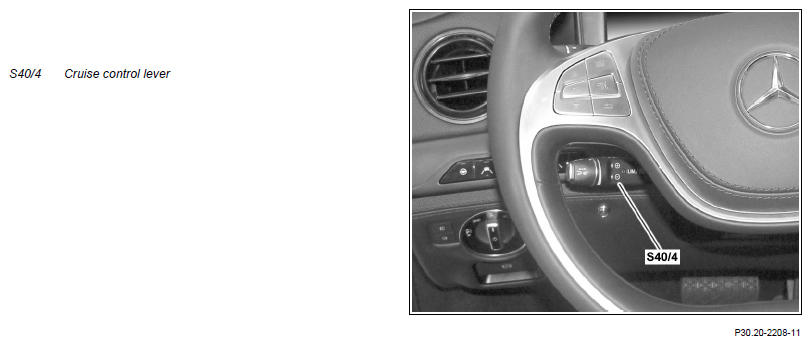

View of steering wheel

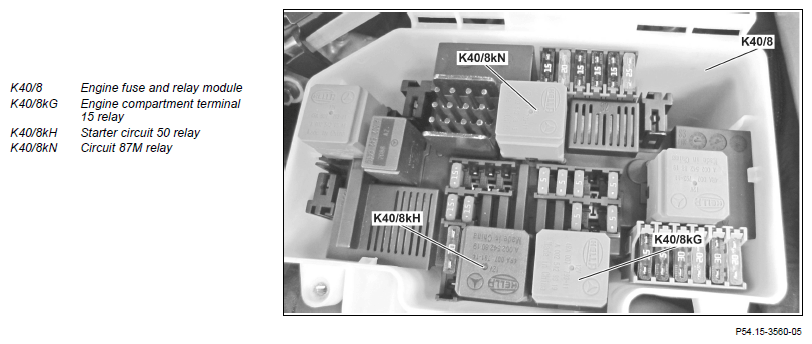

View of engine fuse and relay module in engine compartment at the rear left

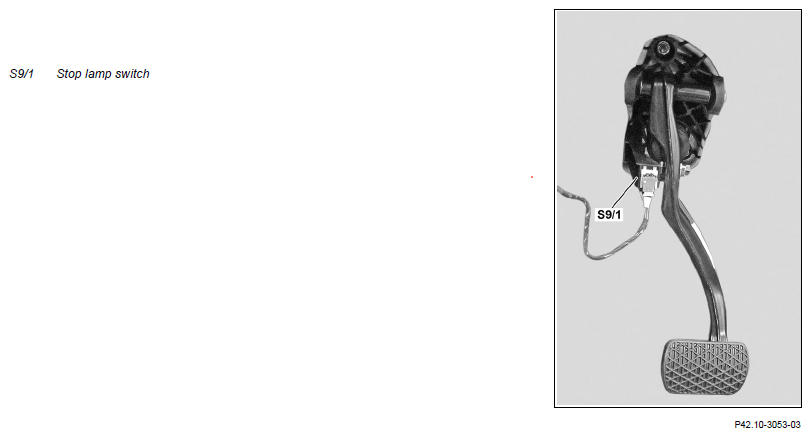

View of brake pedal (except model 222.163/173)
View of accelerator pedal module (model 222.163/173)
| Component description for instrument cluster | Engine 276.8 in model 217, 222 up to model year 2018 A1 | GF54.30-P-6000LF | |
| Engine 276.8 in model 217, 222 as of model year 2018 A1 | GF54.30-P-6000LFM | ||
| Head unit, component description | Engine 276.8 in model 217, 222 as of model year 2018 A26/17 | GF82.85-P-3140LFM | |
| Component description for COMAND controller unit | Engine 276.8 in model 217, 222 up to model year 2018 A40/3 | GF82.85-P-3136LF | |
| Component description for Audio/COMAND control panel | Engine 276.8 in model 217, 222 up to model year 2018 A40/9 | GF54.21-P-4501LF | |
| Engine 276.8 in model 217, 222 as of model year 2018 with code 448 (Touchpad) A40/9 | GF54.21-P-4501LFM | ||
| Touchpad, component description | Engine 276.8 in model 217, 222 with code 446 (Touchpad only) A105 | GF54.21-P-4511LF | |
| Accelerator pedal module control unit, component description | Engine 276.8 in model 222.163/173 B37n1 | GF07.08-P-2000MMK | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080LF | |
| Component description for ME-SFI (ME) control unit | N3/10 | GF07.61-P-6000MMT | |
| Component description for front SAM control unit | N10/6 | GF54.21-P-7010LF | |
| Climate control, control unit, component description | N22/1 | GF83.40-P-2250LF | |
| Component description for Electronic Stability Program control unit | Model 217, 222 (except 222.163) with engine 276.8 up to model year 2018 N30/4 | GF42.45-P-5119LF | |
| Model 222.163 with engine 276.8 up to model year 2018 N30/4 | GF42.45-P-5119LFH | ||
| Model 217, 222 (except 222.173) with engine 276.8 as of model year 2018 N30/4 | GF42.45-P-5119LFM | ||
| Model 222.173 with engine 276.8 as of model year 2018 N30/4 | GF42.45-P-5119LFA | ||
| ABC control unit, component description | Model 217, 222 with engine 276.8 with code 487 (MAGIC BODY CONTROL) N51/2 | GF32.50-P-4501LF | |
| AIRMATIC control unit, component description | N51/3 | GF32.22-P-5110LF | |
| Component description for radar sensors control unit | Model 217, 222 with engine 276.8 up to model year 2018 with code P20 (Driving Assistance package Plus) N62/1 | GF30.30-P-3301LF | |
| Mercedes-Benz Intelligent Drive control unit, component description | Model 217, 222 with engine 276.8 as of model year 2018 with code 23P (Driving Assistance package) N62/4 | GF30.30-P-3312LFM | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001LF | |
| Lower control panel, component description | Model 217, 222 with engine 276.8 with code 446 (Touchpad only) N72 | GF54.25-P-4270LFM | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001LF | |
| Component description for steering column tube module control unit | Engine 276.8 in model 217, 222 up to model year 2018 N80 | GF54.21-P-6051LF | |
| Engine 276.8 in model 217, 222 as of model year 2018 N80 | GF54.21-P-6051LFM | ||
| Component description for battery management system control unit | Model 222.163/173 with engine 276.8 N82/2 | GF54.10-P-3012LFH | |
| Component description for fuel pump control unit | N118 | GF47.40-P-2001MMK | |
| Drivetrain control unit, component description | Engine 276.8 in model 217, 222 (except 222.163/173) N127 | GF54.21-P-2141LF | |
| Engine 276.8 in model 222.163/173 N127 | GF54.21-P-2141MMK | ||
| Component description for power electronics control unit | Model 222.163/173 with engine 276.8 N129/1 | GF08.20-P-1001LFH | |
| Component description for fully integrated transmission control unit | Transmission 722.9 in model 217, 222 with engine 276.8 Y38n4 | GF27.60-P-5165AHB | |
| Transmission 724.2 in model 222.163 with engine 276.8 up to model year 2018 Y38n4 | GF27.60-P-5165LFH | ||
| Transmission 725.017 in model 222.173 with engine 276.8 Y38n4 | GF27.60-P-5165ANP | ||
| Table of contents for function description of gasoline injection and ignition system with direct injection | GF07.70-P-0998MMK |
