Power Flow In 7th Gear, Function - GF27.10-P-3026AHG
TRANSMISSION 722.9 in MODEL 463 as of model year 2013
Function requirements for power flow in 7th gear, general
- Circuit 87 ON
- Circuit 61 (engine running)

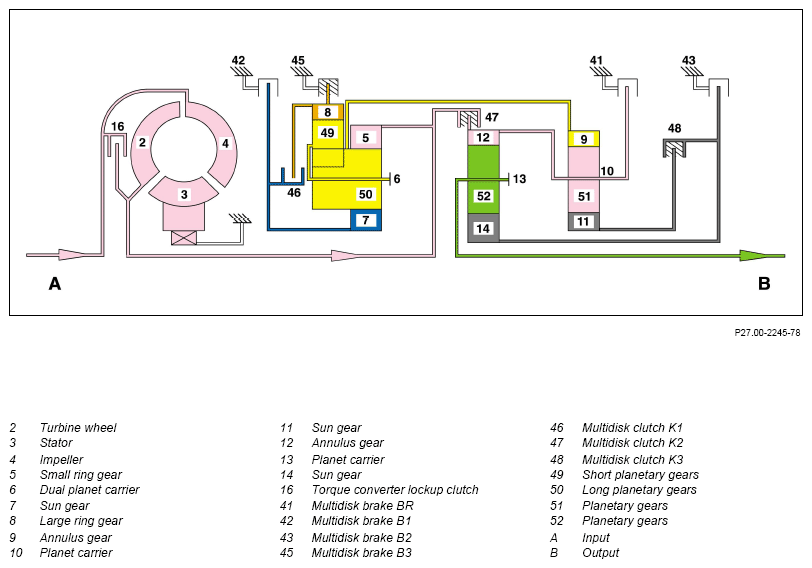

Power flow in 7th gear, general
The following multidisk brakes and multidisk clutches are engaged:
- Multidisk brake B3 (45)
- Multidisk clutch K2 (47)
- Multidisk clutch K3 (48)
In 7th gear, the power flows through the following gear sets:
- Ravigneaux gear set
- Rear single planetary gear set
- Front single planetary gear set
Ravigneaux gear set
The small ring gear (5) is driven via the transmission input shaft. The long planetary gears (50) drive the short planetary gears (49) which roll in the stalled large ring gear (8). The increased torque and reduced rotational speed as a result are transmitted to the dual planet carrier (6).
Rear single planetary gear set
The ring gear (9) rotates at the same speed due to the mechanical connection to the dual planet carrier (6). The planetary gears (51) transmit the rotary motion to the sun gear (11). Sun gear (11) passes on the rotational speed to sun gear (14) via the closed multidisk clutch K3 (48).
Front single planetary gear set
The transmission input torque and transmission input speed are transmitted to the ring gear (12) by the closed multidisk clutch K2 (47). The speed difference between the sun gear (14) and ring gear (12) results in a speed increase and torque reduction. These are passed on via the planet carrier (13) to the transmission output shaft. The transmission output shaft thus rotates with reduced transmission input speed in the direction of rotation of the engine.
