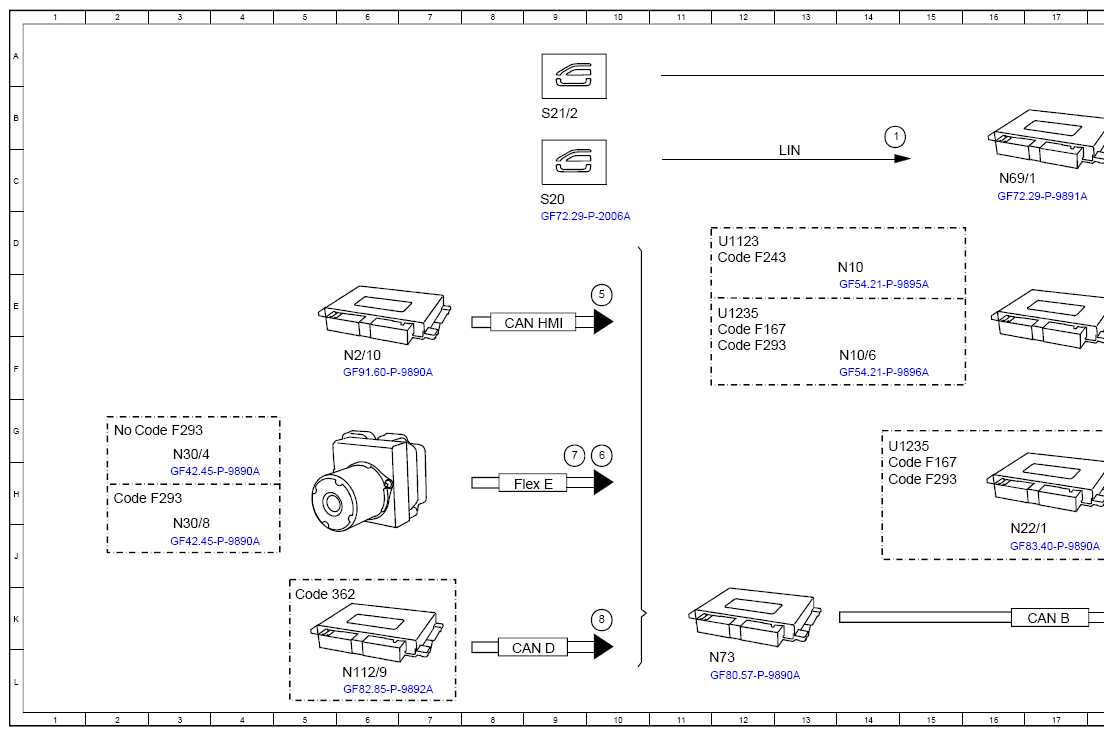

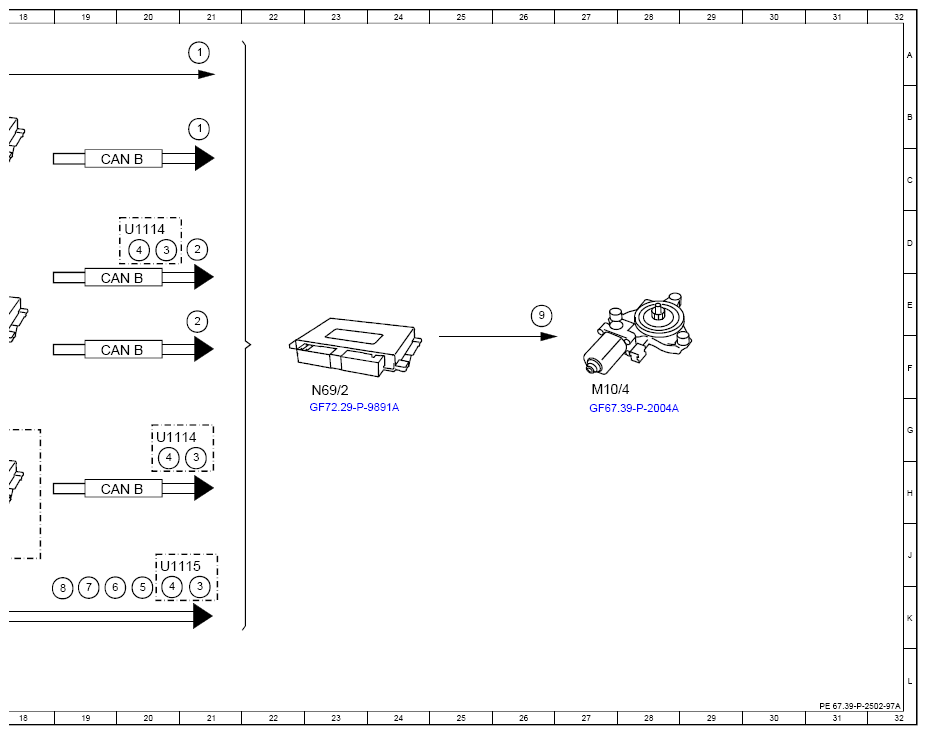

Function Schematic For Actuation Of Front Passenger Side Power Window Assembly - PE67.39-P-2502-97A
Model 118, 167, 177, 243, 247, 293
Model 213, 238, 257, 290 as of model year 2021
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Right front power window assembly switch, status | 21C |
| 1 | Right front power window assembly switch, status | 14B |
| 1 | Right front power window assembly switch, status | 21A |
| 2 | Rain closing, request | 21E |
| 2 | Rain closing, request | 21D |
| 3 | Convenience feature, status | 21H |
| 3 | Convenience feature, status | 21K |
| 3 | Convenience feature, status | 20D |
| 4 | Convenience feature direction, signal | 21K |
| 4 | Convenience feature direction, signal | 20H |
| 4 | Convenience feature direction, signal | 20D |
| 5 | Crash, signal | 10E |
| 5 | Crash, signal | 20K |
| 6 | PRE-SAFE®, status | 10G |
| 6 | PRE-SAFE®, status | 20K |
| 7 | Adjust PRE-SAFE®, request | 20K |
| 7 | Adjust PRE-SAFE®, request | 9G |
| 8 | Window lifter remote control, request | 10K |
| 8 | Window lifter remote control, request | 19K |
| 9 | Power window motor, actuation | 26E |
| CAN B | Interior CAN | 17K |
| CAN B | Interior CAN | 19F |
| CAN B | Interior CAN | 19H |
| CAN B | Interior CAN | 19C |
| CAN B | Interior CAN | 19E |
| CAN D | Diagnostic CAN | 9L |
| CAN HMI | User interface CAN | 8E |
| Code 362 | HERMES LTE | 5K |
| Code F167 | Model series 167 | 12E |
| Code F167 | Model series 167 | 14H |
| Code F243 | MODEL SERIES 243 | 12D |
| Code F293 | Model series 293 | 2G |
| Code F293 | Model series 293 | 2H |
| Code F293 | Model series 293 | 12F |
| Code F293 | Model series 293 | 14H |
| Flex E | Chassis FlexRay | 8H |
| LIN | Local Interconnect Network | 13C |
| M10/4 | Front passenger door power window motor | 27F |
| N10 | Signal acquisition and actuation module | 14D |
| N10/6 | Front SAM control unit | 14F |
| N112/9 | HERMES control unit | 6L |
| N2/10 | Supplemental restraint system control unit | 6F |
| N22/1 | Climate control control unit | 16J |
| N30/4 | Electronic Stability Program control unit | 3G |
| N30/8 | Regenerative braking system control unit | 3J |
| N69/1 | Driver door control unit | 16C |
| N69/2 | Front passenger door control unit | 23F |
| N73 | Electronic ignition switch control unit | 12L |
| S20 | Power window and outside mirror adjustment button group, driver's side | 9C |
| S21/2 | Passenger-side power window switch | 9B |
| U1114 | Valid for convenience feature via air recirculation button | 20G |
| U1114 | Valid for convenience feature via air recirculation button | 20D |
| U1115 | Valid for convenience feature via central locking system | 20J |
| U1123 | Valid for model 118, 177, 247 | 12D |
| U1235 | Valid for model 213, 238, 257, 290 | 12E |
| U1235 | Valid for model 213, 238, 257, 290 | 14G |
