Remove/Install Restraint Systems Control Unit - AR91.60-P-0624FR
Model 257
Model 290
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical component parts to temperatures above 100°C or 212°F. Disconnect current supply when working on such component parts. | AS91.00-Z-0008-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A | ||
| Remove/install | |||
| 1 | Carry out commissioning of SRS control unit (N2/10). | When replacing supplemental restraint system control unit (N2/10). | |
| AD00.00-P-2000-06FR | |||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 3 | Disconnect ground line from battery. | AR54.10-P-0003FR | |
| 4 | Remove head unit. | AR82.85-P-1101FR | |
| 5 | Remove foam parts above Supplemental Restraint System control unit (N2/10). | ||

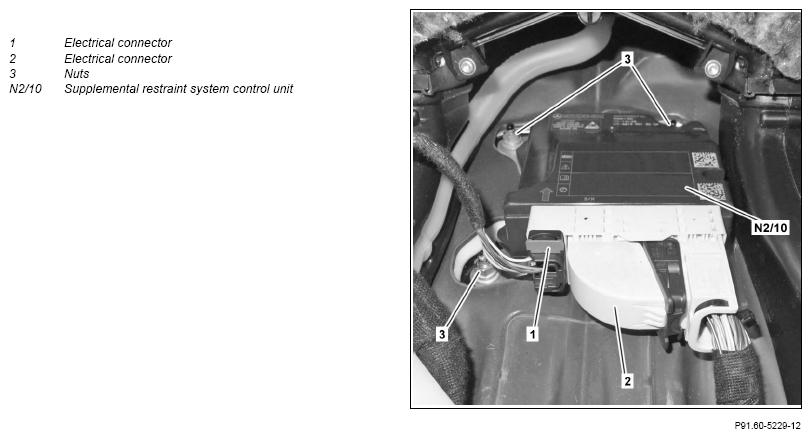

| 6 | Disconnect electrical connectors (1, 2). | ||
| 7 | Unscrew nuts (3). | *BA91.60-P-1007-01O | |
| 8 | Remove SRS control unit (N2/10). | ||
| 9 | Install in the reverse order. |
AIRBAG
| Number | Designation | Model 257 | Model 290 | |
|---|---|---|---|---|
| BA91.60-P-1007-01O | Restraint system control unit to vehicle floor | Nm | 10 | 10 |
