Remove/install left fuel pressure sensor - AR07.04-P-0201MNA
ENGINE 176 in MODEL 463
ENGINE 177 in MODEL 205
| Risk of explosion caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel. | No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel. |
AS47.00-Z-0001-01A | |
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| General information on work on gasoline direct injection system | AH07.00-P-2000-01A | ||
| Remove | |||
| 1 | Remove left-hand air filter housing | AR09.10-P-1150MNA | |

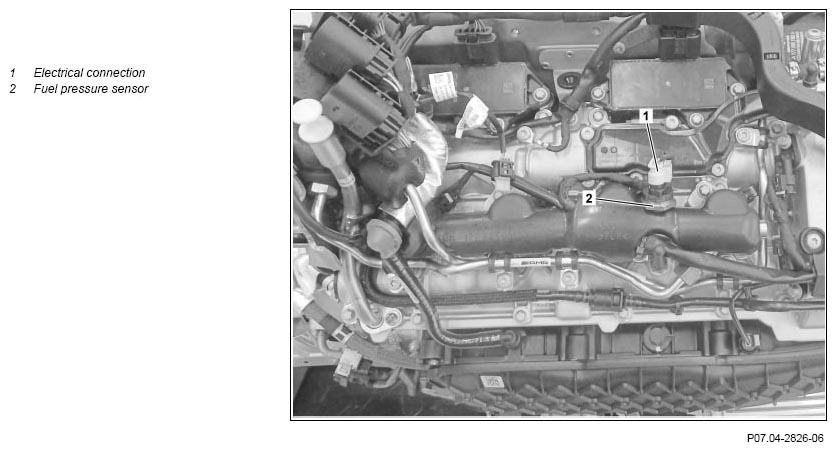

| 2 | Release and disconnect electrical connection (1) on left fuel pressure sensor (/2) | ||
| Clean | |||
| 3 | Clean rail in the area of the left fuel pressure sensor (2) | Assembly cleaner | *BR00.45-Z-1028-04A |
| 4 | Unscrew left fuel pressure sensor (2) from left rail and remove | ||
| Install | |||
| 5 | Screw left fuel pressure sensor (2) into left rail | *BA07.52-P-1002-01J | |
| 6 | Connect and lock electrical connection (1) on left fuel pressure sensor (2) | ||
| 7 | Install left-hand air filter housing | AR09.10-P-1150MNA | |
| 8 | Connect diagnostic system and read out fault memory; delete if necessary | ||
| Engine 176 in model 463 | AD00.00-P-2000-04A | ||
| Engine 177 in model 205 | AD00.00-P-2000-04B | ||
| 9 | Check fuel system for leaktightness | AR07.03-P-1010-04MM | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 10 | Perform an engine test run and check engine for proper operation and leaktightness |
FUEL DISTRIBUTOR
| Number | Designation | Engine 176 | Engine 177.980 | |
|---|---|---|---|---|
| BA07.52-P-1002-01J | Pressure transducer to fuel distributor | Nm | 37 | 38 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1028-04A | Assembly cleaner | Adolf Wurth GmbH & Co. KG |
