Service Campaign 2020020022 - Update Powertrain Control Unit Software (P-SC-2020020022)
Publication date: 2020-03-06Reference number: P-SC-2020020022
Supersedes refnos: 2020020022
SERVICE CAMPAIGN 2020020022 - UPDATE POWERTRAIN CONTROL UNIT SOFTWARE
SERVICE CAMPAIGN BULLETIN
| MERCEDES-BENZ: | MY19 205 (C-Class) |
SERVICE INFORMATION
IMPORTANT SERVICE CAMPAIGN INFORMATION

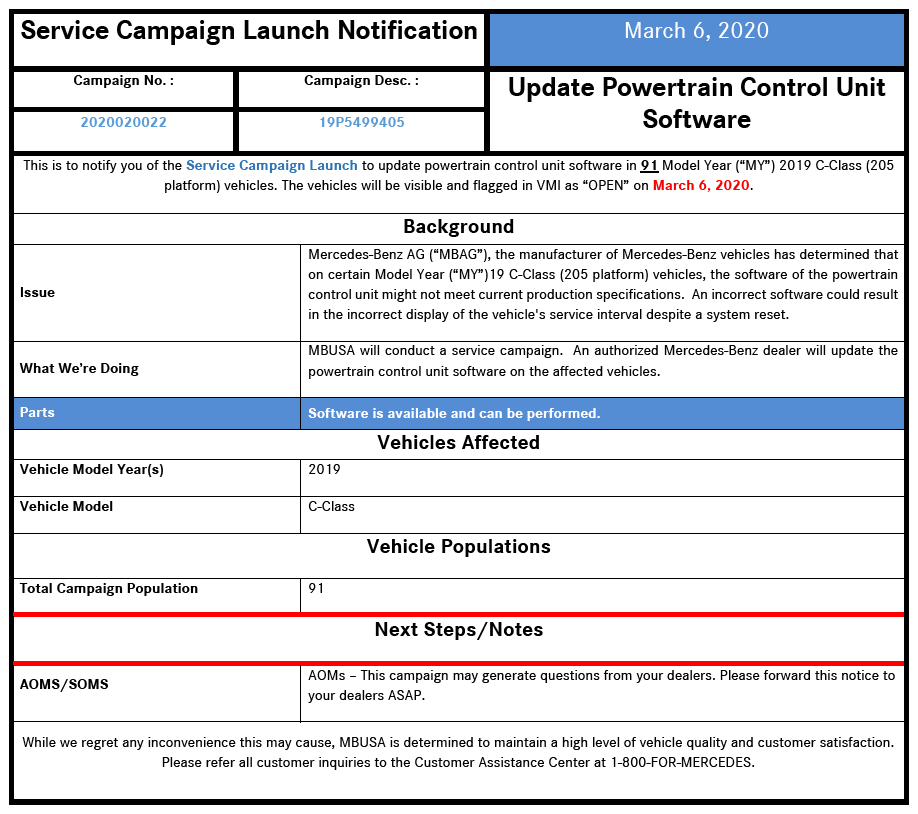

Please see the attached documents related to the campaign listed above.
Please note that all customer inquiries should be directed to the Customer Assistance Center at 1-800-FOR-M ERCEDES.
Sincerely,
Gregory Gunther
Department Manager, Vehicle Compliance & Analysis
TO: ALL MERCEDES-BENZ CENTERS
SUBJECT: MODEL C-CLASS (205 PLATFORM)
Model Year 2019
Mercedes-Benz AG ("MBAG"), the manufacturer of Mercedes-Benz vehicles has determined that on certain Model Year ("MY") 19 C-Class (205 platform) vehicles, the software of the powertrain control unit might not meet current production specifications. An incorrect software could result in the incorrect display of the vehicle's service interval despite a system reset. An authorized Mercedes-Benz dealer will update the powertrain control unit software on the affected vehicles.
Prior to performing this Campaign:
- Please check VMI to determine if the vehicle is involved in the Campaign and if it has been previously repaired. Always Check VMI for any open campaigns, and perform accordingly.
- VMI must always be checked before performing campaigns to verify that the campaign is required on a specific vehicle. Always check for any other open campaigns, and perform accordingly.
- Please review the entire Campaign bulletin and follow the repair procedure exactly as described.
Approximately 91 vehicle is affected.
Order No. P-SC-2020020022
This bulletin has been created and maintained in accordance with MBUSA-SLP S423QH001, Document and Data Control, and MBUSA-SLP S424HH001, Control of Quality Records.
- Use Xentry 09/19 with all associated patches or higher.
- Follow the steps exactly as described in Xentry.
- Connect battery charger (battery voltage >12.5V).
- Ensure all electrical consumers are switched-off.
- In the event of software/SCN update issues, contact Star Diagnosis User Help Desk via. XSF ticket.
- Refer to Star Diagnosis System (SDS) Best Practices Guide.
WORK PROCEDURE
- Connect XENTRY Diagnosis.
- Update software of powertrain (PTCU)
control unit.
To do this, select menu item "Quiektest view N127 → 'powertrain' control unit (PTCU) → Adaptations Control unit update → Update of control unit software".
Then follow the user guidance in XENTRY Diagnosis.
- Disconnect XENTRY Diagnosis.
WARRANTY INFORMATION
Operation: Connect/disconnect battery charger (02-5058)
Star Diagnosis System (SDS), Connect/disconnect (02-4762)
Update powertrain (PTCU) control unit (02-9334)
| Damage Code | Operation Number | Labor Time (hrs.) |
|---|---|---|
| 54 994 05 8 | 02-5058 | 0.1 |
| 02-4762 | 0.1 | |
| 02-9334 | 0.1 |
