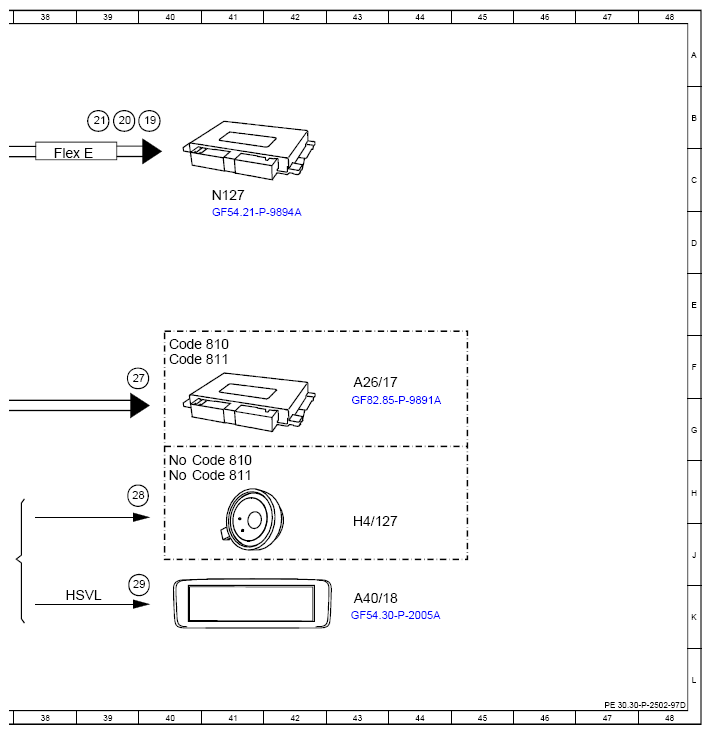

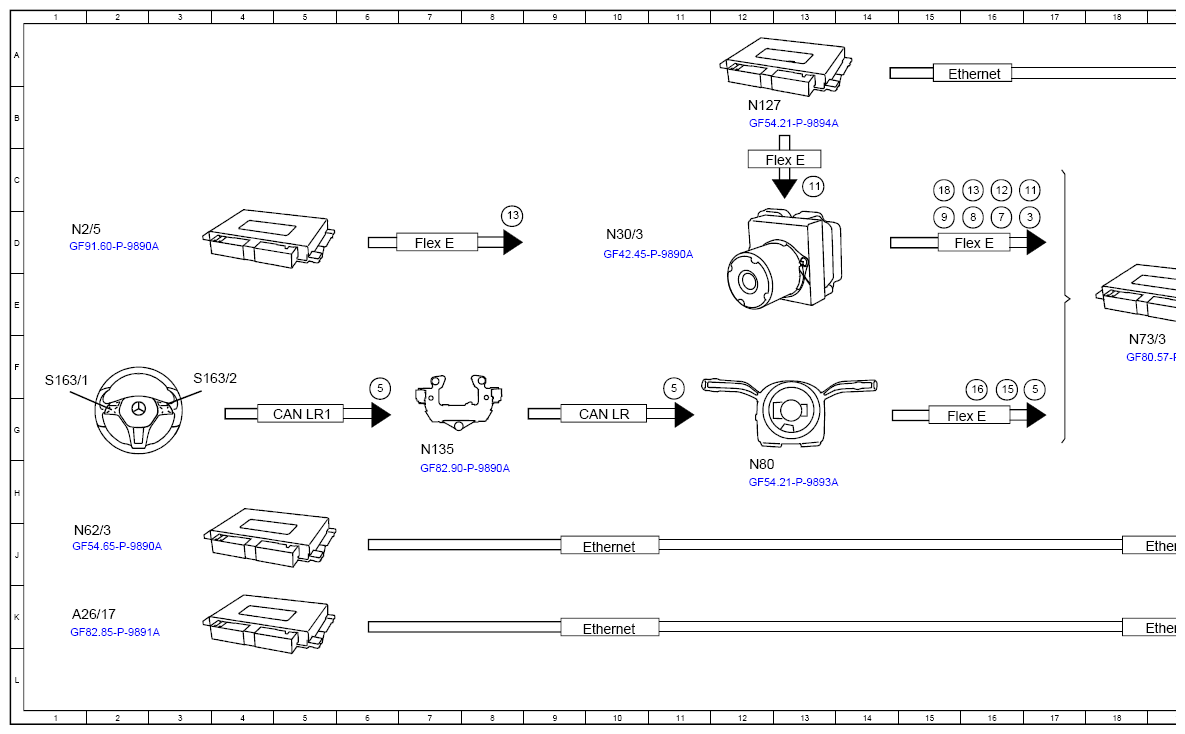

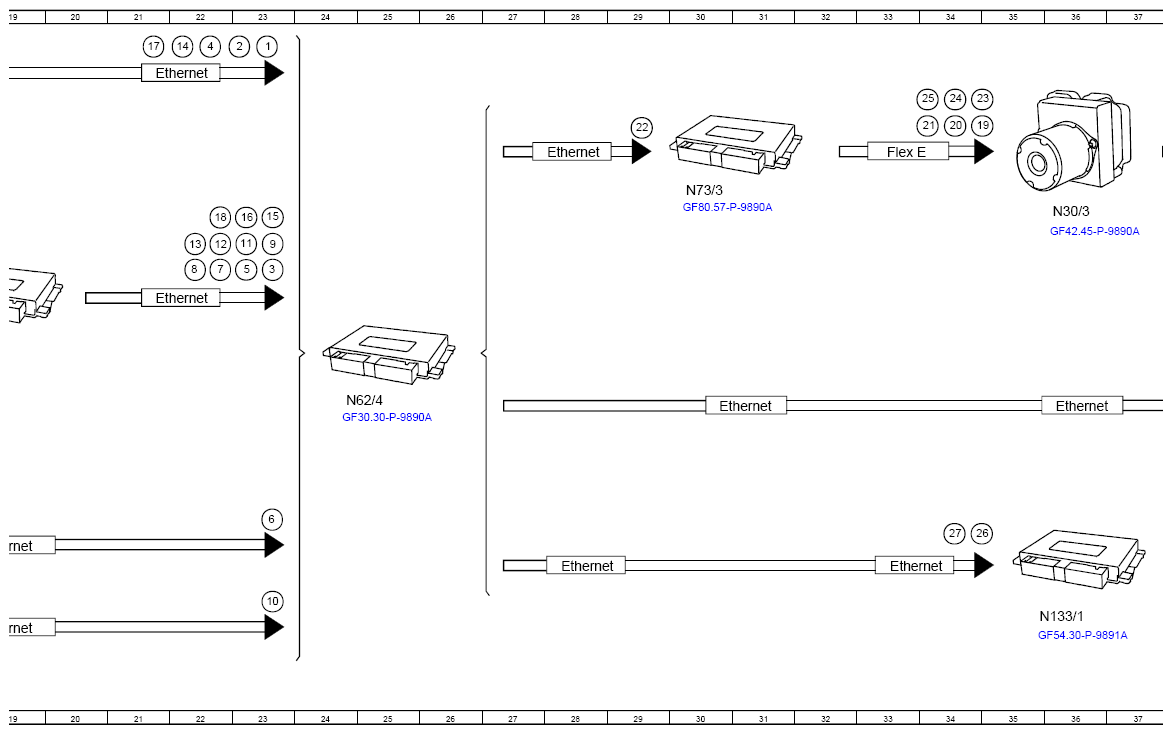

(Regulate Distance, Function Schematic - PE30.30-P-2502-97D)
Model 192, 206, 214, 232, 236, 254, 294, 295, 296
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine running, signal | 23A |
| 10 | Map data, signal | 23K |
| 11 | Available torque, signal | 17C |
| 11 | Available torque, signal | 13C |
| 11 | Available torque, signal | 23D |
| 12 | Braking torque, signal | 16C |
| 12 | Braking torque, signal | 22D |
| 13 | Speed, turn rate and lateral acceleration, signal | 16C |
| 13 | Speed, turn rate and lateral acceleration, signal | 22D |
| 13 | Speed, turn rate and lateral acceleration, signal | 8D |
| 14 | Transmission mode, signal | 22A |
| 15 | Steering wheel angle, signal | 16G |
| 15 | Steering wheel angle, signal | 23D |
| 16 | Combination switch, status | 23D |
| 16 | Combination switch, status | 16G |
| 17 | Accelerator pedal position, signal | 21A |
| 18 | Brake pedal position, signal | 15C |
| 18 | Brake pedal position, signal | 22D |
| 19 | Engine torque, reduce request | 34B |
| 19 | Engine torque, reduce request | 40B |
| 2 | Drivetrain operational, signal | 23A |
| 20 | Engine torque, increase request | 34B |
| 20 | Engine torque, increase request | 39B |
| 21 | Engage targeted gear, request | 34B |
| 21 | Engage targeted gear, request | 39B |
| 22 | Yaw rate, longitudinal and lateral acceleration, signal | 29B |
| 23 | Braking torque increase, request | 35B |
| 24 | Braking torque reduction, request | 34B |
| 25 | Traction system hydraulic unit, actuation | 34B |
| 26 | Instrument cluster message, request | 35J |
| 27 | Warning message issue, request | 34J |
| 27 | Warning message issue, request | 40F |
| 28 | Speaker, actuation | 39H |
| 29 | Image data, signal | 40K |
| 3 | Parking brake, status | 17D |
| 3 | Parking brake, status | 23E |
| 4 | Transmission position, signal | 22A |
| 5 | Operation, signal | 23E |
| 5 | Operation, signal | 17G |
| 5 | Operation, signal | 11G |
| 5 | Operation, signal | 6G |
| 6 | Active Parking Assist, status | 23H |
| 7 | Wheel speed, signal | 16D |
| 7 | Wheel speed, signal | 22E |
| 8 | Wheel rotation direction, signal | 16D |
| 8 | Wheel rotation direction, signal | 22E |
| 9 | ESP®, status | 15D |
| 9 | ESP®, status | 23D |
| A26/17 | Head unit | 1K |
| A26/17 | Head unit | 43F |
| A40/18 | Instrument cluster display | 43K |
| CAN LR | CAN for steering wheel | 10G |
| CAN LR1 | CAN for steering wheel gearshift buttons | 5G |
| Code 810 | Premium sound system | 40H |
| Code 810 | Premium sound system | 40F |
| Code 811 | High-End sound system | 40H |
| Code 811 | High-End sound system | 40F |
| Ethernet | Ethernet | 16A |
| Ethernet | Ethernet | 19K |
| Ethernet | Ethernet | 10K |
| Ethernet | Ethernet | 19J |
| Ethernet | Ethernet | 10J |
| Ethernet | Ethernet | 33J |
| Ethernet | Ethernet | 28C |
| Ethernet | Ethernet | 21E |
| Ethernet | Ethernet | 21A |
| Ethernet | Ethernet | 28J |
| Ethernet | Ethernet | 36G |
| Ethernet | Ethernet | 31G |
| Flex E | Chassis FlexRay | 15G |
| Flex E | Chassis FlexRay | 16D |
| Flex E | Chassis FlexRay | 33C |
| Flex E | Chassis FlexRay | 13C |
| Flex E | Chassis FlexRay | 7D |
| Flex E | Chassis FlexRay | 38C |
| H4/127 | Instrument panel mid-range speaker | 43J |
| HSVL | High-speed video link | 39K |
| N127 | Drivetrain control unit | 12B |
| N127 | Drivetrain control unit | 41C |
| N133/1 | Instrument cluster control unit | 36K |
| N135 | Steering wheel electronics | 7G |
| N2/5 | Supplemental restraint system control unit | 1D |
| N30/3 | Electronic Stability Program control unit | 10D |
| N30/3 | Electronic Stability Program control unit | 36D |
| N62/3 | Parking system control unit | 1J |
| N62/4 | Driver assistance systems control unit | 24G |
| N73/3 | Electronic ignition switch control unit | 30C |
| N73/3 | Electronic ignition switch control unit | 18F |
| N80 | Steering column module control unit | 12H |
| S163/1 | Multifunction steering wheel button group 1 | 1F |
| S163/2 | Multifunction steering wheel button group 2 | 3F |
