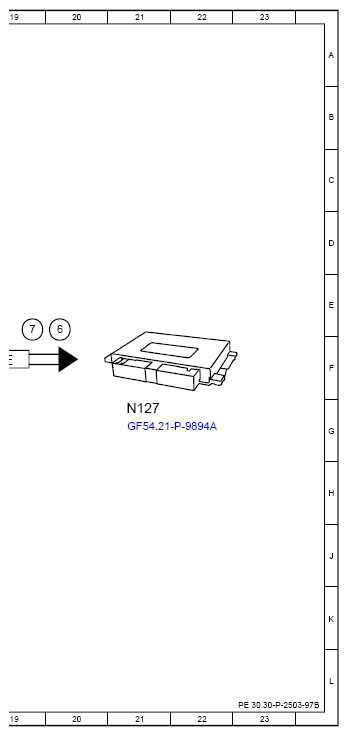

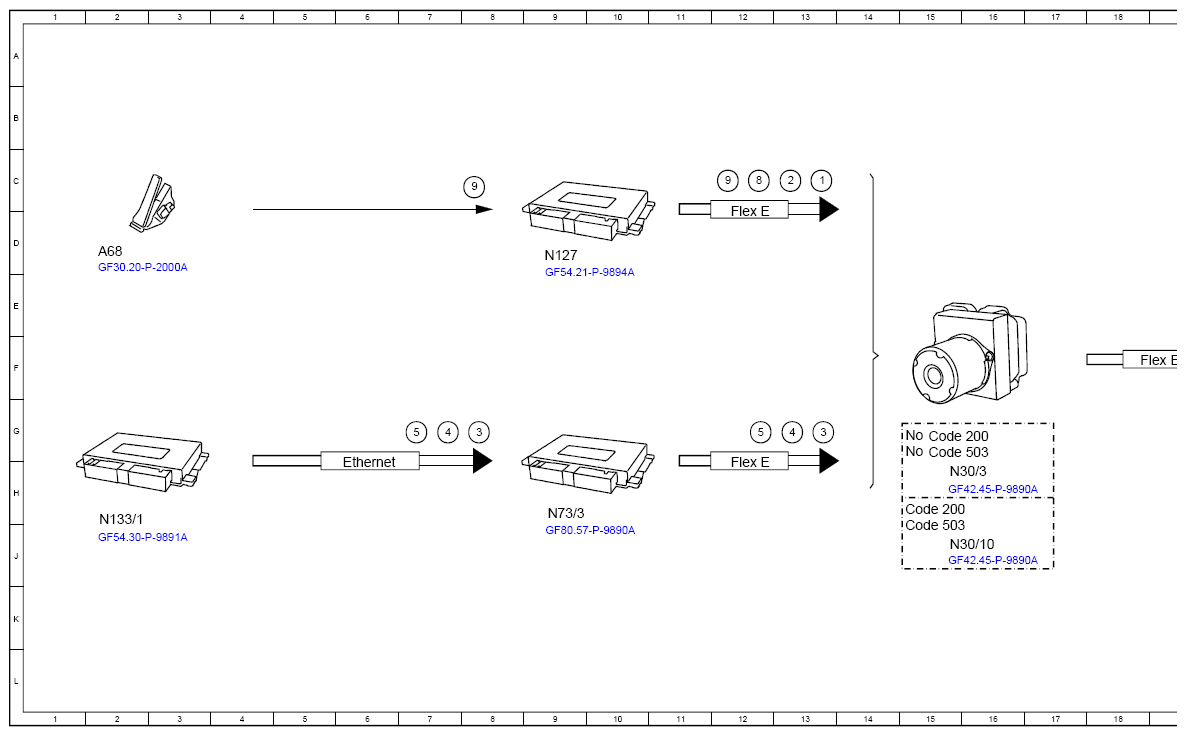

(Limit Speed, Function Schematic - PE30.30-P-2503-97B)
Model 223, 297
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine running, signal | 13C |
| 2 | Drivetrain operational, signal | 13C |
| 3 | Speed limit, signal | 13G |
| 3 | Speed limit, signal | 8G |
| 4 | Variable speed limiter, signal | 13G |
| 4 | Variable speed limiter, signal | 8G |
| 5 | Permanent speed limiter, signal | 12G |
| 5 | Permanent speed limiter, signal | 7G |
| 6 | Engine torque, reduce request | 20F |
| 7 | Engage targeted gear, request | 19F |
| 8 | Engine speed, signal | 12C |
| 9 | Accelerator pedal position, signal | 12C |
| 9 | Accelerator pedal position, signal | 8C |
| A68 | Accelerator pedal module | 2D |
| Code 200 | Conditionally automated driving | 15H |
| Code 200 | Conditionally automated driving | 15G |
| Code 503 | Remote-controlled parking | 15G |
| Code 503 | Remote-controlled parking | 15J |
| Ethernet | Ethernet | 6H |
| Flex E | Chassis FlexRay | 12H |
| Flex E | Chassis FlexRay | 19F |
| Flex E | Chassis FlexRay | 12D |
| N127 | Drivetrain control unit | 9D |
| N127 | Drivetrain control unit | 21G |
| N133/1 | Instrument cluster control unit | 2H |
| N30/10 | Electronic Stability Program control unit | 16J |
| N30/3 | Electronic Stability Program control unit | 15H |
| N73/3 | Electronic ignition switch control unit | 9H |
