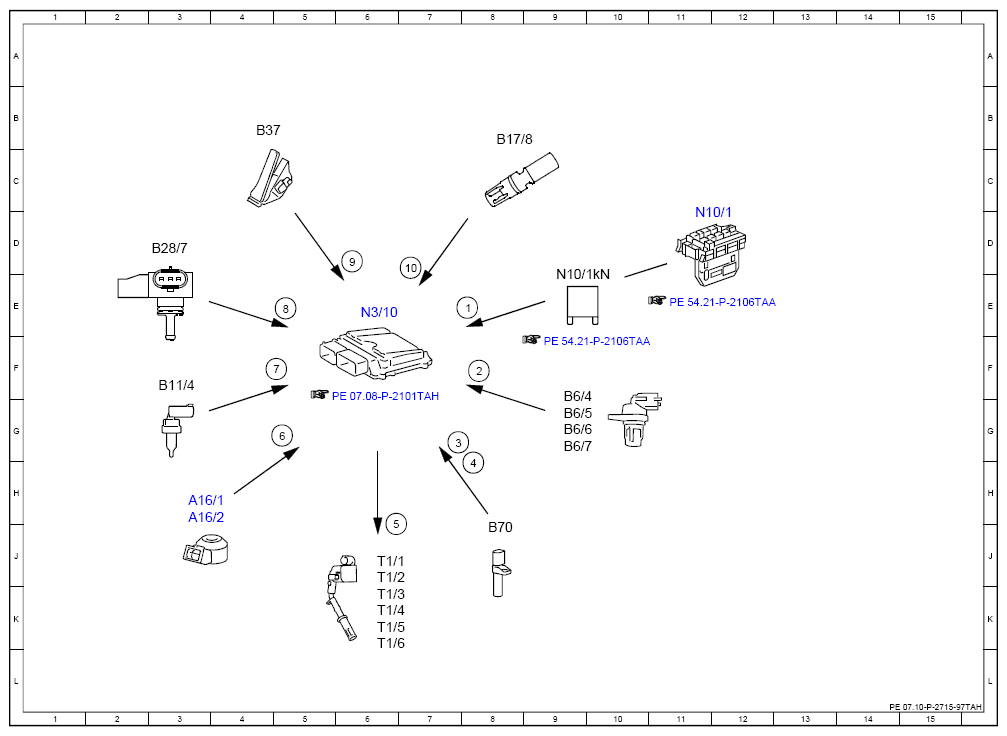

Electrical Function Schematic For Knock Control - PE07.10-P-2715-97TAH
Engine 276.8 in Model 172.4
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 87, status | 8E |
| 10 | Charge air temperature sensor, signal | 7D |
| 2 | Camshaft Hall sensor, signal | 8F |
| 3 | Engine speed, signal | 7G |
| 4 | Crankshaft Hall sensor, signal | 8H |
| 5 | Ignition coils, actuation | 6J |
| 6 | Knock sensor, signal | 5G |
| 7 | Coolant temperature, signal | 5F |
| 8 | Engine load, signal | 5E |
| 9 | Accelerator pedal sensor, signal | 6D |
| A16/1 | Right knock sensor | 3H |
| A16/2 | Left knock sensor | 3H |
| B11/4 | Coolant temperature sensor | 3F |
| B17/8 | Charge air temperature sensor | 8B |
| B28/7 | Pressure sensor downstream of throttle valve | 3D |
| B37 | Accelerator pedal sensor | 4B |
| B6/4 | Left intake camshaft Hall sensor | 9G |
| B6/5 | Right intake camshaft Hall sensor | 9G |
| B6/6 | Left exhaust camshaft Hall sensor | 9G |
| B6/7 | Right exhaust camshaft Hall sensor | 9G |
| B70 | Crankshaft Hall sensor | 8J |
| N10/1 | Front SAM control unit with fuse and relay module | 11D |
| N10/1kN | Engine circuit 87 relay | 9E |
| N3/10 | ME-SFI [ME] control unit | 6E |
| T1/1 | Cylinder 1 ignition coil | 6J |
| T1/2 | Cylinder 2 ignition coil | 6J |
| T1/3 | Cylinder 3 ignition coil | 6K |
| T1/4 | Cylinder 4 ignition coil | 6K |
| T1/5 | Cylinder 5 ignition coil | 6K |
| T1/6 | Cylinder 6 ignition coil | 6K |
