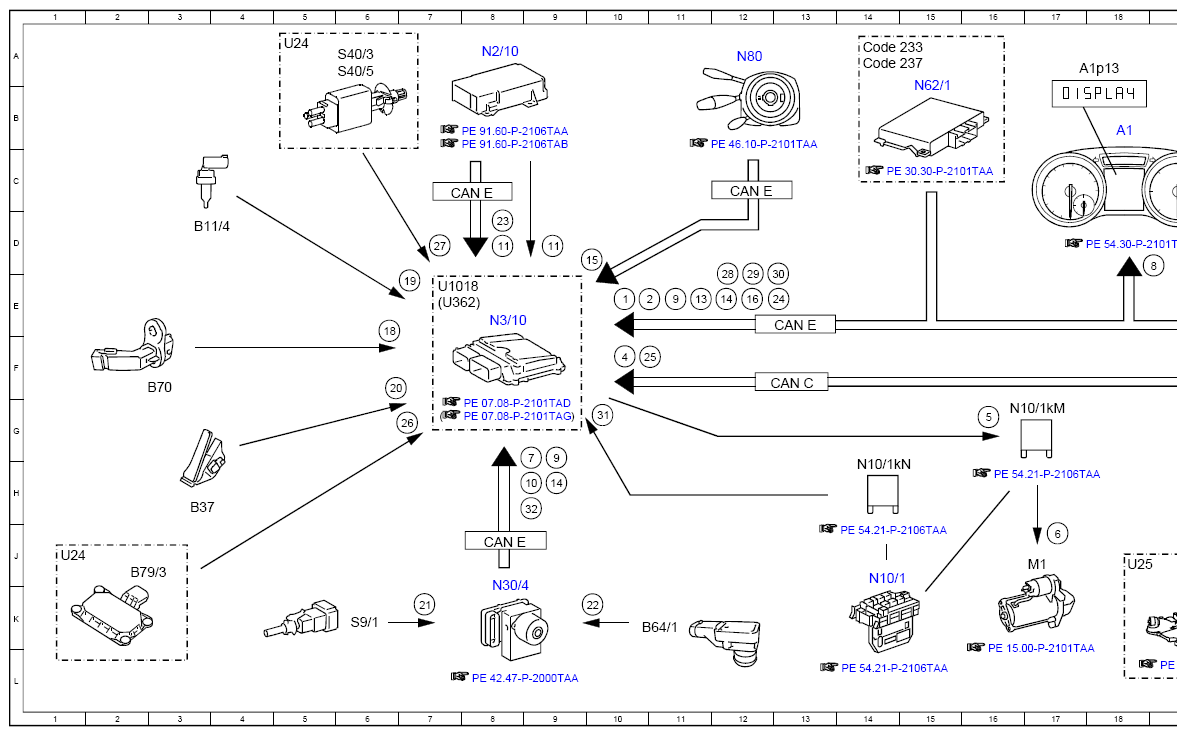

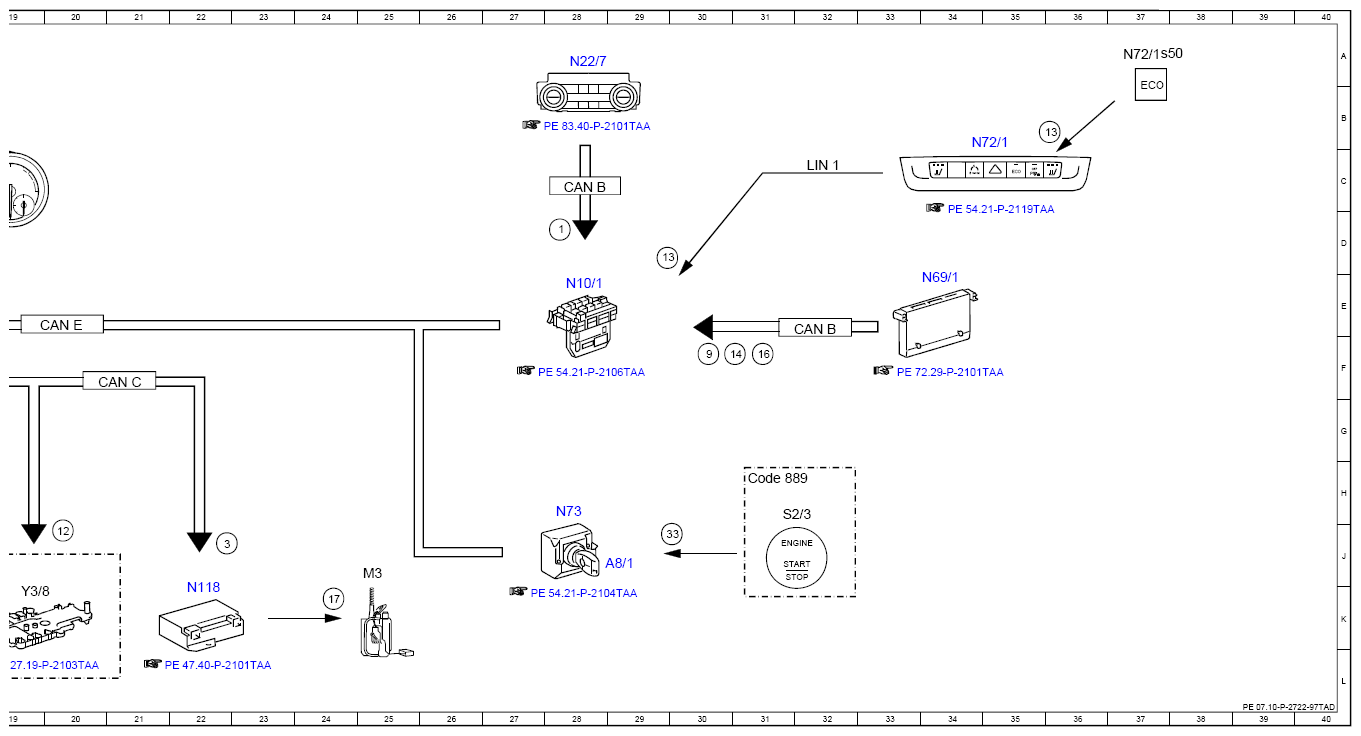

Electrical Function Schematic For Engine Timing Start Stop - PE07.10-P-2722-97TAD
Engine 276 in Model 172
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Air conditioning, status | 10E |
| 1 | Air conditioning, status | 28D |
| 10 | Engine stop enable, status | 9H |
| 11 | Crash, signal | 8D |
| 11 | Crash, signal | 9D |
| 12 | Gear range, request | 20J |
| 13 | ECO start/stop function button, status | 11E |
| 13 | ECO start/stop function button, status | 29D |
| 13 | ECO start/stop function button, status | 36B |
| 14 | Engine stop prohibited, request | 9H |
| 14 | Engine stop prohibited, request | 12E |
| 14 | Engine stop prohibited, request | 30F |
| 15 | Steering wheel angle sensor, signal | 10D |
| 16 | Door rotary tumbler switch, status | 12E |
| 16 | Door rotary tumbler switch, status | 31F |
| 17 | Fuel pump, actuation | 24K |
| 18 | Engine speed, signal | 6E |
| 19 | Coolant temperature, signal | 7E |
| 2 | Instrument cluster, message | 10E |
| 20 | Accelerator pedal sensor, signal | 6F |
| 21 | Brake light switch, signal | 7K |
| 22 | Brake vacuum sensor, signal | 10K |
| 23 | Seat belt buckle switch, status | 8D |
| 24 | Engine hood anti-theft alarm system switch, status | 13E |
| 25 | Gear range, status | 10F |
| 26 | Transmission neutral position sensor, signal | 7G |
| 27 | Clutch pedal switch, status | 7D |
| 28 | Engine hood contact switch, status | 12E |
| 29 | Engine torque, increase request | 12E |
| 3 | Fuel pump, specified pressure request | 22J |
| 30 | Engine torque, reduce request | 13E |
| 31 | Circuit 87, status | 10G |
| 32 | Wheel speed, signal | 9H |
| 33 | KEYLESS-GO start/stop button, status | 29J |
| 4 | Fuel pressure, status | 10F |
| 5 | Starter circuit 50 relay, actuation | 16G |
| 6 | Starter, actuation | 17J |
| 7 | Brake light switch, status | 9H |
| 8 | Vehicle speed, signal | 19D |
| 9 | Engine start, request | 9H |
| 9 | Engine start, request | 11E |
| 9 | Engine start, request | 30F |
| A1 | Instrument cluster | 18B |
| A1p13 | Multifunction display | 18A |
| A8/1 | Transmitter key | 29J |
| B11/4 | Coolant temperature sensor | 3D |
| B37 | Accelerator pedal sensor | 3H |
| B64/1 | Brake vacuum sensor | 11K |
| B70 | Crankshaft Hall sensor | 2F |
| B79/3 | Manual transmission main shifter shaft position sensor | 2J |
| CAN B | Interior CAN | 32E |
| CAN B | Interior CAN | 28C |
| CAN C | Drive train CAN | 21F |
| CAN C | Drive train CAN | 13F |
| CAN E | Chassis CAN | 8J |
| CAN E | Chassis CAN | 8C |
| CAN E | Chassis CAN | 13E |
| CAN E | Chassis CAN | 12C |
| CAN E | Chassis CAN | 20E |
| Code 233 | DISTRONIC PLUS | 14A |
| Code 237 | Active Blind Spot Assist | 14A |
| Code 889 | KEYLESS-GO | 31H |
| LIN 1 | Instrument panel LIN | 32C |
| M1 | Starter | 17J |
| M3 | Fuel pump (FP) | 25J |
| N10/1 | Front SAM control unit with fuse and relay module | 14J |
| N10/1 | Front SAM control unit with fuse and relay module | 28E |
| N10/1kM | Starter circuit 50 relay | 17G |
| N10/1kN | Engine circuit 87 relay | 14H |
| N118 | Fuel pump control unit | 22K |
| N2/10 | Supplemental restraint system control unit | 8A |
| N22/7 | Automatic air conditioning control and operating unit | 28A |
| N3/10 | ME-SFI [ME] control unit | 8E |
| N30/4 | Electronic Stability Program control unit | 8K |
| N62/1 | Radar sensors control unit | 15B |
| N69/1 | Left door control unit | 34E |
| N72/1 | Upper control panel control unit | 34B |
| N72/1s50 | ECO start/stop function button | 37A |
| N73 | Electronic ignition switch control unit | 28H |
| N80 | Steering column module control unit | 12A |
| S2/3 | KEYLESS GO start/stop button | 31H |
| S40/3 | Clutch pedal switch | 6A |
| S40/5 | Start enable clutch pedal switch | 6A |
| S9/1 | Stop lamp switch | 6K |
| U1018 | Valid for gasoline engine 276 | 7E |
| U24 | Valid for manual transmission | 1J |
| U24 | Valid for manual transmission | 5A |
| U25 | Valid for automatic transmission | 18J |
| U362 | 7E | |
| Y3/8 | Fully integrated transmission control control unit | 19K |
