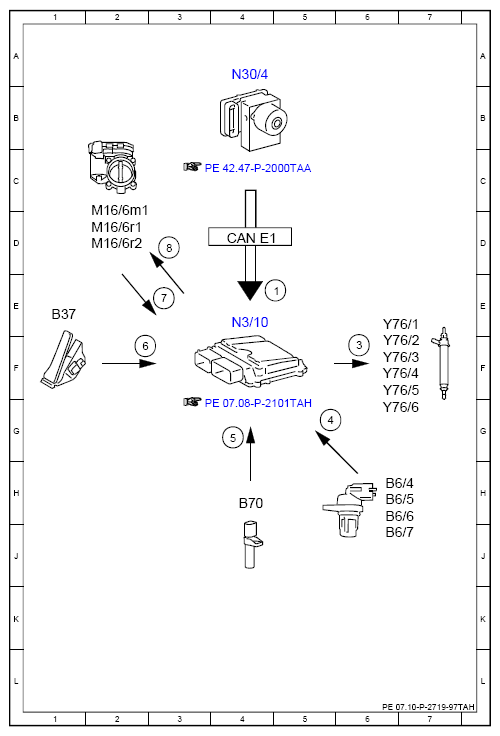

Electrical Function Schematic For Engine Limp-Home Mode - PE07.10-P-2719-97TAH
Engine 276.8 in Model 172.4
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Service brake, status | 5E |
| 3 | Fuel injectors, actuation | 6F |
| 4 | Camshaft Hall sensor, signal | 5G |
| 5 | Engine speed, signal | 4G |
| 6 | Accelerator pedal sensor, signal | 2F |
| 7 | Throttle valve position, signal | 3E |
| 8 | Actuator motor, throttle valve actuator, actuation | 3D |
| B37 | Accelerator pedal sensor | 1E |
| B6/4 | Left intake camshaft Hall sensor | 6H |
| B6/5 | Right intake camshaft Hall sensor | 6H |
| B6/6 | Left exhaust camshaft Hall sensor | 6H |
| B6/7 | Right exhaust camshaft Hall sensor | 6J |
| B70 | Crankshaft Hall sensor | 4H |
| CAN E1 | Chassis CAN 1 | 4D |
| M16/6m1 | Actuator motor | 2D |
| M16/6r1 | Actual value potentiometer 1 | 2D |
| M16/6r2 | Actual value potentiometer 2 | 2D |
| N3/10 | ME-SFI [ME] control unit | 4E |
| N30/4 | Electronic Stability Program control unit | 4A |
| Y76/1 | Cylinder 1 fuel injector | 6E |
| Y76/2 | Cylinder 2 fuel injector | 6F |
| Y76/3 | Cylinder 3 fuel injector | 6F |
| Y76/4 | Cylinder 4 fuel injector | 6F |
| Y76/5 | Cylinder 5 fuel injector | 6F |
| Y76/6 | Cylinder 6 fuel injector | 6G |
