Remove/Install Crankshaft Hall Sensor - AR15.12-P-2136RKA
Engine 276 in model 231
Engine 276.8 in model 172
Shown on ENGINE 276.9

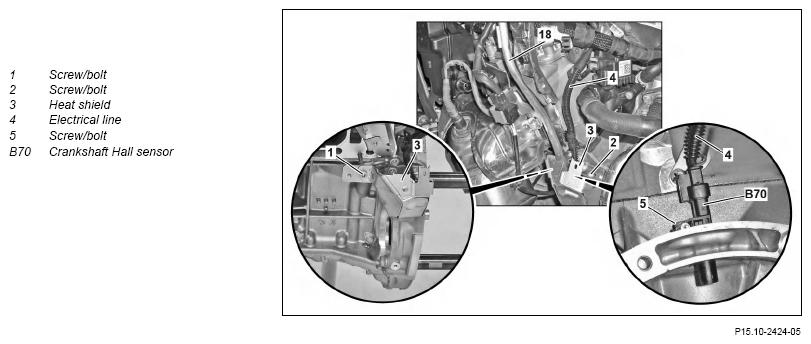

Fig 1: Crankshaft Hall Sensor Components Location - Engine 276.8 In Model 172 (Shown On Engine 276.9)
| Remove/install | |||
| 1 | Remove front upper engine cover | Engine 276.9 in model 231 | |
| 2 | Remove intake manifold | Engine 276.9 in model 231 |
AR09.20-P-1961RKA |
| 3.1 | Remove bracket for the ME-SFI [ME] control unit | AR07.08-P-7008RKA | |
| 3.2 | Remove lower engine compartment paneling | Engine 276.8 in model 172 Engine 276.8 in model 231 Engine 276.8 in model 231 |
AR61.20-P-1105RK |
| Engine 276.8 in model 172 | AR61.20-P-1105W | ||
| 4 | Remove screw/bolts (1, 2) and remove heat shield (3) | ||
| 5 | Detach heat shield (3) at left engine support | Engine 276.8 in model 172 | |
| 6 | Remove heat shield (3) downwards | ||
| 7 | Release and disconnect electrical line (4) on crankshaft Hall sensor (B70) | ||
| 8 | Remove screw/bolt (5) and crankshaft Hall sensor (B70) upwards | *BA15.10-P-1001-03E | |
| 9 | Install in the reverse order | ||
| 10 |
Read out fault memory using the diagnostic system and clear if necessary | AD00.00-P-2000-04A |
POSITION SENSOR
| Number | Designation | Engine 276 | |
|---|---|---|---|
| BA15.10-P-1001-03E | Bolt, crankshaft Hall sensor to crank case | Nm | 8 |
