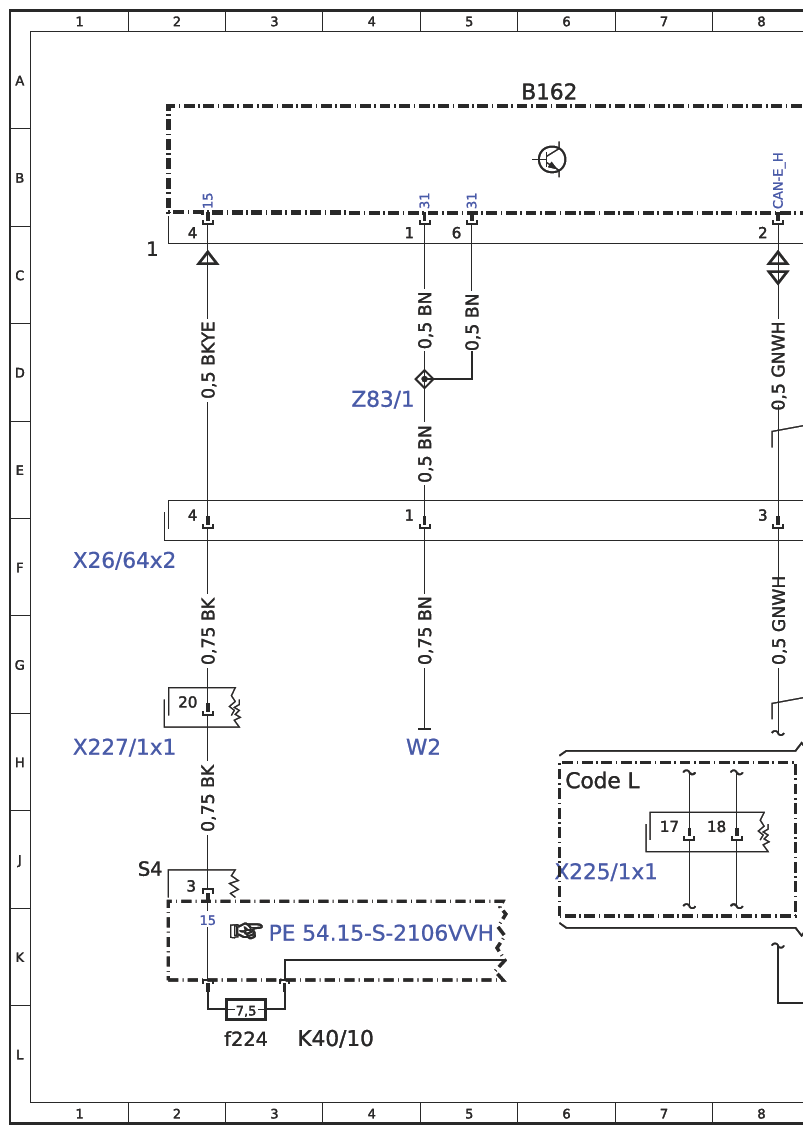

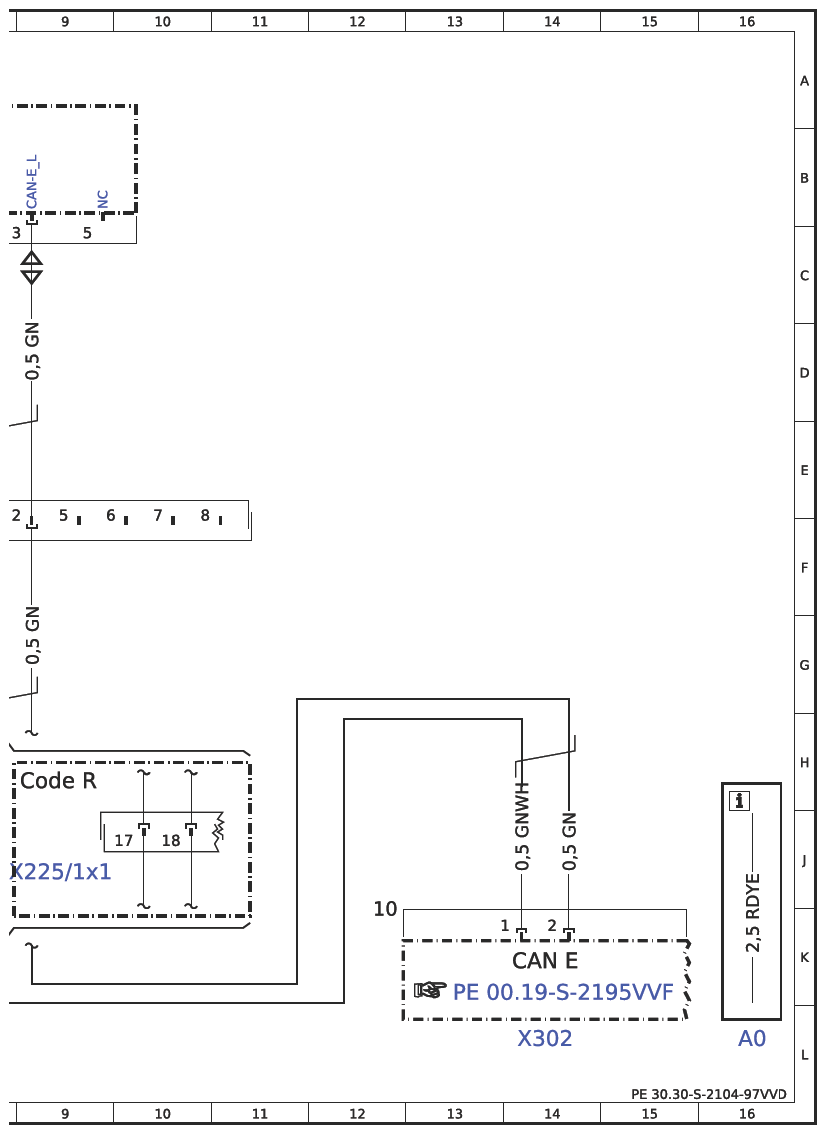

Wiring Diagram For Collision Prevention Assist Control Unit - PE30.30-S-2104-97VVD
Model 447.6 With Code JA6 (Active Brake Assist System) With Code XM0 (Facelift) except code M8E (Electric motor 85 kW/battery 60 kWh (usable)) except code ME0 (Electric motor 85 kW) except code XM7 (MOPF II) B162
Model 447.7 With Code JA6 (Active Brake Assist System) With Code XM0 (Facelift) except code M7E (Electric motor 150 kW/battery 60 kWh (usable)) except code ME0 (Electric motor 85 kW) except code ME4 (Electric motor 145 kW) except code XM7 (MOPF II) B162
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 16L |
| B162 | Collision warning system radar sensor | 6A |
| CAN E | Chassis CAN | 14K |
| Code L | Valid for left-hand drive vehicles | 6H |
| Code R | Valid for right-hand drive vehicles | 9H |
| K40/10 | Engine compartment fuse and relay module | 3L |
| K40/10f224 | Fuse 224 | 3L |
| W2 | Right front lamp unit ground point | 4H |
| X225/1x1 | Main wiring harness/firewall main wiring harness 1 electrical connector | 9J |
| X225/1x1 | Main wiring harness/firewall main wiring harness 1 electrical connector | 7J |
| X227/1x1 | Main wiring harness/fuse and relay module electrical connector 1 | 2H |
| X26/64x2 | Front bumper electrical connector 2 | 2F |
| X302 | Chassis CAN (CAN E) potential distributor electrical connector | 14L |
| Z83/1 | Radar sensor tml. 31 connector sleeve | 4D |
