Remove/Install Active Transmission Mount Control Unit - AR27.00-P-0002MNB
Model 190
With Code 466 (Active engine mount)

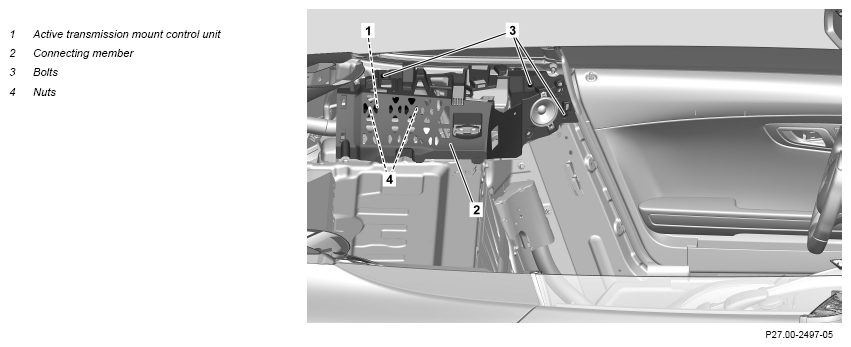

Shown on model 190.3
Fig 1: Active Transmission Mount Control Unit Components Location - Model 190 With Code 466 (Shown On Model 190.3)

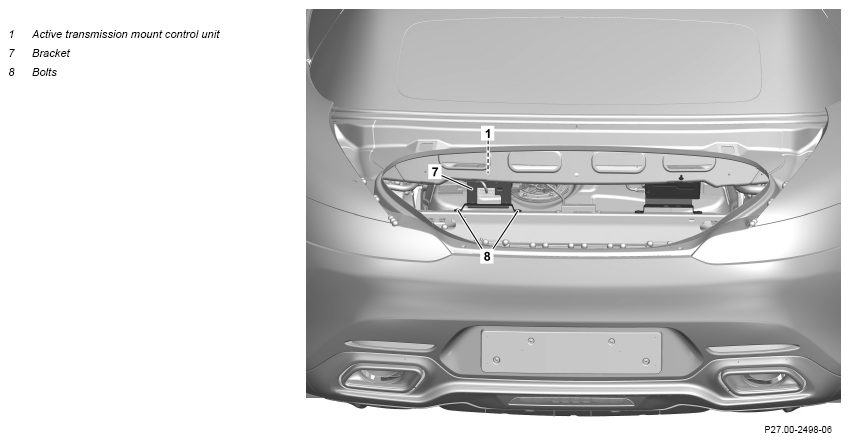

Shown on model 190.4
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Open trunk lid. | ||
| 2 | Slide driver's seat and front passenger seat forward. | Model 190.3 with code 466 (Active engine mount) |
|
| 3 | Switch off ignition and store transmitter key outside of transmission range (for at least 2 m). | ||
| 4.1 | Remove trunk load compartment cover. | Model 190.3 with code 466 (Active engine mount) |
AR68.50-P-3000RG |
| 4.2 | Remove trunk trim. | Model 190.4 with code 466 (Active engine mount) |
|
| AR68.30-P-4602RGR | |||
| 5 | Release rear wall trim in upper area. | Model 190.3 with code 466 (Active engine mount) |
|
| AR68.30-P-4750RG | |||
| 6 | Remove B-pillar connecting member (2) and place to one side. | Model 190.3 with code 466 (Active engine mount) |
|
| 7 | Remove screws (8) of holder (7) for active transmission mount control unit (1). | Model 190.4 with code 466 (Active engine mount) |
|
| 8 | Pull holder (7) out of elastomer bearings and set aside. | Model 190.4 with code 466 (Active engine mount) |
|
| 9 | Unscrew nuts (4) securing active transmission mount control unit (1) to holder. | ||
| 10 | Remove active transmission mount control unit (1). | ||
| 11 | Release and disconnect electrical connectors. | ||
| 12 | Remove active transmission mount control unit (1). | ||
| 13 | Install in the reverse order |
