Remove/Install Fuel Tank - AR47.10-P-4100GQ

Model 166 with engine 157, 276, 278, 642, 651

Model 292 with engine 157, 276, 278, 642

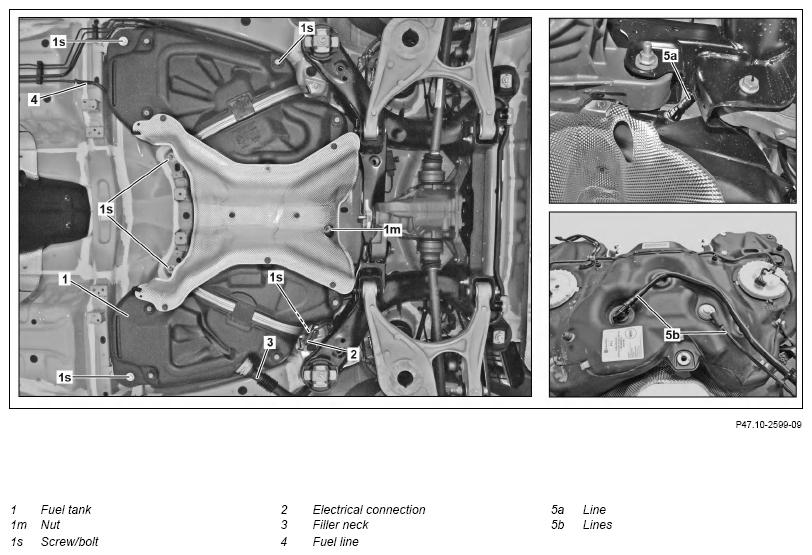

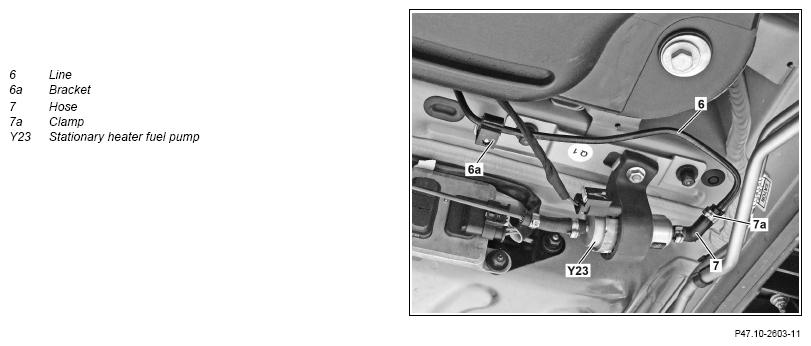

Fig 1: Fuel Tank Components Location - Model 166 With Engine 157, 276, 278, 642 (Shown On Model 166.057)

Courtesy of MERCEDES-BENZ USA

Shown on model 166.057

Shown on model 166.057

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
	Remove/install
1	Detach ground line from battery		AR54.10-P-0003GZ
2	Drain fuel tank (1)	Only the right chamber can be emptied on the installed fuel tank (1).	AR47.10-P-4001GQ
3	Remove left and right rear side underfloor panelings and left and right front side underfloor paneling		AR61.30-P-1001GQ
4	Remove propeller shaft		AR41.10-P-0050GQ
5.1	Separate electrical connections (2)	Model 166 with engine 157, 276, 278 Model 292 with engine 157, 276, 278
5.2	Disconnect electrical connection (2)	Model 166 with engine 642, 651 Model 292 with engine 642 Vehicles with a diesel engine: only one electrical connection present.
6	Unlock and detach filler neck (3) on fuel tank (1)	Collect escaping fuel in a suitable container.
7.1	Disconnect and close off fuel line (4)	Model 166 with engine 157, 276, 278 Model 292 with engine 157, 276, 278
		Record plug	Fig 3
7.2	Disconnect fuel lines (4) feed line and return flow and plug	Model 166 with engine 642, 651 Model 292 with engine 642
		Record plug	Fig 3
8	Detach line (5a) at fuel tank (1)	Model 166, 292 with engine 157, 276, 278
9	Release and disconnect electrical line to stationary heater fuel pump (Y23)	Model 166 with engine 157, 276, 278, 642, 651 with code 228 (Additional warm water heating) Model 292 with engine 157, 276, 278, 642 with code 228 (Additional warm water heating)
10	Detach line (6) at hose (7), plug and unclip from bracket (6a)	Model 166 with engine 157, 276, 278, 642, 651 with code 228 (Additional warm water heating) Model 292 with engine 157, 276, 278, 642 with code 228 (Additional warm water heating) Do not use any pointed or sharp-edged tools to remove the line (6). Otherwise line (6) or hose (7) are damaged. Replace the clamp (7a). Do not use screw clamps or spring bracket clamps. Otherwise leakage may occur. Check condition of hose (7) and check for damage, replace if necessary. Collect escaping fuel.
		Record plug	Fig 3
11	Unfasten nuts of the high-voltage battery coolant lines holder on fuel tank (1)	Model 166.063 with engine 276.8
12	Lift high-voltage battery coolant lines from fuel tank holder (1) and place to one side	Model 166.063 with engine 276.8
13	Support fuel tank (1) using a lifting platform
	000 588 03 62 00 Lifting platform		WS01.00-P-0091A
14	Remove nut (1 m) and screw/bolts (1s)	Self-locking nut, fuel tank to undercarriage	*BA47.10-P-1001-01J
		Bolt, fuel tank to undercarriage	*BA47.10-P-1002-01J
		Bolt, tensioning strap for fuel tank to underfloor	*BA47.10-P-1003-01J
15	Lower fuel tank (1) slightly

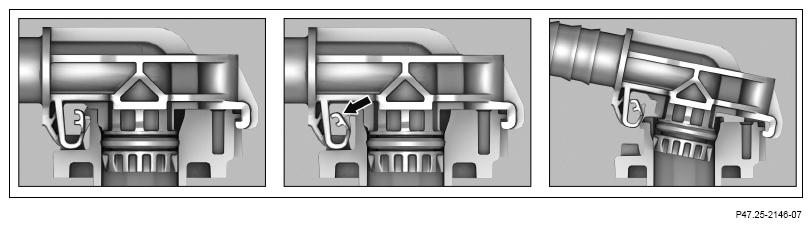

16	Detach lines (5b) on fuel tank (1)	Model 166 with engine 642, 651 Model 292 with engine 642 Release (arrow), see picture.
17	Lower fuel tank (1)
18	Remove transfer unit	When replacing the fuel tank (1).	AR47.10-P-4100-02GQ
		Ring nut to fuel tank	*BA47.10-P-1004-01J
		Prong wrench	Fig 2
19	Remove fuel pump	When replacing the fuel tank (1).
		Model 166 with engine 651 Model 166, 292 with engine 157 Model 166, 292 with engine 276 Model 166, 292 with engine 278 Model 166, 292 with engine 642	AR47.20-P-5710GQ
20	Install in the reverse order
21	Perform basic programming	Model 166 with engine 157, 276, 278, 642, 651 Model 292 with engine 157, 276, 278, 642
		Model 166 with engine 157, 276, 278, 642, 651	AR00.19-P-0200GZ
	Check
	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
22	Carry out engine test run and check fuel system for leaktightness

Fig 2: Identifying Prong Wrench (164 589 01 07 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Record Plug (129 589 00 91 00)

Courtesy of MERCEDES-BENZ USA
