Remove/Install Starter - AR15.30-P-7100GQ
Engine 276.8 in model 166, 292
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Remove/install | |||
| 1 | Disconnect ground cable at battery | AR54.10-P-0003GZ | |
| Notes on battery | AH54.10-P-0001-01A | ||
| 2 | Remove upper engine cover | ||
| 3 | Remove right air filter housing | AR09.10-P-1150GQC | |
| 4 | Remove underfloor paneling | AR61.30-P-1001GQ | |
| 5 | Remove right catalytic converter | AR49.10-P-5500GQC | |

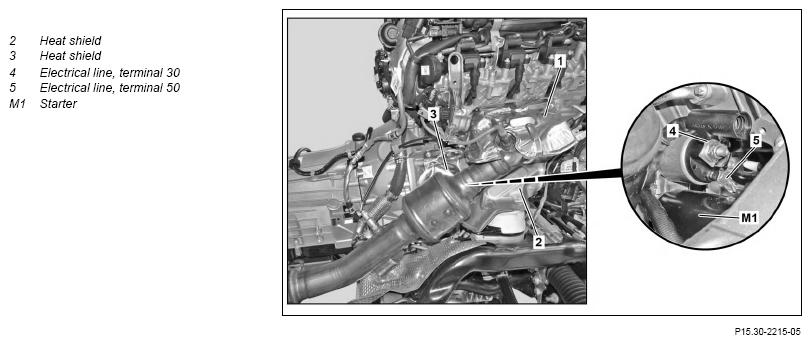

| 6 | Remove heat shield (2) | AR22.10-P-4330GQC | |
| 7 | Remove heat shield (3) | ||
| 8 | Detach wiring bracket of lambda sensor downstream of catalytic converter at transmission | Engine 276.8 in model 166 | |
| 9 | Detach contact protection on circuit 30 electric line (4) | ||
| 10 | Remove circuit 30 electric line (4) from starter (M1) | *BA15.30-P-1001-01J | |
| 11 | Remove circuit 50 electric line (5) from starter (M1) | *BA15.30-P-1002-01J | |
| 12 | Remove screws/bolts of starter (M1) | *BA15.30-P-1003-01J | |
| 13 | Remove starter (M1) toward rear | ||
| 14 | Unfasten charge air cooler and pull to the front with attached coolant lines | AR09.41-P-6819GQC | |
| 15 | Check ring gear at the drive plate for damage and wear | ||
In case of a complaint ↓ Replace drive plate. |
Fig 2 | ||
| 16 | Install in the reverse order | AR03.30-P-8001GQ |
STARTER
| Number | Designation | Engine 276 | |
|---|---|---|---|
| BA15.30-P-1001-01J | Nut, connection for terminal designation 30 | Nm | 15 |
STARTER
| Number | Designation | Engine 276 | |
|---|---|---|---|
| BA15.30-P-1002-01J | Nut, connection for terminal designation 50 | Nm | 6 |
STARTER
| Number | Designation | Engine 276 | |
|---|---|---|---|
| BA15.30-P-1003-01J | Bolt, starter to crankcase/transmission | Nm | 40 |
