Check Regulator And Alternator - AR15.40-P-5000GZ
Engine 157, 276, 278 in model 166
Engine 157, 276, 278 in model 292
Engine 272, 273, 276, 642 in model 251
Engine 272, 273, 642 in model 164
Engine 629 in model 164
Shown on model 166
| Risk of explosion from explosive gas. Risk of poisoning and caustic burns from swallowing battery electrolyte. Risk of injury through burns to skin and eyes from battery acid or when handling damaged lead-acid batteries | No fires, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Only pour battery acid into suitable and appropriately marked containers. | AS54.10-Z-0001-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on battery | AH54.10-P-0001-01A | ||
| Check | |||
| 1 | Check status of battery | Engine 157, 276, 278 in model 166 Engine 157, 276, 278 in model 292 Engine 272, 273, 642 in model 164 Engine 629 in model 164 |
AR54.10-P-1129GZ |
| Engine 272, 273, 276, 642 in model 251 | AR54.10-P-1129RT | ||

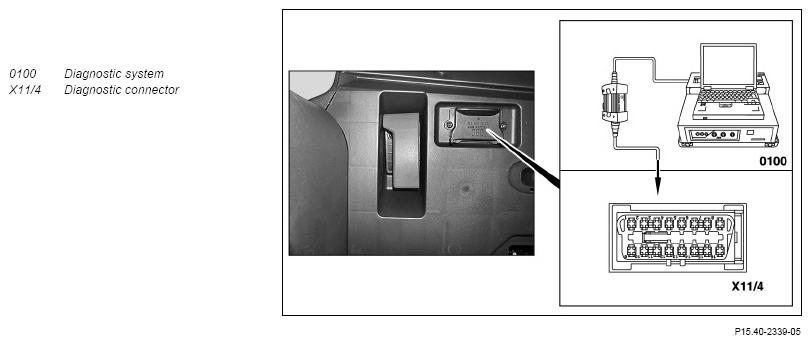

| 2 | Attach diagnostic system (0100) at the diagnostic connector (X11/4) | ||
| AD00.00-P-2000-04A | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 3 | Check alternator with diagnostic system (0100) | Checking is menu-assisted: Control unit → Actuations → Alternator diagnosis |
|
| 4 | Disconnect diagnostic system (0100) | ||
| AD00.00-P-2000-04A |
