Remove/Install Crankshaft Position Sensor - AR15.12-P-2133GZB
Engine 642 in model 164
Engine 642 in model 166, 292
Engine 642 in model 251
Shown on model 164

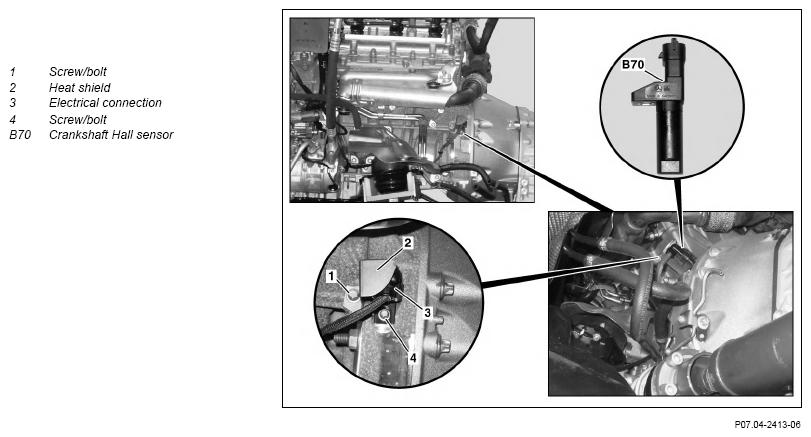

Fig 1: Crankshaft Position Sensor Components Location - Engine 642 In Model 166 (Shown On Model 164)
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Remove/install | |||
| 1 | Remove corresponding underfloor paneling | Model 166, 292 with engine 642 | AR61.30-P-1001GQ |
| 2 | Remove screw/bolt (1) | ||
| 3 | Remove heat shield (2) downwards | ||
| 4 | Disconnect electrical connection (3) on crankshaft Hall sensor (B70) | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 5 | Remove screw/bolt (4) | *BA15.10-P-1001-03G | |
| 6 | Remove crankshaft Hall sensor (B70) | ||
| 7 | Install in the reverse order | ||
| 8 | Attach diagnostic system, read out fault memory, clear | ||
| AD00.00-P-2000-04A |
HALL SENSOR
| Number | Designation | Engine 642 | |
|---|---|---|---|
| BA15.10-P-1001-03G | Crankshaft position sensor to engine block | Nm | 9 |
