Remove/Install Camshaft Hall Sensor - AR15.10-P-2000MLJ
Engine 157, 278 in model 166
Engine 157, 278 in model 292

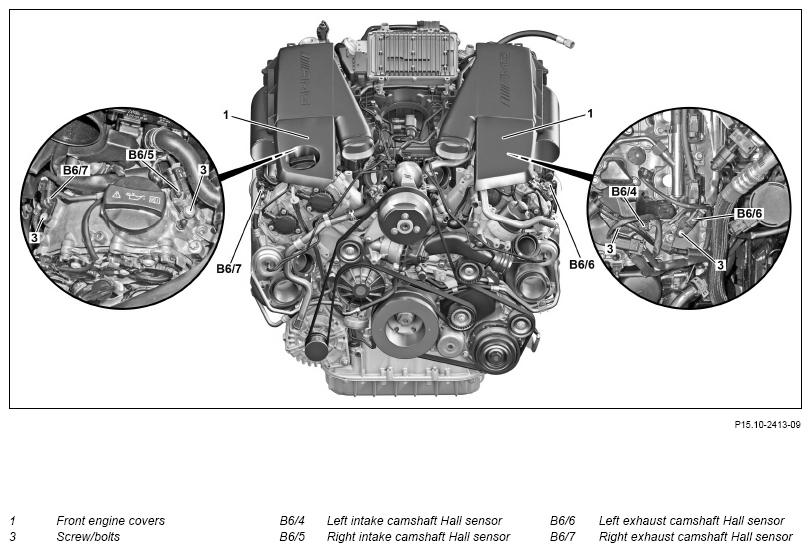

Fig 1: Camshaft Hall Sensor Components Location - Engine 157, 278 In Model 166 (Shown On Engine 157)
Shown on engine 157
| Remove/install | |||
| 1 | Remove front engine covers (1) | When removing intake camshaft Hall sensors (B6/4, B6/5) | |
| 2 | Remove engine air intake duct upstream of air filter | When removing exhaust camshaft Hall sensors (B6/6, B6/7) | |
| 3 | Detach purge line from cylinder head cover | When removing the Hall sensor for the left exhaust camshaft (B6/4) | |
| 4 | Detach electrical connection from the respective camshaft Hall sensor (B6/4, B6/5, B6/6, B6/7) | ||
| 5 | Remove screw/bolt (3) and pull respective camshaft Hall sensor (B6/4, B6/5, B6/6, B6/7) out of the cylinder head cover | *BA15.10-P-1006-03E | |
| 6 | Install in the reverse order | ||
| 7 | Read out fault memory using the diagnostic system and clear if necessary | ||
| AD00.00-P-2000-04A | |||
| Check | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it i running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 8 | Carry out an engine test run, checking the engine for proper operation and leaktightness |
POSITION SENSOR
| Number | Designation | Engine 157 | Engine 278 | |
|---|---|---|---|---|
| BA15.10-P-1006-03E | Bolt, camshaft Hall sensor to cylinder head cover | Nm | 8 | 8 |
