Remove/Install Front Door Power Window Switch Group - AR72.29-P-0110NKB

MODEL 117, 156, 166, 176, 204.3, 212 as of 3/1/11, 218, 231, 242, 246, 292

Shown on MODEL 246

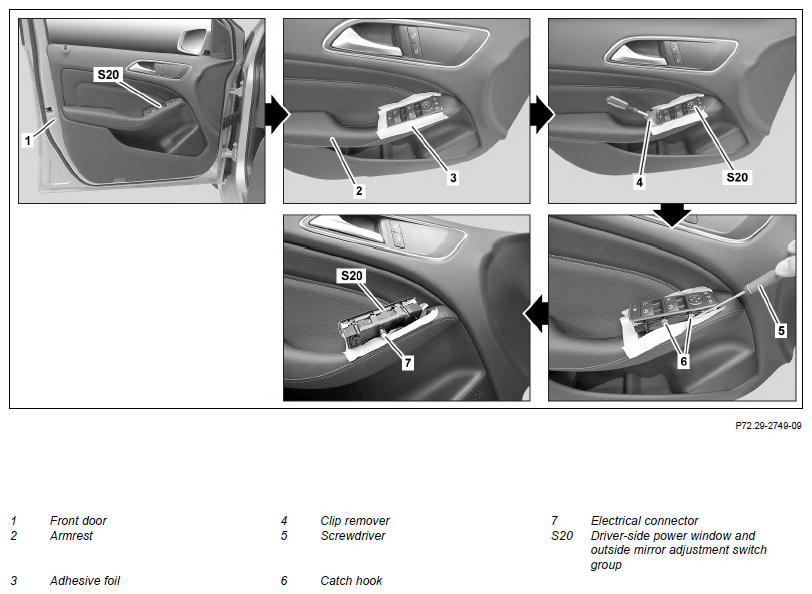

Fig 1: Front Door Power Window Switch Group Components Location - Model 166 (Shown On Model 246)

Courtesy of MERCEDES-BENZ USA

	Remove
1	Directly attach adhesive foil (3) on driver-side outside mirror adjustment power window switch group (S20)
2	Unclip driver-side outside mirror adjustment power window switch group (S20) from armrest (2) on front door (1) using clip remover (4)	Clip remover	Fig 2
3	Release catch hooks (6) on driver-side outside mirror adjustment power window switch group (S20) with suitable screwdriver (5) and remove from armrest (2) until electrical connector is accessible (7)
4	Disconnect electrical connector (7) and remove driver-side outside mirror adjustment power window switch group (S20)
5	Remove adhesive foil (3)
	Install
6	Connect electrical connector (7) on driver side power window and outside mirror adjustment switch group (S20)
7	Clip driver-side outside mirror adjustment power window switch group (S20) into armrest (2)	The driver-side outside mirror adjustment power window switch group (S20) should arrest perceptively in the armrest (2).
8	Check adjustments for proper function

Fig 2: Identifying Clip Remover (000 589 90 63 00)

Courtesy of MERCEDES-BENZ USA
