Remove/Install Front Door Control Unit - AR72.29-P-1000GQ
MODEL 166
except code Z04 (Light armoring)
except code Z05 (B5 armoring on special protection version)
Model 292
Shown on model 166.004
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Connect diagnostic system and store basic data of left front door control unit (N69/1) or right front door control unit (N69/2) | When replacing left front door control unit (N69/1) or right front door control unit (N69/2). | |
| AD00.00-P-2000-04A | |||

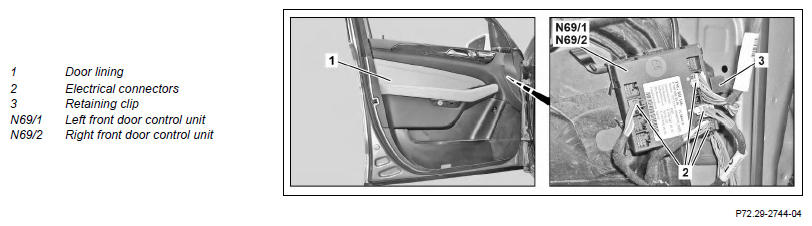

| 2 | Remove door liner (1) from front door | AR72.10-P-1000GQ | |
| 3 | Disconnect electrical connectors (2) from left front door control unit (N69/1) or right front door control unit (N69/2) | ||
| 4 | Press retaining clip (3) and remove left front door control unit (N69/1) or right front door control unit (N69/2) by pulling to side | ||
| 5 | Install in the reverse order | ||
| Initial startup | |||
| 6 | Perform SCN coding for left front door control unit (N69/1) or right front door control unit (N69/2) with diagnostic system | When replacing left front door control unit (N69/1) or right front door control unit (N69/2). | AR54.21-P-0015X |
| 7 | Transfer previously stored basic data to left front door control unit (N69/1) or right front door control unit (N69/2) | When replacing left front door control unit (N69/1) or right front door control unit (N69/2). | |
| AD00.00-P-2000-04A | |||
| 8 | Perform start-up for left front door control unit (N69/1) or right front door control unit (N69/2) | When replacing left front door control unit (N69/1) or right front door control unit (N69/2). |
