Remove/Install Starter - AR15.30-P-7100GQA
ENGINE 276.9 in MODEL 166
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Remove/install | |||
| 1 | Disconnect ground cable at battery | AR54.10-P-0003GZ | |
| Notes on battery | AH54.10-P-0001-01A | ||
| 2 | Remove front upper engine cover | ||
| 3 | Remove air filter housing | *BA09.10-P-1001-01M | |
| *BA09.10-P-1002-01M | |||

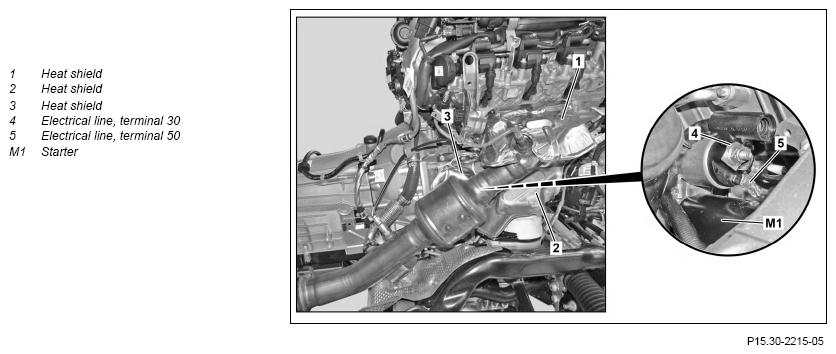

| 4 | Detach heat shield (1) at cylinder head on the right | ||
| 5 | Remove underfloor paneling | AR61.30-P-1001GQ | |
| 6 | Remove oxygen sensor upstream the RH catalytic converter | AR07.52-P-5303GQ | |
| 7 | Remove heat shield (1) | ||
| 8 | Remove heat shield (2) | AR22.10-P-1260GQ | |
| 9 | Remove heat shield (3) | ||
| 10 | Detach contact protection on circuit 30 electric line (4) | ||
| 11 | Remove circuit 30 electric line (4) from starter (M1) | *BA15.30-P-1001-01J | |
| 12 | Remove circuit 50 electric line (5) from starter (M1) | *BA15.30-P-1002-01J | |
| 13 | Remove screws/bolts of starter (M1) | *BA15.30-P-1003-01J | |
| 14 | Remove starter (M1) upwards | ||
| 15 | Check ring gear at the drive plate for damage and wear | Figure | |
| In case of a complaint ↓ Replace drive plate. |
AR03.30-P-8001GQ | ||
| 16 | Install in the reverse order |
AIR FILTER
| Number | Designation | Engine 276.9 | |
|---|---|---|---|
| BA09.10-P-1001-01M | Screw/bolt, air filter to cylinder head cover | Nm | 9 |
AIR FILTER
| Number | Designation | Engine 276.9 | |
|---|---|---|---|
| BA09.10-P-1002-01M | Screw/bolt, air filter to air intake pipe support brace | Nm | 9 |
STARTER
| Number | Designation | Engine 276 | |
|---|---|---|---|
| BA15.30-P-1001-01J | Nut, connection for terminal designation 30 | Nm | 15 |
STARTER
| Number | Designation | Engine 276 | |
|---|---|---|---|
| BA15.30-P-1002-01J | Nut, connection for terminal designation 50 | Nm | 6 |
STARTER
| Number | Designation | Engine 276 | |
|---|---|---|---|
| BA15.30-P-1003-01J | Bolt, starter to crankcase | Nm | 40 |
