Remove/Install Starter - AR15.30-P-7100MNH
Engine 177 in model 253
| Risk of injury. Skin or eye injuries may result | Wear protective gloves, protective clothing and | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. | AS00.00-Z-0017-01A | |
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Remove/install | |||
| 1 | Deactivate easy entry and exit feature for steering wheel | ||
| 2 | Turn complete wheels on front axle to straight-ahead position and secure steering wheel with holding device | Otherwise the clock spring contact will be destroyed. |
|
| Fig 3 | |||
| 3 | Disconnect battery ground line | AR54.10-P-0003LW | |
| 4 | Remove steering coupling from steering shaft and place steering coupling to one side | AR46.10-P-8000LW | |

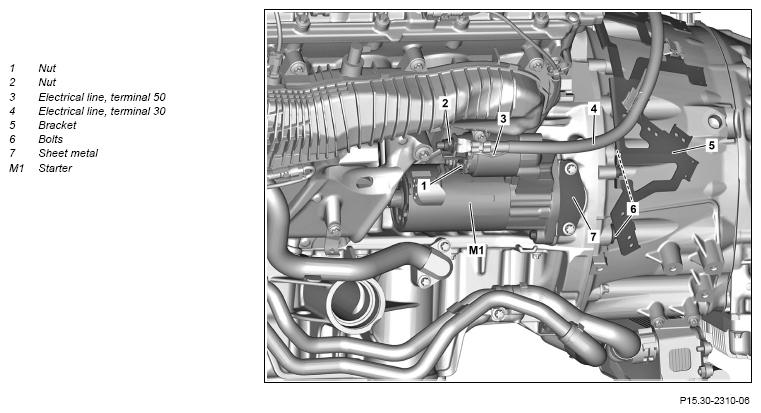

| 5 | Remove contact protection of the electric line, terminal 30 (4) | ||
| 6 | Unclip electric line, terminal 30 (4) from | ||
| 7 | Unscrew nut (2) | *BA15.30-P-1004-01T | |
| 8 | Unscrew nut (1) | *BA15.30-P-1003-01T | |
| 9 | Disconnect electric line, terminal 30 (4) from starter (M1) | ||
| 10 | Disconnect electric line, terminal 50 (3) from starter (M1) | ||
| 11 | Remove sheet metal (7) | *BA00.10-P-1002-04A | |
| 12 | Lift bracket (5) and remove screws (6) | *BA15.30-P-1001-01T | |
| 13 | Remove starter (M1) downward | ||
| 14 | Check pinion of the starter (M1) for wear and damage | If a problem arises ↓ Replace starter (M1). |
|
| 15 | Remove front lower engine compartment paneling | If the starter drive pinion is damaged. | |
| AR61.20-P-1105LW | |||
| 16 | Turn engine at center bolt of crankshaft and check starter ring gear on flywheel for damage | If the starter drive pinion is damaged. If a problem arises ↓ Replace flywheel. |
Fig 2 |
| AR03.30-P-8002MNG | |||
| 17 | Install in the reverse order | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 18 | Perform engine test run and check starter (M1) for proper operation |
METRIC SCREWS/BOLTS AND NUTS AS PER MBN 10 105, 10 143
| Number | Designation | 8.8 | 10.9 | |
|---|---|---|---|---|
| BA00.10-P-1002-04A | M6 X 1 | Nm | 9 | 13 |
STARTER
| Number | Designation | Engine 177 | |
|---|---|---|---|
| BA15.30-P-1001-01T | Bolt, starter to crankcase and transmission | Nm | 40 |
STARTER
| Number | Designation | Engine 177 | |
|---|---|---|---|
| BA15.30-P-1003-01T | Nut, connection for terminal designation 50 | Nm | 9 |
STARTER
| Number | Designation | Engine 177 | |
|---|---|---|---|
| BA15.30-P-1004-01T | Nut, connection for terminal designation 30 | Nm | 16 |
