Remove/Install Right Intake Camshaft Hall Sensor - AR15.10-P-2002MMV
Engine 276.8 in model 205
Engine 276.8 in model 253
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Remove | |||
| 1 | Remove upper engine cover | ||

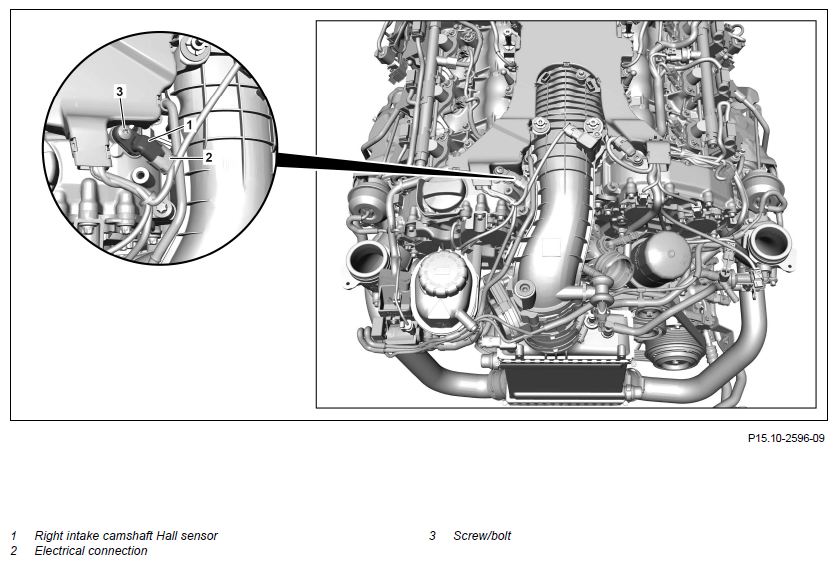

| 2 | Release and disconnect electrical connection (2) | ||
| 3 | Remove screw/bolt (3) | ||
| 4 | Remove right intake camshaft Hall sensor (1) | ||
| Install | |||
| 5 | Replace sealing ring on right intake camshaft Hall sensor (1) | ||
| 6 | Position right intake camshaft Hall sensor (1) or cylinder head cover | ||
| 7 | Tighten screw/bolt (3) | *BA15.10-P-1006-03E | |
| 8 | Put together electrical connection (2) until they are locked | ||
| 9 |
Read out and erase fault memory | AD00.00-P-2000-04B | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 10 | Carry out an engine test run, checking the engine for proper operation and leaktightness | ||
| 11 | Install upper engine cover |
POSITION SENSOR
| Number | Designation | Engine 276 | |
|---|---|---|---|
| BA15.10-P-1006-03E | Bolt, camshaft Hall sensor to cylinder head cover | Nm | 9 |
