Remove/Install Tire Pressure Monitoring Control Unit - AR40.15-P-0101LWE

Model 213, 238

with code 475 (Tire pressure monitoring system)

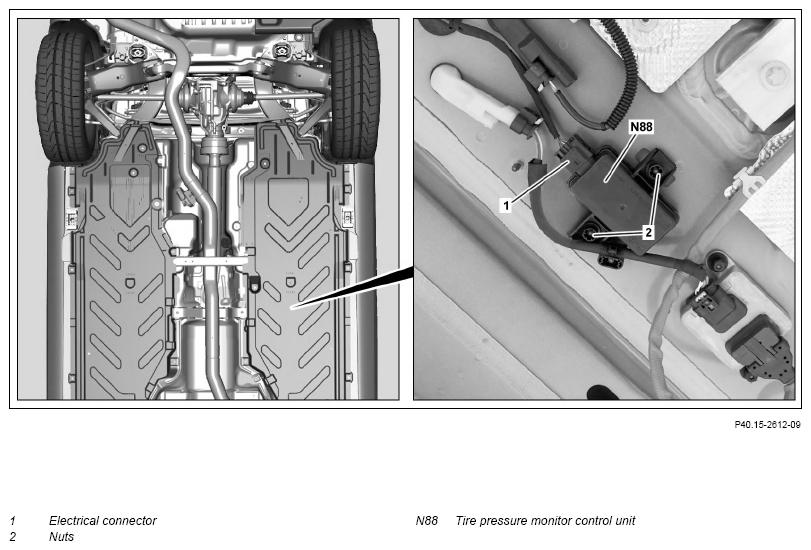

Fig 1: Tire Pressure Monitoring Control Unit Components Location - Model 213 with code 475

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Commission tire pressure monitor control unit (N88) using diagnostic system	When removing tire pressure monitor control unit (N88).
		Model 238 with code 475 (Tire pressure monitoring system)	AD00.00-P-2000-06LWO
		Model 213 with code 475 (Tire pressure monitoring system)	AD00.00-P-2000-04B
2	Switch off ignition and store transmitter key outside of transmission range (min. 2 m)
3	Remove right underfloor paneling		AR61.30-P-1001LWE
4	Disconnect electrical connector (1)
5	Unscrew nuts (2) and remove tire pressure monitor control unit (N88)
6	Install in the reverse order
7	Activate tire pressure monitor using instrument cluster		AR54.30-P-1001-01LWE
