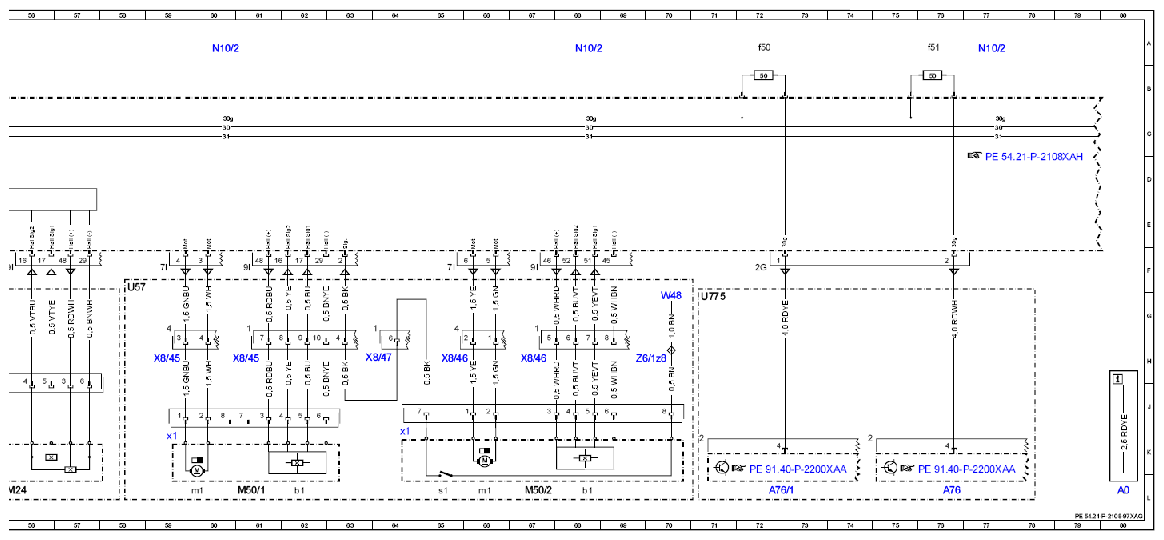

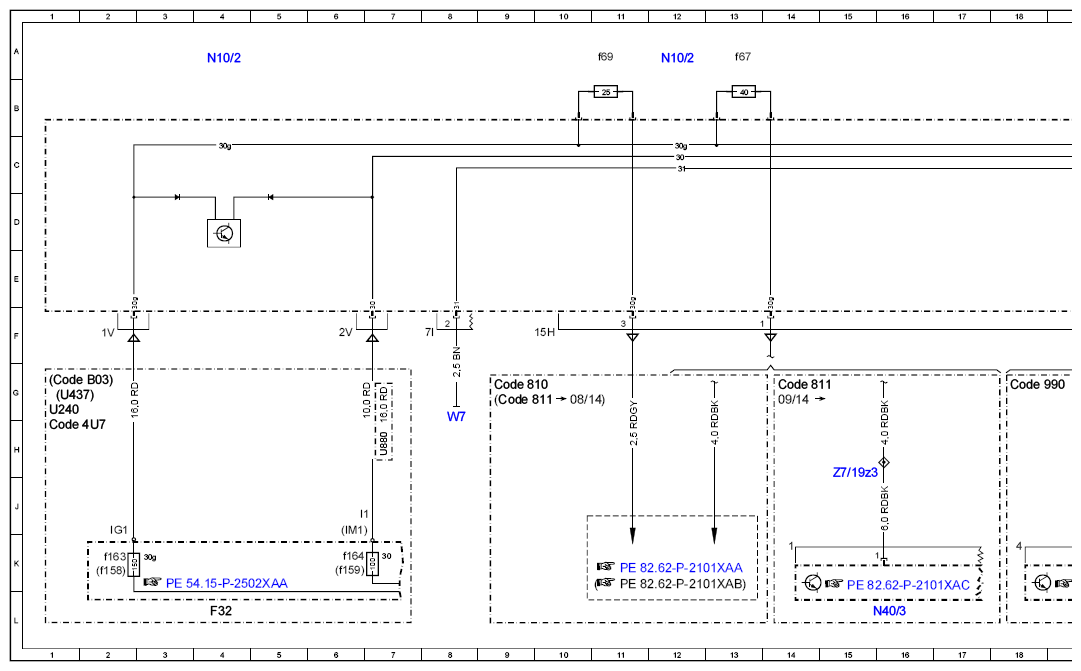

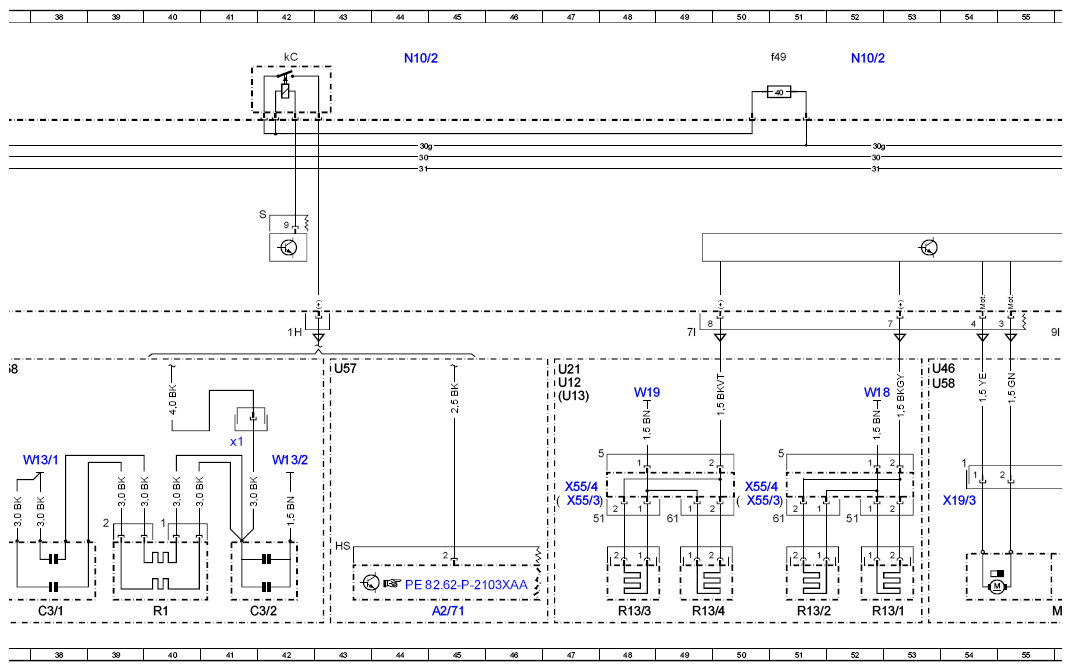

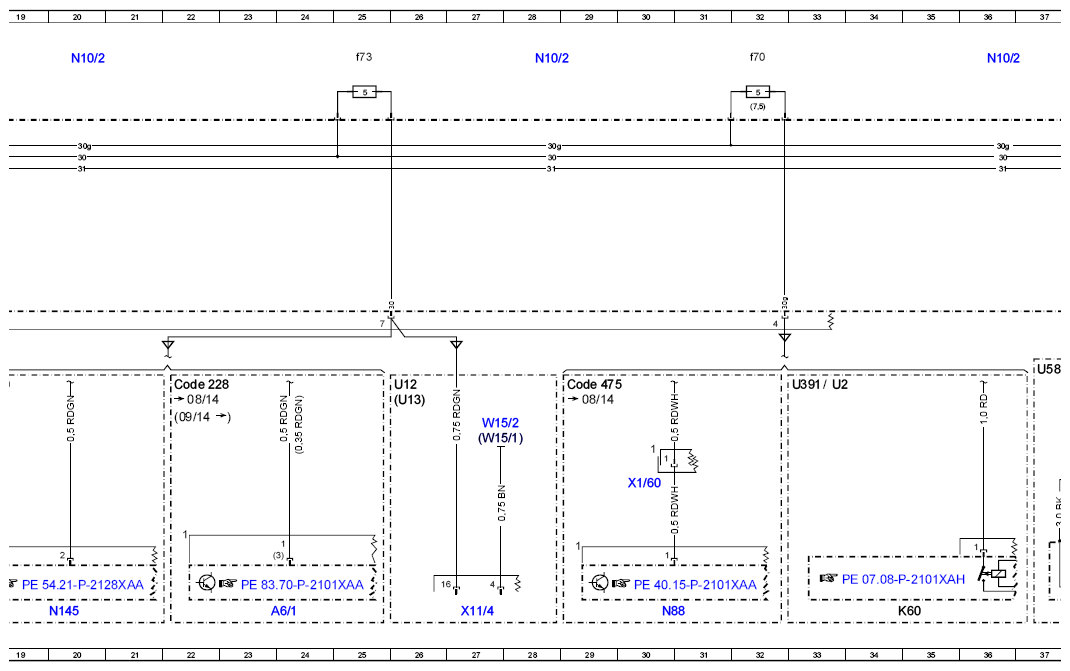

| A0 |
Color code key |
80L |
| A2/71 |
Rear window antenna amplifier 1 |
45L |
| A6/1 |
Stationary heater radio remote control receiver |
24L |
| A76 |
Left front reversible emergency tensioning retractor |
76L |
| A76/1 |
Right front reversible emergency tensioning retractor |
72L |
| C3/1 |
Rear window interference suppression capacitor 1 |
38L |
| C3/2 |
Rear window interference suppression capacitor 2 |
41L |
| C3/2x1 |
Rear window interference suppression capacitor 2 electrical connector |
41H |
| Code 228 |
Stationary heater |
22G |
| Code 475 |
Tire pressure monitor |
29G |
| Code 4U7 |
Start/stop voltage dip protection |
1H |
| Code 810 |
Sound system |
9G |
| Code 811 |
Extended sound system |
9G |
| Code 811 |
Extended sound system |
14G |
| Code 990 |
AMG vehicles |
18G |
| Code B03 |
ECO start/stop function |
1G |
| F32 |
Front electrical prefuse box |
4L |
| F32f158 |
Prefuse 158 |
2K |
| F32f159 |
Prefuse 159 |
6K |
| F32f163 |
Prefuse 163 |
2K |
| F32f164 |
Prefuse 164 |
6K |
| K60 |
Coolant circulation pump relay |
35L |
| M24 |
Rear window roller sun blind motor |
56L |
| M50/1 |
Left cargo area cover actuator motor |
61L |
| M50/1b1 |
Left cargo area cover Hall sensor |
62L |
| M50/1m1 |
Left cargo area cover drive motor |
60L |
| M50/1x1 |
Left cargo area cover actuator motor electrical connector |
59K |
| M50/2 |
Right cargo area cover actuator motor |
67L |
| M50/2b1 |
Right cargo area cover Hall sensor |
68L |
| M50/2m1 |
Right cargo area cover drive motor |
66L |
| M50/2s1 |
Right cargo area cover limit switch |
65L |
| M50/2x1 |
Right cargo area cover actuator motor electrical connector |
64K |
| N10/2 |
Rear SAM control unit with fuse and relay module |
4A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
12A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
20A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
28A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
36A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
44A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
52A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
60A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
68A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
77A |
| N10/2f49 |
Fuse 49 |
51A |
| N10/2f50 |
Fuse 50 |
72A |
| N10/2f51 |
Fuse 51 |
76A |
| N10/2f67 |
Fuse 67 |
13A |
| N10/2f69 |
Fuse 69 |
11A |
| N10/2f70 |
Fuse 70 |
32A |
| N10/2f73 |
Fuse 73 |
25A |
| N10/2kC |
Heated rear window relay |
42A |
| N145 |
Transmission mode control unit |
20L |
| N40/3 |
Sound system amplifier control unit |
16L |
| N88 |
Tire pressure monitor control unit |
30L |
| R1 |
Rear window heater |
40L |
| R13/1 |
Left front seat sitting surface heated cushion |
52L |
| R13/2 |
Left front backrest heated cushion |
51L |
| R13/3 |
Right front seat sitting surface heated cushion |
48L |
| R13/4 |
Right front backrest heated cushion |
49L |
| U12 |
Valid for left-hand drive vehicles |
26G |
| U12 |
Valid for left-hand drive vehicles |
47G |
| U13 |
Valid for right-hand drive vehicles |
26G |
| U13 |
Valid for right-hand drive vehicles |
47G |
| U2 |
Valid for all except USA |
33G |
| U21 |
Valid for heated seats |
47G |
| U240 |
Valid for all except ECO start/stop function |
1G |
| U391 |
Valid for gasoline engine 276.8 |
33G |
| U437 |
Valid without code (4U7) Start/stop voltage dip protection |
1G |
| U46 |
Valid for rear window roller sun blind |
53G |
| U57 |
Valid for model 218.9 |
43G |
| U57 |
Valid for model 218.9 |
58F |
| U58 |
Valid for model 218.3 |
37G |
| U58 |
Valid for model 218.3 |
53G |
| U775 |
Valid for emergency tensioning retractor |
71G |
| U880 |
Valid for diesel engine 642 |
7H |
| W13/1 |
Ground point (left rear window heater) |
38H |
| W13/2 |
Ground point (right rear window heater) |
42H |
| W15/1 |
Right footwell ground point |
27H |
| W15/2 |
Left footwell ground point |
27H |
| W18 |
Left front seat crossmember ground point |
52G |
| W19 |
Right front seat crossmember ground point |
48G |
| W48 |
Left rear roof frame ground point |
70G |
| W7 |
Right rear wheel well ground point |
8H |
| X1/60 |
Tire pressure monitor electrical connector |
30J |
| X11/4 |
Diagnostic connector |
27L |
| X19/3 |
Rear window roller sun blind motor electrical connector |
54J |
| X55/3 |
Driver seat connector block |
50J |
| X55/3 |
Driver seat connector block |
47J |
| X55/4 |
Front passenger seat connector block |
50J |
| X55/4 |
Front passenger seat connector block |
47J |
| X8/45 |
Left vehicle interior and trunk lid/liftgate electrical connector |
59H |
| X8/45 |
Left vehicle interior and trunk lid/liftgate electrical connector |
61H |
| X8/46 |
Right vehicle interior and trunk lid/liftgate electrical connector |
65H |
| X8/46 |
Right vehicle interior and trunk lid/liftgate electrical connector |
67H |
| X8/47 |
Left and right trunk lid/liftgate electrical connector |
64H |
| Z6/1z8 |
Circuit 31 connector sleeve |
70H |
| Z7/19z3 |
Circuit 30 (fused) connector sleeve |
15H |
