| A0 |
Color code key |
80L |
| A28/3 |
Cellular telephone system antenna amplifier/compensator |
74L |
| A50/6 |
Dedicated Short-Range Communications control unit |
17J |
| A90/1 |
TV tuner (analog/digital) |
66L |
| A90/3 |
TV digital tuner |
66L |
| A90/4 |
Tuner unit |
70L |

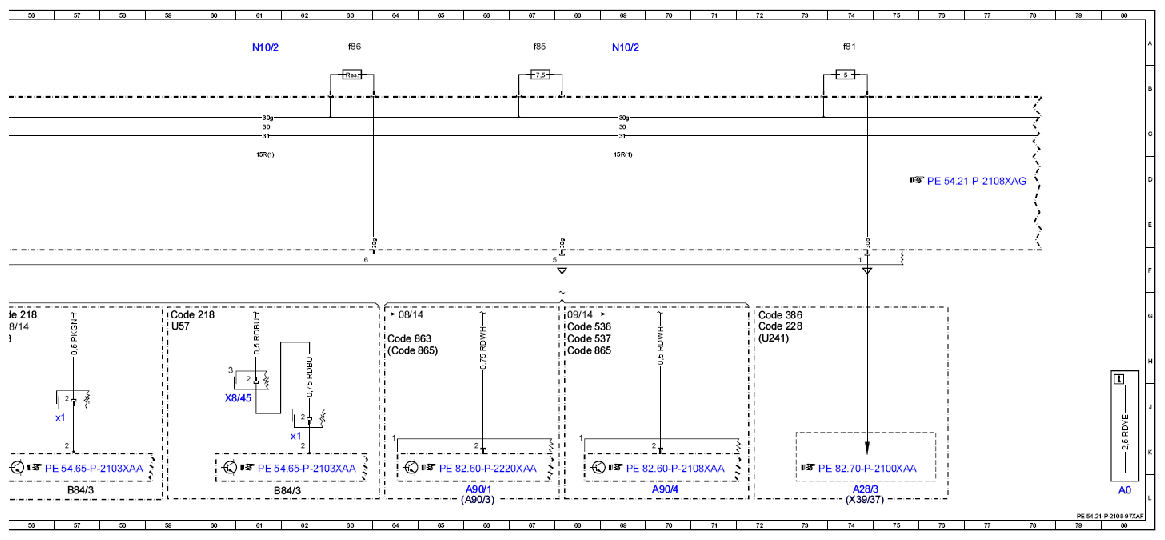

| B84/3 |
Backup camera |
57L |
| B84/3 |
Backup camera |
61L |
| B84/3x1 |
Backup camera electrical connector |
62K |
| B84/3x1 |
Backup camera electrical connector |
57J |
| Code 218 |
Backup camera |
47G |
| Code 218 |
Backup camera |
55G |
| Code 218 |
Backup camera |
51G |
| Code 218 |
Backup camera |
59G |
| Code 228 |
Stationary heater |
72G |
| Code 348 |
Emergency ca11/assistance system |
19G |
| Code 359 |
TELEAID emergency call system |
19G |
| Code 359 |
TELEAID emergency call system |
21H |
| Code 360 |
HERMES UMTS |
27G |
| Code 362 |
HERMES LTE |
27G |
| Code 386 |
Mobile phone preinstallation with universal interface |
72G |
| Code 4U7 |
Start/stop voltage dip protection |
1H |
| Code 536 |
SIRIUS satellite radio |
68G |
| Code 537 |
Digital radio |
68H |
| Code 863 |
Digital/analog TV tuner |
64H |
| Code 865 |
TV tuner (digital) |
64H |
| Code 865 |
TV tuner (digital) |
68H |
| Code 9U1 |
|
31G |
| Code B03 |
ECO start/stop function |
1G |
| Code B54 |
Live Traffic Information |
23G |

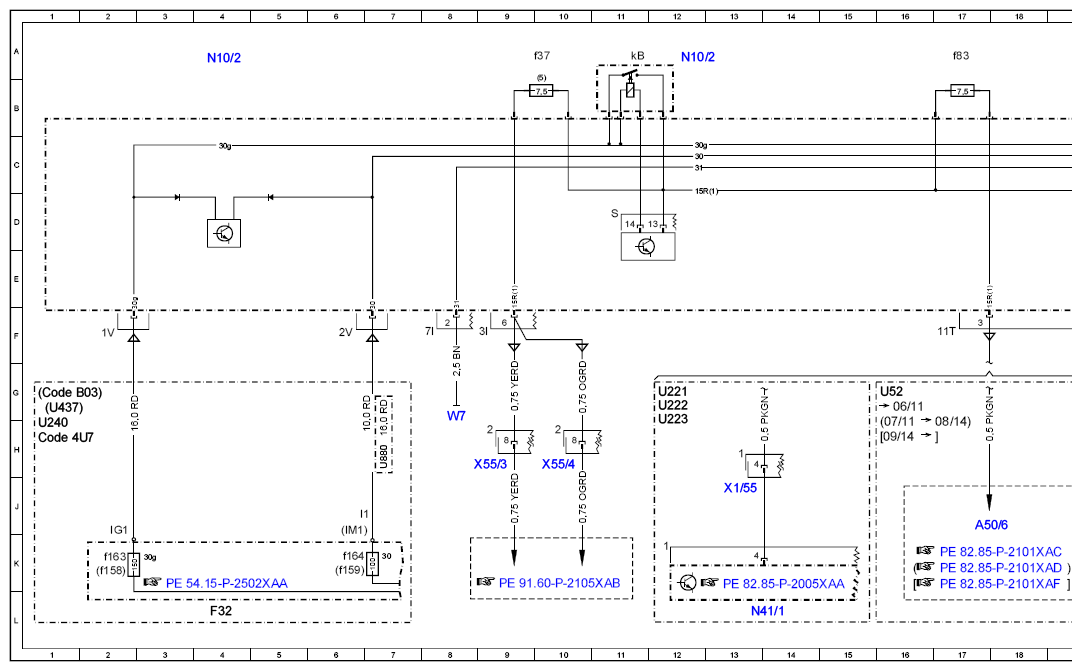

| F32 |
Front electrical prefuse box |
4L |
| F32f158 |
Prefuse 158 |
2K |
| F32f159 |
Prefuse 159 |
6K |
| F32f163 |
Prefuse 163 |
2K |
| F32f164 |
Prefuse 164 |
6K |
| K60 |
Coolant circulation pump relay |
37L |
| N10/2 |
Rear SAM control unit with fuse and relay module |
12A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
20A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
29A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
36A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
46A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
53A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
4A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
69A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
61A |
| N10/2f37 |
Fuse 37 |
10A |
| N10/2f81 |
Fuse 81 |
74A |
| N10/2f83 |
Fuse 83 |
17A |
| N10/2f84 |
Fuse 84 |
45A |
| N10/2f85 |
Fuse 85 |
67A |
| N10/2f86 |
Fuse 86 |
63A |
| N10/2f87 |
Fuse 87 |
28A |
| N10/2kB |
Circuit 15R relay (1) |
11A |
| N112/2 |
Telematics services communication module |
25L |
| N112/9 |
HERMES control unit |
29L |

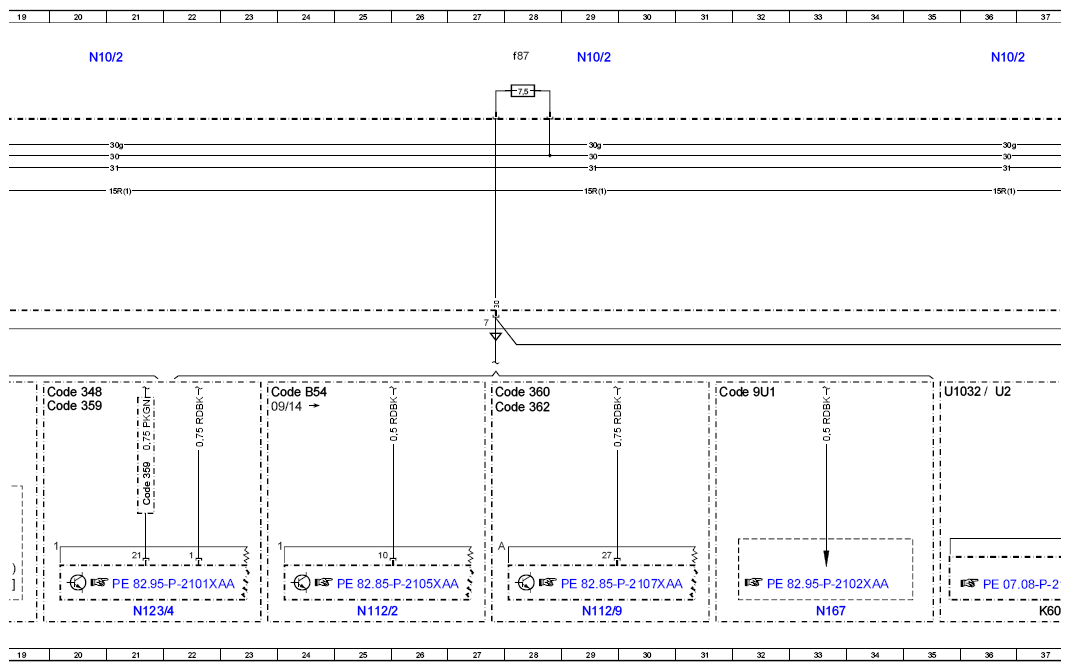

| N123/4 |
Emergency call system control unit |
21L |
| N167 |
E-Call Russia (GLONASS) control unit |
33L |
| N41/1 |
Navigation processor |
13L |
| N66/10 |
Backup camera voltage supply module |
53L |
| N66/2 |
Backup camera control unit |
49L |

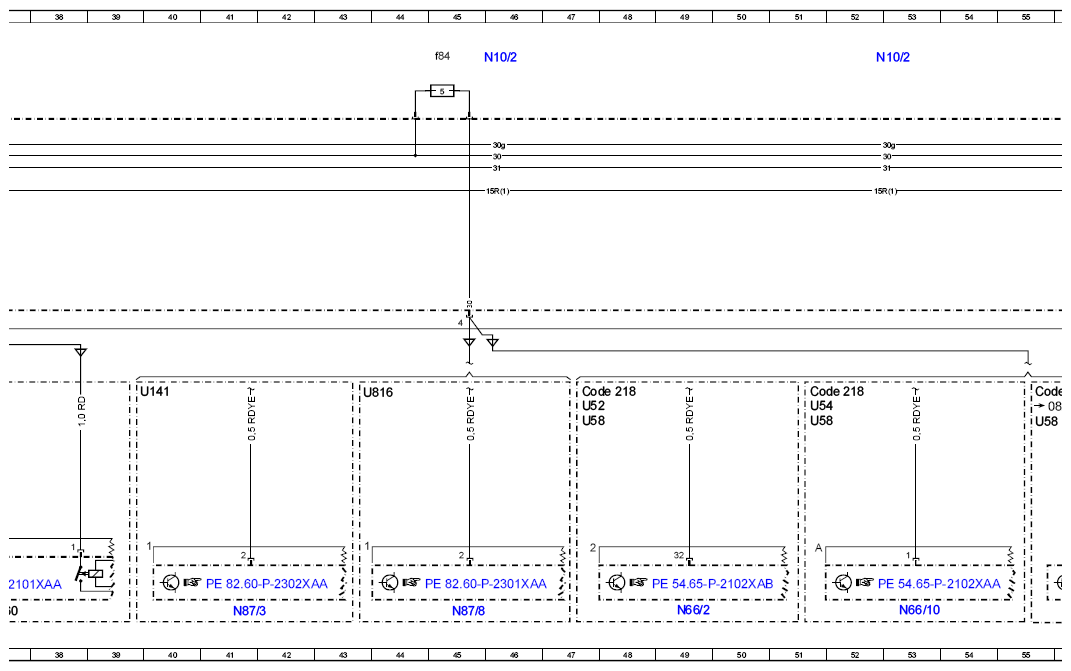

| N87/3 |
Digital Audio Broadcasting control unit |
41L |
| N87/8 |
SDAR control unit / high definition tuner |
45L |
| U1032 |
Valid for engine 278 and 157 |
35G |
| U141 |
Valid for Digital Audio Broadcasting |
39G |
| U2 |
Valid for all except USA |
36G |
| U221 |
Valid for China |
12G |
| U222 |
Valid for Korea |
12G |
| U223 |
Valid for external navigation |
12H |
| U240 |
Valid for all except ECO start/stop function |
1H |
| U241 |
Valid for comfort telephony without compensator |
72H |
| U437 |
Valid without code (4U7) Start/stop voltage dip protection |
1G |
| U52 |
Valid for Japan |
16G |
| U52 |
Valid for Japan |
47G |
| U54 |
Valid for all except Japan |
51G |
| U57 |
Valid for model 218.9 |
59G |
| U58 |
Valid for model 218.3 |
47H |
| U58 |
Valid for model 218.3 |
51H |
| U58 |
Valid for model 218.3 |
55H |
| U816 |
Valid for satellite digital audio radio (SDAR) |
43G |
| U880 |
Valid for diesel engine 642 |
7H |
| W7 |
Right rear wheel well ground point |
8G |
| X1/55 |
External navigation electrical connector |
13J |
| X39/37 |
Mobile phone electrical connector |
74L |
| X55/3 |
Driver seat connector block |
9H |
| X55/4 |
Front passenger seat connector block |
10H |
| X8/45 |
Left vehicle interior and trunk lid/liftgate electrical connector |
61J |
