| A0 |
Color code key |
56L |
| B4/1 |
Fuel tank fuel level indicator fill level sensor, left |
15L |
| B4/2 |
Fuel tank fuel level indicator fill level sensor, right |
13L |
| Code 475 |
Tire pressure monitor |
47G |
| Code 4U7 |
Start/stop voltage dip protection |
1H |
| Code 551 |
Anti-theft alarm system (ATA [EDW]) |
9G |
| Code B03 |
ECO start/stop function |
9G |
| Code B03 |
ECO start/stop function |
1G |
| Code B54 |
Live Traffic Information |
43G |

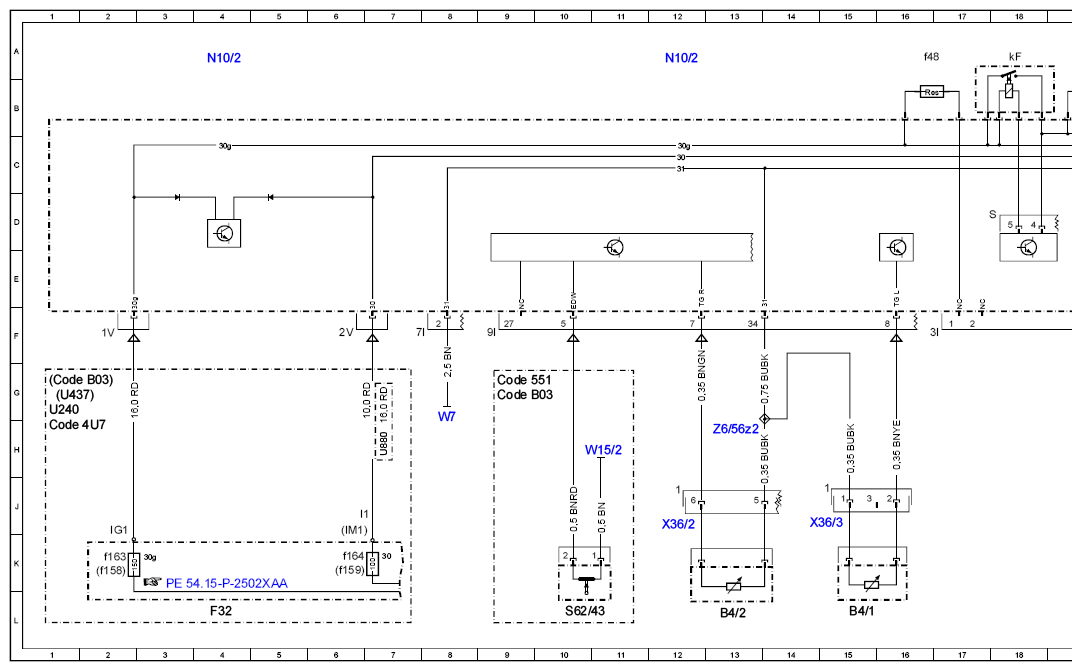

| F32 |
Front electrical prefuse box |
4L |
| F32f158 |
Prefuse 158 |
2K |
| F32f159 |
Prefuse 159 |
6K |
| F32f163 |
Prefuse 163 |
2K |
| F32f164 |
Prefuse 164 |
6K |

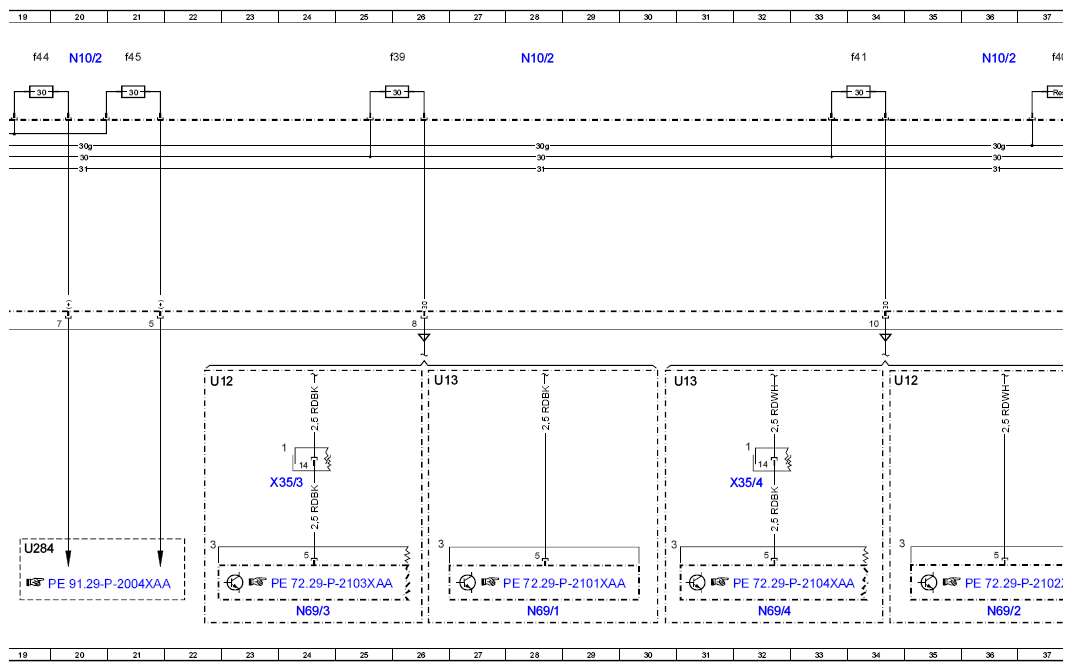

| N10/2 |
Rear SAM control unit with fuse and relay module |
12A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
20A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
28A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
36A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
49A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
4A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
44A |
| N10/2f39 |
Fuse 39 |
26A |
| N10/2f40 |
Fuse 40 |
37A |
| N10/2f41 |
Fuse 41 |
34A |
| N10/2f42 |
Fuse 42 |
40A |
| N10/2f43 |
Fuse 43 |
47A |
| N10/2f44 |
Fuse 44 |
19A |
| N10/2f45 |
Fuse 45 |
21A |
| N10/2f48 |
Fuse 48 |
16A |
| N10/2kD |
Fuel pump relay |
43A |
| N10/2kF |
Seat adjustment relay |
18A |

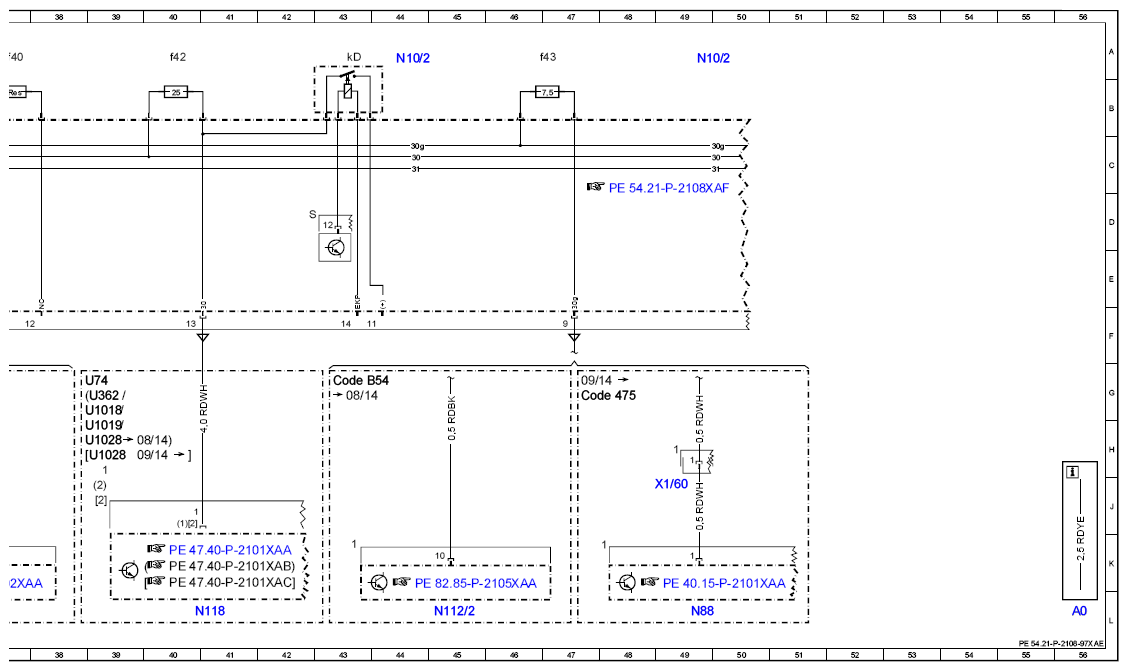

| N112/2 |
Telematics services communication module |
45L |
| N118 |
Fuel pump control unit |
41L |
| N69/1 |
Left front door control unit |
28L |
| N69/2 |
Right front door control unit |
36L |
| N69/3 |
Left rear door control unit |
24L |
| N69/4 |
Right rear door control unit |
32L |
| N88 |
Tire pressure monitor control unit |
49L |
| S62/43 |
Left engine hood contact switch |
10L |
| U1018 |
Valid for gasoline engine 276 |
38G |
| U1019 |
Valid for gasoline engine 278 |
38H |
| U1028 |
Valid for engine 157 |
38H |
| U1028 |
Valid for engine 157 |
39H |
| U12 |
Valid for left-hand drive vehicles |
22G |
| U12 |
Valid for left-hand drive vehicles |
34G |
| U13 |
Valid for right-hand drive vehicles |
26G |
| U13 |
Valid for right-hand drive vehicles |
30G |
| U240 |
Valid for all except ECO start/stop function |
1G |
| U284 |
Valid for fully electric seat adjustment |
19K |
| U362 |
Valid for gasoline engine 274 |
39G |
| U437 |
Valid without code (4U7) Start/stop voltage dip protection |
1G |
| U74 |
Valid for diesel engines |
38G |
| U880 |
Valid for diesel engine 642 |
7H |
| W15/2 |
Left footwell ground point |
10H |
| W7 |
Right rear wheel well ground point |
8H |
| X1/60 |
Tire pressure monitor electrical connector |
49J |
| X35/3 |
Left rear door electrical connector |
24J |
| X35/4 |
Right rear door electrical connector |
32J |
| X36/2 |
Fuel pump and vehicle rear wiring harness electrical connector |
12J |
| X36/3 |
Fuel pump harness electrical connector |
15J |
| Z6/56z2 |
Circuit 31 connector sleeve |
13H |
