| A0 |
Color code key |
72L |
| A80 |
Intelligent servo module for DIRECT SELECT |
59L |
| Code 4U7 |
Start/stop voltage dip protection |
1H |
| Code B03 |
ECO start/stop function |
1G |

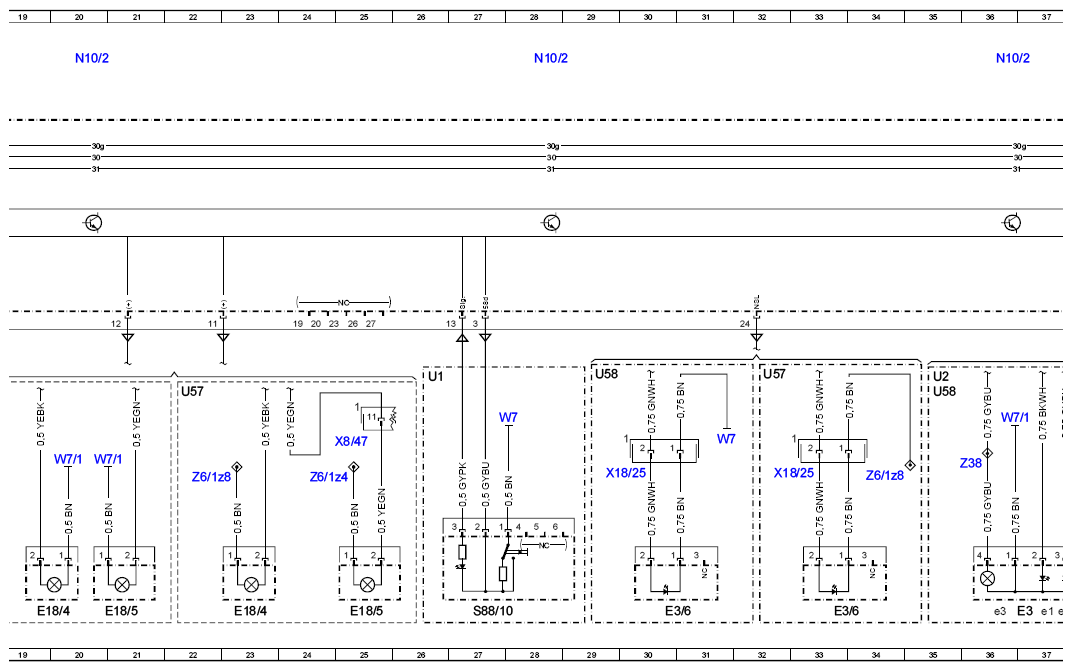

| E18/4 |
Right luggage compartment lamp |
19L |
| E18/4 |
Right luggage compartment lamp |
23L |
| E18/5 |
Left luggage compartment lamp |
21L |
| E18/5 |
Left luggage compartment lamp |
25L |
| E3 |
Left rear lamp unit |
37L |
| E3 |
Left rear lamp unit |
43L |
| E3 |
Left rear lamp unit |
51L |

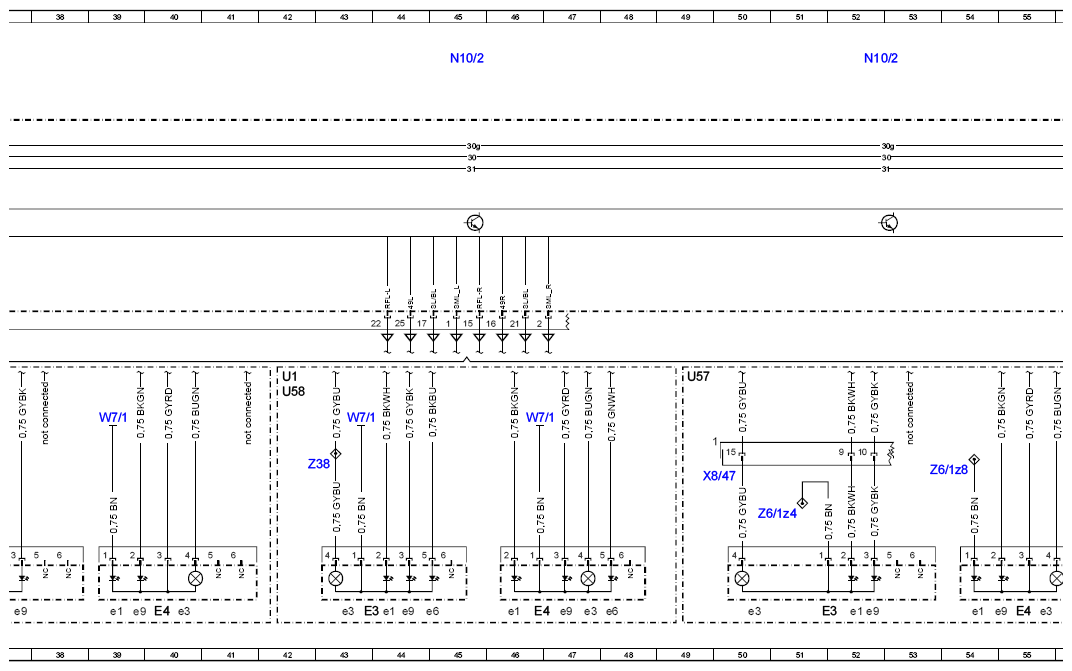

| E3/6 |
Rear fog lamp |
33L |
| E3/6 |
Rear fog lamp |
30L |
| E3e1 |
Left rear turn signal lamp |
37L |
| E3e1 |
Left rear turn signal lamp |
44L |
| E3e1 |
Left rear turn signal lamp |
52L |
| E3e3 |
Left backup lamp |
36L |
| E3e3 |
Left backup lamp |
43L |
| E3e3 |
Left backup lamp |
50L |
| E3e6 |
Left side-marker lamp |
44L |
| E3e9 |
Left stop lamp and taillamp and parking lamp |
37L |
| E3e9 |
Left stop lamp and taillamp and parking lamp |
44L |
| E3e9 |
Left stop lamp and taillamp and parking lamp |
52L |
| E4 |
Right rear lamp unit |
40L |
| E4 |
Right rear lamp unit |
46L |
| E4 |
Right rear lamp unit |
55L |
| E4e1 |
Right rear turn signal lamp |
39L |
| E4e1 |
Right rear turn signal lamp |
46L |
| E4e1 |
Right rear turn signal lamp |
54L |
| E4e3 |
Right backup lamp |
40L |
| E4e3 |
Right backup lamp |
47L |
| E4e3 |
Right backup lamp |
55L |
| E4e6 |
Right side-marker lamp |
48L |
| E4e9 |
Right stop lamp and taillamp and parking lamp |
39L |
| E4e9 |
Right stop lamp and taillamp and parking lamp |
47L |
| E4e9 |
Right stop lamp and taillamp and parking lamp |
54L |
| F32 |
Front electrical prefuse box |
4L |
| F32f158 |
Prefuse 158 |
2K |
| F32f159 |
Prefuse 159 |
6K |
| F32f163 |
Prefuse 163 |
2K |
| F32f164 |
Prefuse 164 |
6K |

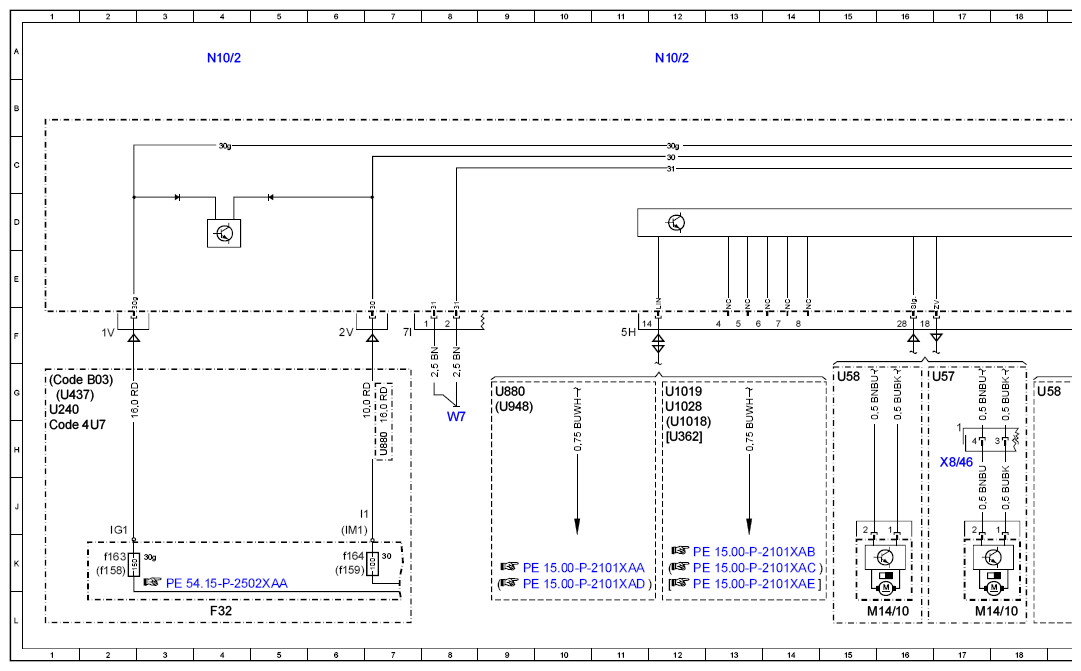

| M14/10 |
Tank cap central locking actuator |
16L |
| M14/10 |
Tank cap central locking actuator |
17L |

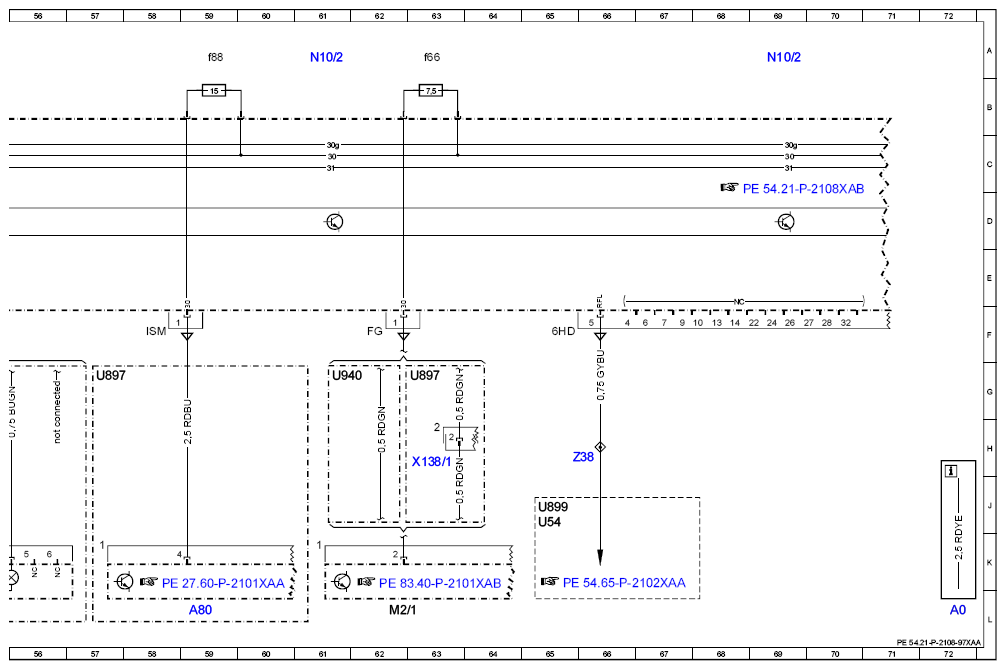

| M2/1 |
Rear blower motor |
62L |
| N10/2 |
Rear SAM control unit with fuse and relay module |
4A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
12A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
28A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
20A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
36A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
45A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
52A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
61A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
69A |
| N10/2f66 |
Fuse 66 |
63A |
| N10/2f88 |
Fuse 88 |
59A |
| S88/10 |
Trunk lid emergency opening switch |
27L |
| U1 |
Valid for USA |
26G |
| U1 |
Valid for USA |
42G |
| U1018 |
Valid for gasoline engine 276 |
12H |
| U1019 |
Valid for gasoline engine 278 |
12G |
| U1028 |
Valid for engine 157 |
12G |
| U2 |
Valid for all except USA |
35G |
| U240 |
Valid for all except ECO start/stop function |
1G |
| U362 |
Valid for gasoline engine 274 |
12H |
| U437 |
Valid without code (4U7) Start/stop voltage dip protection |
1G |
| U54 |
Valid for all except Japan |
65J |
| U57 |
Valid for model 218.9 |
16G |
| U57 |
Valid for model 218.9 |
22G |
| U57 |
Valid for model 218.9 |
32G |
| U57 |
Valid for model 218.9 |
49G |
| U58 |
Valid for model 218.3 |
15G |
| U58 |
Valid for model 218.3 |
18G |
| U58 |
Valid for model 218.3 |
29G |
| U58 |
Valid for model 218.3 |
35G |
| U58 |
Valid for model 218.3 |
42G |
| U880 |
Valid for diesel engine 642 |
7H |
| U880 |
Valid for diesel engine 642 |
9G |
| U897 |
Valid for intelligent servo module for DIRECT SELECT |
57G |
| U897 |
Valid for intelligent servo module for DIRECT SELECT |
63G |
| U899 |
Valid for backup camera |
65J |
| U940 |
Valid without DIRECT SELECT |
61G |
| U948 |
Valid for diesel engine 651 |
9G |
| W7 |
Right rear wheel well ground point |
8H |
| W7 |
Right rear wheel well ground point |
27H |
| W7 |
Right rear wheel well ground point |
31H |
| W7/1 |
Right taillamp trunk ground point |
20H |
| W7/1 |
Right taillamp trunk ground point |
20H |
| W7/1 |
Right taillamp trunk ground point |
36H |
| W7/1 |
Right taillamp trunk ground point |
39H |
| W7/1 |
Right taillamp trunk ground point |
43H |
| W7/1 |
Right taillamp trunk ground point |
46H |
| X138/1 |
Front center console electrical connector |
63H |
| X18/25 |
Rear fog lamp electrical connector |
30H |
| X18/25 |
Rear fog lamp electrical connector |
33H |
| X8/46 |
Right vehicle interior and trunk lid/liftgate electrical connector |
17H |
| X8/47 |
Left and right trunk lid/liftgate electrical connector |
25H |
| X8/47 |
Left and right trunk lid/liftgate electrical connector |
50J |
| Z38 |
Backup lamp connector sleeve |
36H |
| Z38 |
Backup lamp connector sleeve |
43H |
| Z38 |
Backup lamp connector sleeve |
66H |
| Z6/1z4 |
Circuit 31 connector sleeve |
24J |
| Z6/1z4 |
Circuit 31 connector sleeve |
51J |
| Z6/1z8 |
Circuit 31 connector sleeve |
22J |
| Z6/1z8 |
Circuit 31 connector sleeve |
34J |
| Z6/1z8 |
Circuit 31 connector sleeve |
54H |
