| A0 |
Color code key |
80L |
| A2 |
Radio |
17L |
| A2 |
Radio |
24L |
| A2/56 |
Radio with auto pilot system |
17L |
| A40/3 |
COMAND control unit |
21L |
| A40/3 |
COMAND control unit |
24L |

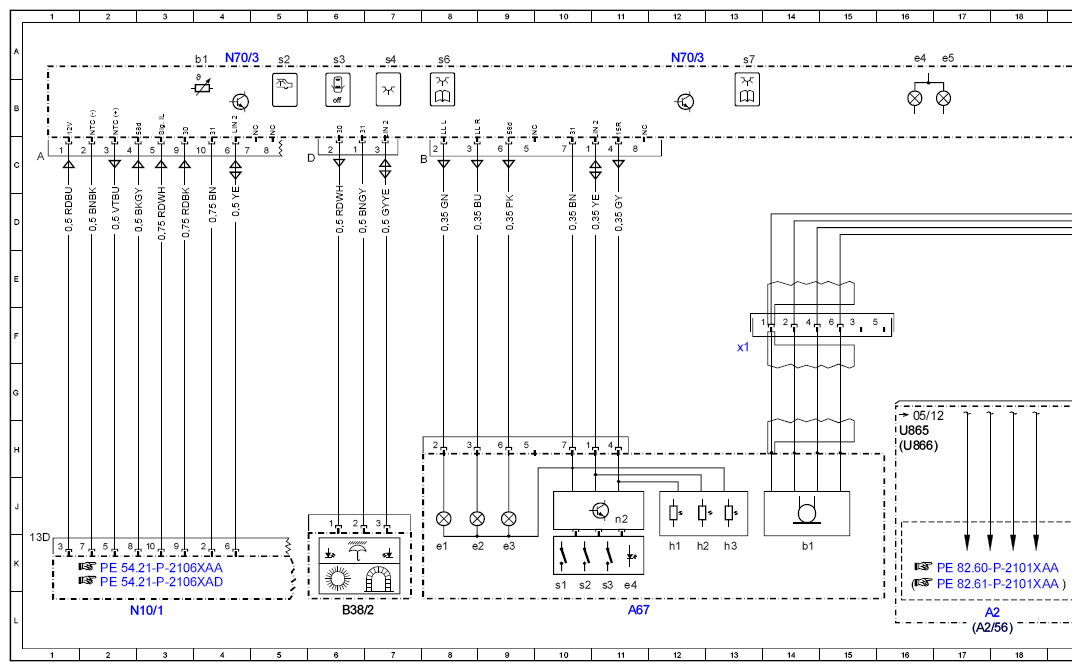

| A67 |
Inside rearview mirror |
11L |
| A67b1 |
Hands-free system microphone |
14K |
| A67b1x1 |
Hands-free system and LINGUATRONIC microphone electrical connector |
13F |
| A67e1 |
Left reading lamp |
8K |
| A67e2 |
Right reading lamp |
8K |
| A67e3 |
Ambient lamp |
9K |
| A67e4 |
Garage door opener indicator lamp |
11K |
| A67h1 |
Forward automatic dimming mirror light sensor |
12K |
| A67h2 |
Rearward automatic dimming mirror light sensor |
12K |
| A67h3 |
Automatic dimming mirror |
13K |
| A67n2 |
Garage door opener |
11J |
| A67s1 |
Garage door opener button 1 |
10K |
| A67s2 |
Garage door opener button 2 |
10K |
| A67s3 |
Garage door opener button 3 |
11K |
| B38/2 |
Rain/light sensor |
6L |
| Code 348 |
Emergency ca11/assistance system |
53A |
| Code 350 |
Ecall Europe emergency call system |
61G |
| Code 359 |
TELEAID emergency call system |
53A |
| Code 360 |
HERMES UMTS |
66A |
| Code 362 |
HERMES LTE |
66A |

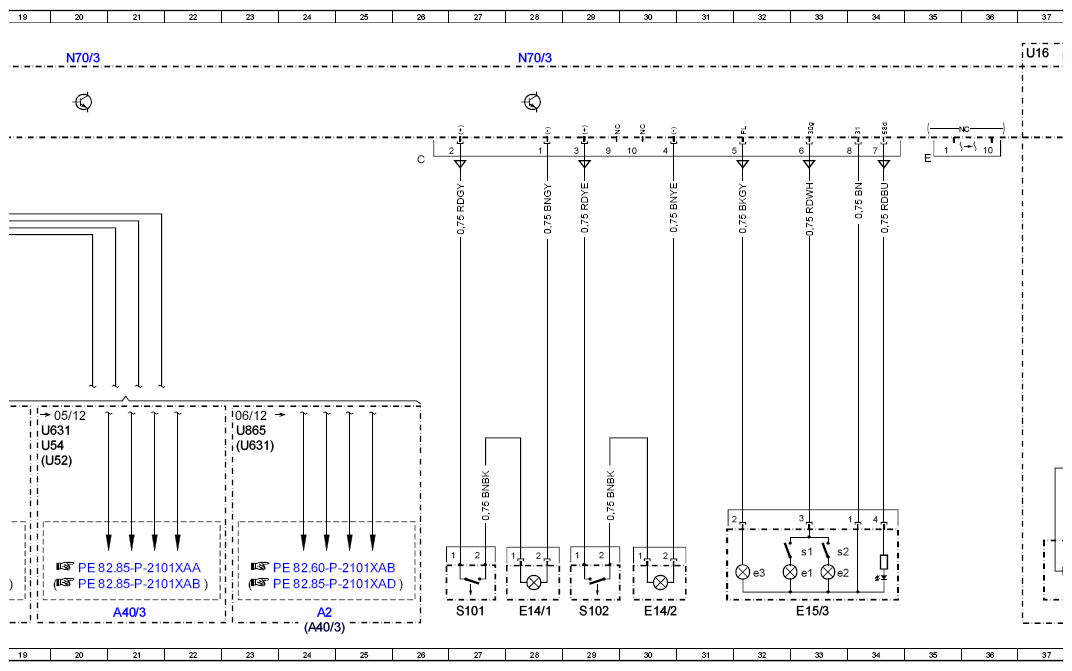

| E14/1 |
Left sun visor mirror lamp |
28L |
| E14/2 |
Right sun visor mirror lamp |
30L |
| E15/3 |
Rear dome lamp |
33L |
| E15/3e1 |
Left rear reading lamp |
33K |
| E15/3e2 |
Right rear reading lamp |
33K |
| E15/3e3 |
Rear interior lamp |
32K |
| E15/3s1 |
Left rear reading lamp switch |
33K |
| E15/3s2 |
Right rear reading lamp switch |
33K |
| N10/1 |
Front SAM control unit with fuse and relay module |
3L |
| N10/1 |
Front SAM control unit with fuse and relay module |
55L |
| N10/1 |
Front SAM control unit with fuse and relay module |
68L |
| N10/2 |
Rear SAM control unit with fuse and relay module |
50L |
| N10/2f46 |
Fuse 46 |
49L |

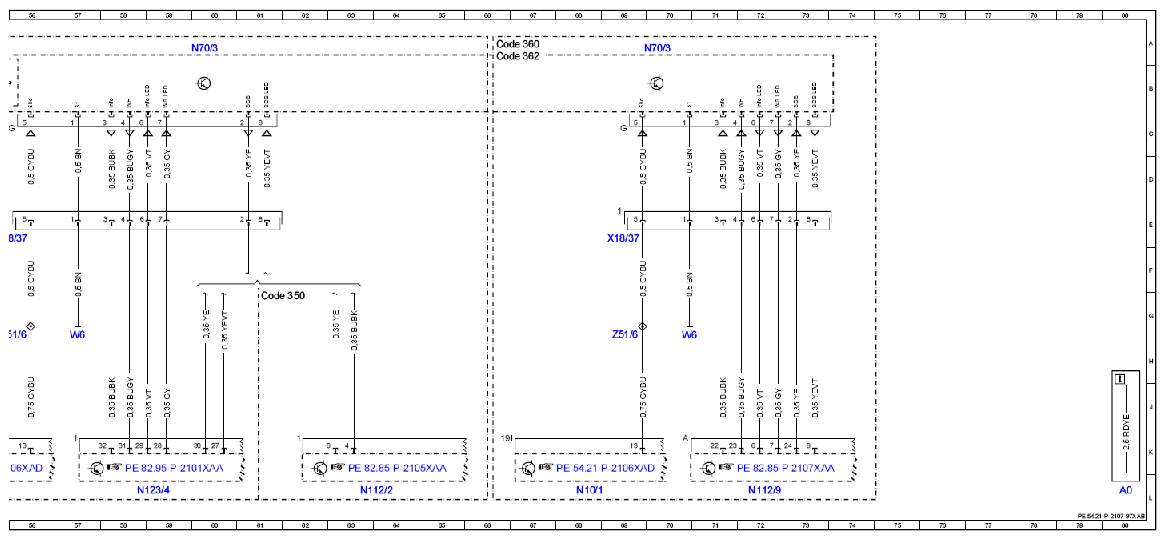

| N112/2 |
Telematics services communication module |
63L |
| N112/9 |
HERMES control unit |
72L |
| N123/4 |
Emergency call system control unit |
58L |
| N26/6 |
Interior protection and tow-away protection control unit |
42L |
| N26/6a1 |
Interior protection receiver |
37L |
| N26/6b1 |
Left interior protection transmitter |
46L |
| N26/6b2 |
Right interior protection transmitter |
47L |

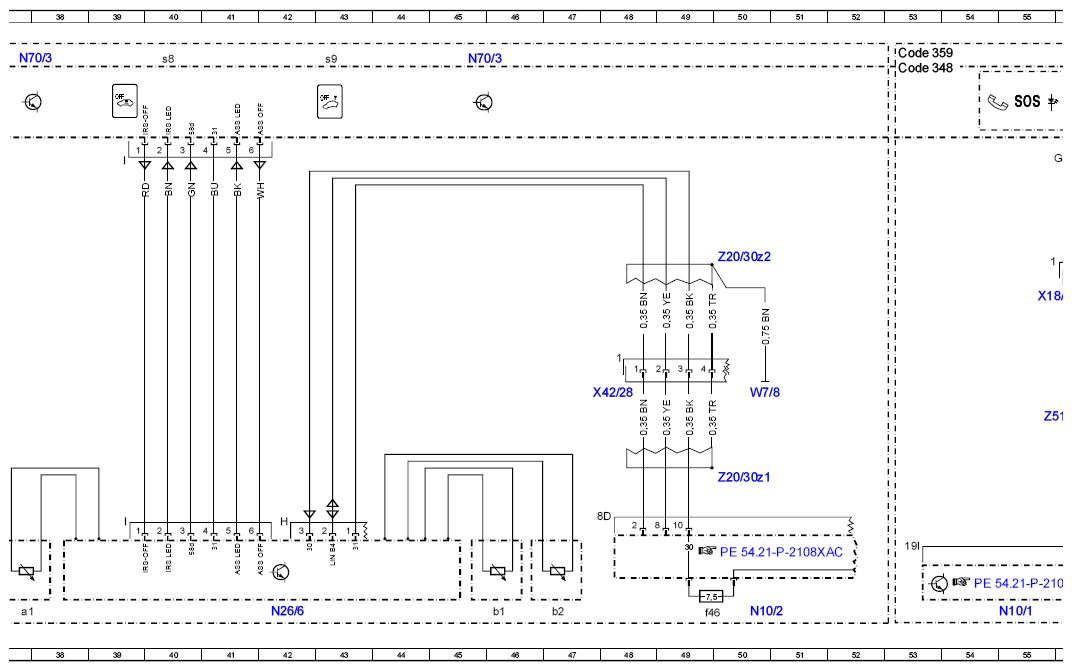

| N70/3 |
Overhead control panel electronics |
4A |
| N70/3 |
Overhead control panel electronics |
12A |
| N70/3 |
Overhead control panel electronics |
28A |
| N70/3 |
Overhead control panel electronics |
20A |
| N70/3 |
Overhead control panel electronics |
37A |
| N70/3 |
Overhead control panel electronics |
45A |
| N70/3 |
Overhead control panel electronics |
60A |
| N70/3 |
Overhead control panel electronics |
70A |
| N70/3b1 |
Interior temperature sensor with integrated fan |
4A |
| N70/3e4 |
Left front interior lamp |
16A |
| N70/3e5 |
Right front interior lamp |
17A |
| N70/3s2 |
Rear dome lamp switch |
5A |
| N70/3s3 |
Interior lamp automatic function switch |
6A |
| N70/3s4 |
Front dome lamp switch |
7A |
| N70/3s6 |
Left front reading lamp switch |
8A |
| N70/3s7 |
Right front reading lamp switch |
13A |
| N70/3s8 |
Interior protection switch |
40A |
| N70/3s9 |
Towing sensor button |
43A |
| S101 |
Left front mirror lamp switch |
27L |
| S102 |
Right front mirror lamp switch |
29L |
| U16 |
Valid for ATA [EDW] with tow-away protection and interior protection |
37A |
| U52 |
Valid for Japan |
19H |
| U54 |
Valid for all except Japan |
19H |
| U631 |
Valid for COMAND |
23H |
| U631 |
Valid for COMAND |
19H |
| U865 |
Valid for Audio 20 |
16H |
| U865 |
Valid for Audio 20 |
23H |
| U866 |
Valid for Audio 50 |
16H |
| W6 |
Left rear wheel well ground point |
57H |
| W6 |
Left rear wheel well ground point |
70H |
| W7/8 |
Right wheel house trunk ground point |
50G |
| X18/37 |
Emergency call system button electrical connector |
56E |
| X18/37 |
Emergency call system button electrical connector |
69E |
| X42/28 |
Interior protection electrical connector |
48G |
| Z20/30z1 |
Tracer wire connector sleeve |
50J |
| Z20/30z2 |
Tracer wire connector sleeve |
50E |
| Z51/6 |
Circuit 58d vehicle interior connector sleeve |
56G |
| Z51/6 |
Circuit 58d vehicle interior connector sleeve |
69G |
