Remove/Install Light Switch Module - AR54.25-P-3270EW

MODEL 117, 156, 176, 218, 242, 246

MODEL 190

MODEL 204 as of 6/1/10, 207 as of 6/1/10

MODEL 212.0 as of 12/1/09, 212.1/2

Shown on MODEL 212.2

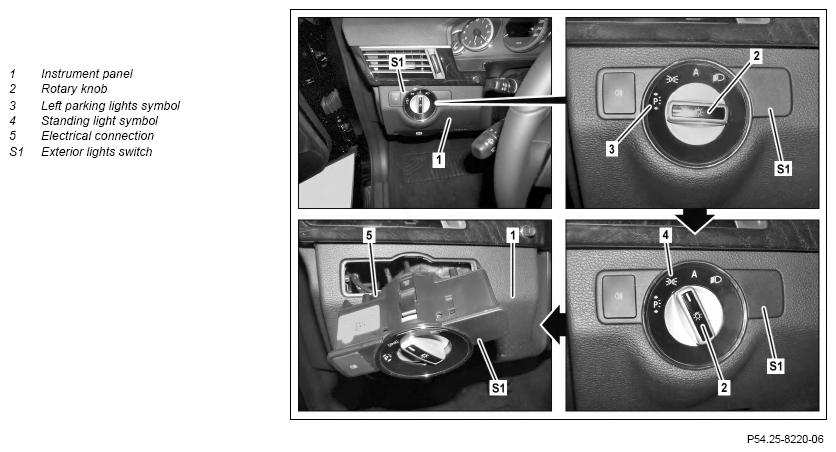

Fig 1: Light Switch Module Components Location - MODEL 117, 156, 176, 218, 242, 246, 190, 204, 212.0

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Unlock exterior lights switch (S1)	For this, turn the exterior lights switch (S1) to the left parking lights symbol (3) and push in. Subsequently turn back rotary knob (2) in the pressed-in condition to standing light symbol (4).
2	Pull exterior lights switch (S1) out of the instrument panel (1) and disconnect the electrical connection (5)
3	Install in the reverse order
