Remove/install crankshaft Hall sensor - AR15.12-P-2136MTA
ENGINE 133 in MODEL 117, 156, 176
| Remove/install | |||
| 1 | Remove bottom engine compartment paneling | AR61.20-P-1105NKB | |

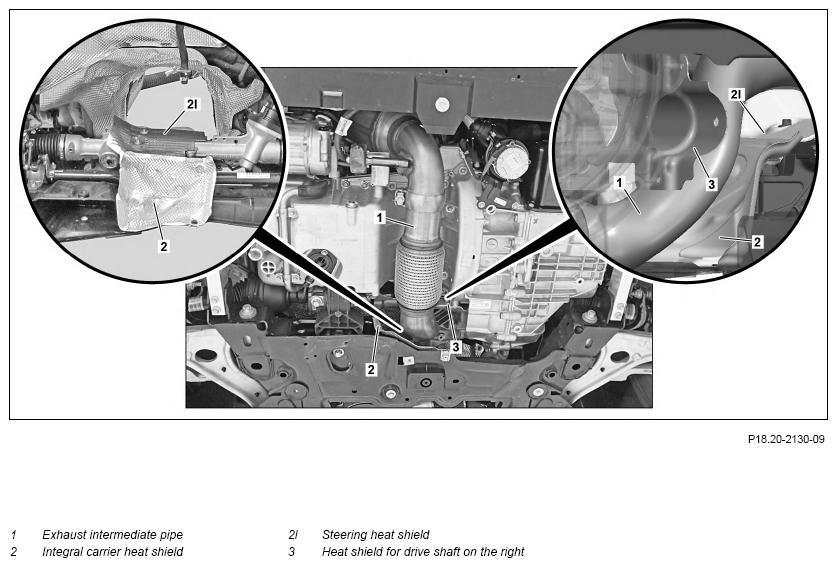

| 2 | Remove integral carrier heat shield (2) | ||
| 3 | Detach steering heat shield (2l) and place to one side | ||
| 4 | Remove drive shaft heat shield on the right (3) | ||

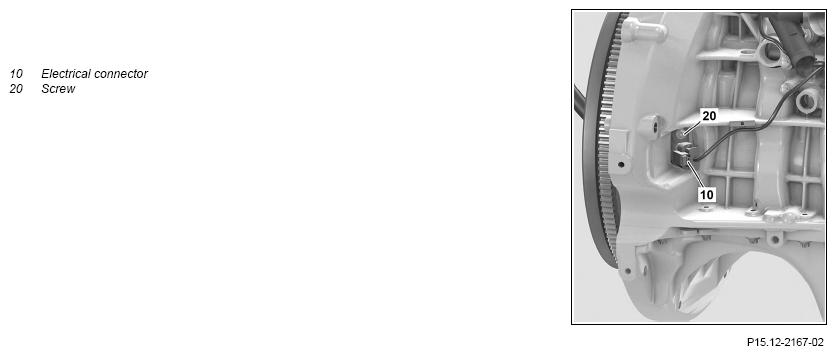

| 5 | Disconnect Electrical connection (10) | ||
| 6 | Remove screw/bolt (20) and crankshaft Hall sensor | *BA15.10-P-1001-03I | |
| 7 | Install in the reverse order | ||
| Check | |||
| 8 | Read out fault memory using the diagnostic system and delete | ||
| AD00.00-P-2000-04A | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 9 | Carry out an engine test run |
POSITION SENSOR
| Number | Designation | ENGINE 133 | |
|---|---|---|---|
| BA15.10-P-1001-03I | Screw/bolt, crankshaft position sensor to crankcase | Nm | 9 |
