Power Flow In 5th Gear, Function - GF27.10-P-3015AHE
TRANSMISSION 722.9 (except 722.930) in MODEL 205

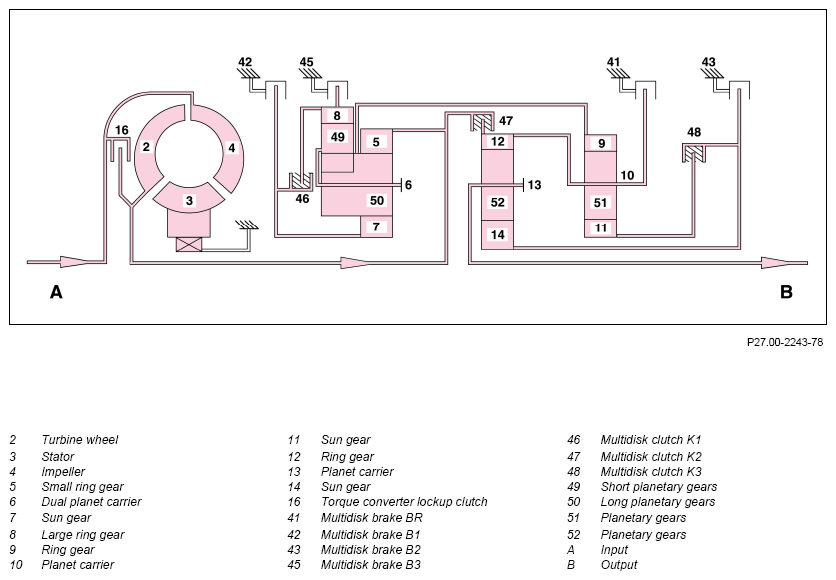

Illustration shows power flow
Function requirements for power flow in 5th gear, general
- Circuit 87 (connected circuit 15) ON
- Engine running
Power flow in 5th gear, general
The following multidisk clutches are engaged:
- Multidisk clutch K1 (46)
- Multidisk clutch K2 (47)
- Multidisk clutch K3 (48)
In 5th gear, power flows from the input shaft through the blocked Ravigneaux gear set and blocked front single planetary gear set to the main shaft. This rotates at the input speed in the direction of rotation of the engine.
