Remove/Install Wheel Sensor - AR40.15-P-0080EW

Model 117, 156, 166, 172, 176, 205, 207, 212, 213, 217, 218, 222, 231, 238, 242, 246, 253, 292 with code 475 (tire pressure monitoring system)

Model 190

Courtesy of MERCEDES-BENZ USA

	Remove

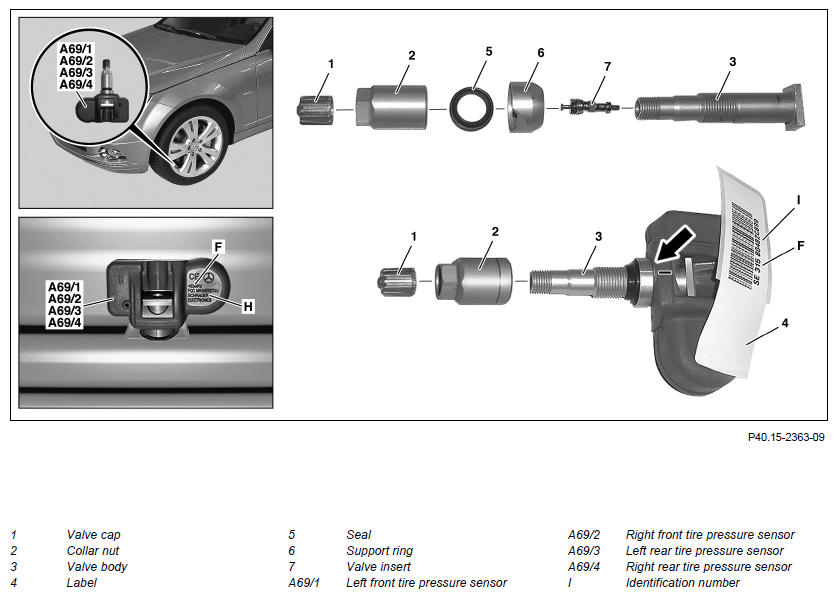

1	Unscrew valve cap (1)
2	Detach tire	Model 190 with code 475 (tire pressure monitoring system)	AR40.10-P-1030RG
		Model 222 with code Z07 (Top protection)	AR40.10-P-1030LFS
		Model 117, 156, 166, 172, 176, 205, 207, 212, 213, 217, 218, 231, 238, 242, 246, 253, 292 with code 475 (tire pressure monitoring system) Model 222 with code 475 (tire pressure monitoring system) except code Z07 (Top protection)	AR40.10-P-1030EW
3	Unscrew collar nut (2) from valve body (3) and remove
4	Remove tire pressure sensor (A69/1, A69/2, A69/3, A69/4) with valve body (3) from disk wheel
5	Remove seal (5) and support ring (6) from valve body (3)
6	Unscrew valve body (3) from tire pressure sensor (A69/1, A69/2, A69/3, A69/4)	When reusing tire pressure sensor (A69/1, A69/2, A69/3, A69/4).
	Clean
7	Clean tire pressure sensor (A69/1, A69/2, A69/3, A69/4)	When reusing tire pressure sensor (A69/1, A69/2, A69/3, A69/4). Only remove dirt with a clean, lint-free cloth. Do not use compressed air, solvent or cleaner. Otherwise, the tire pressure sensor may be damaged. The tire pressure sensor (A69/1, A69/2, A69/3, A69/4) can also be reused after the TIREFIT tire repair kit has been used.
8	Clean the disk wheel in the area of the valve bore
	Install
9	Detach label (4) with identification number (I) from tire pressure sensor (A69/1, A69/2, A69/3, A69/4) and stick in service booklet	When replacing tire pressure sensor (A69/1, A69/2, A69/3, A69/4).
10	Replace valve body (3) and valve element (7)	When reusing tire pressure sensor (A69/1, A69/2, A69/3, A69/4). Insert the square of the valve body (3) into the guide on the tire pressure sensor (A69/1, A69/2, A69/3, A69/4) so that this is fixed in position.
11	Mount support ring (6) and seal (5) on valve body (3)	The cone on the support ring (6) must be seated correctly in the contour of the tire pressure sensor (A69/1, A69/2, A69/3, A69/4). Observe installation position (see arrow).
12	Insert valve body (3) with freely moving tire pressure sensor (A69/1, A69/2, A69/3, A69/4) from inside to outside into valve bore of disk wheel
13	Tighten collar nut (2) on valve body (3)	When tightening the collar nut (2), press the tire pressure sensor (A69/1, A69/2, A69/3, A69/4) lightly into the drop center and press toward the valve bore of the disk wheel. Model 172, 207, 212, 217, 218, 222, 231 with code 475 (Tire pressure monitor) Valve nut to valve body	BA40.15-P-1001-01F
		Model 166, 292 with code 475 (tire pressure monitoring system) Valve nut to valve body	BA40.15-P-1001-01E
		Model 117, 156, 176, 205, 213, 242, 246, 253 with code 475 (tire pressure monitoring system) Valve nut to valve body for tire pressure sensor	*BA40.15-P-1001-01J
		Model 190 with code 475 (tire pressure monitoring system) Valve nut to valve body	BA40.15-P-1001-01H
		Model 238 with code 475 (tire pressure monitoring system) Valve nut to valve body for tire pressure sensor	BA40.15-P-1001-01K
14	Mount tire	Model 190	AR40.10-P-1030RG
		Model 222 with code 475 (tire pressure monitoring system) with code Z07 (Top protection)	AR40.10-P-1030LFS
		Model 117, 156, 166, 172, 176, 205, 207, 212, 213, 217, 218, 231, 238, 242, 246, 253, 292 with code 475 (tire pressure monitoring system) Model 222 with code 475 (tire pressure monitoring system) except code Z07 (Top protection)	AR40.10-P-1030EW
15	Screw on valve cap (1)	Only use plastic valve caps (1). Otherwise corrosion damage may occur.
16	Restart tire pressure monitor	When replacing tire pressure sensor (A69/1, A69/2, A69/3, A69/4). Model 292 with code 475 (tire pressure monitoring system)	AR54.30-P-1001-01GQC
		Model 117, 156, 176, 242, 246 with code 475 (tire pressure monitoring system)	AR54.30-P-1001-01RAE
		Model 190 Model 217, 222 with code 475 (tire pressure monitoring system)	AR54.30-P-1001-01LC
		Model 166, 172, 205, 207, 212, 218, 231, 253 with code 475 (tire pressure monitoring system)	AR54.30-P-1000-02RAU
		Model 213, 238 with code 475 (tire pressure monitoring system)	AR54.30-P-1001-01LWE

TIRE PRESSURE AND MONITORING

Number	Designation		Model 166 with code 475 (tire pressure monitoring system)	Model 292 with code 475 (tire pressure monitoring system)
BA40.15-P-1001-01E	Valve nut to valve body	Nm	8	8

TIRE PRESSURE AND MONITORING

Number	Designation		Model 172 with Schrader system	Model 207 with Schrader system
BA40.15-P-1001-01F	Valve nut to valve body	Nm	8	8

TIRE PRESSURE AND MONITORING

Number	Designation		Model 212 with Schrader system	Model 217 with Schrader system
BA40.15-P-1001-01F	Valve nut to valve body	Nm	8	8

TIRE PRESSURE AND MONITORING

Number	Designation		MODEL 218 with Schrader system	Model 222 with Schrader system
BA40.15-P-1001-01F	Valve nut to valve body	Nm	8	8

TIRE PRESSURE AND MONITORING

Number	Designation		Model 231 with Schrader system
BA40.15-P-1001-01F	Valve nut to valve body	Nm	8

TIRE PRESSURE MONITORING

Number	Designation		Model 190 with code 475 (tire pressure monitoring system)
BA40.15-P-1001-01H	Valve nut to valve body	Nm	8

TIRE PRESSURE AND MONITORING

Number	Designation		Model 117, 156, 176, 242, 246	Model 205
BA40.15-P-1001-01J	Valve nut to valve body for tire pressure sensor	Nm	8	8

TIRE PRESSURE AND MONITORING

Number	Designation		Model 213	Model 253
BA40.15-P-1001-01J	Valve nut to valve body for tire pressure sensor	Nm	8	8

TIRE PRESSURE AND MONITORING

Number	Designation		Model 238
BA40.15-P-1001-01K	Valve nut to valve body for tire pressure sensor	Nm	8
