Caster Values, Form - OF40.20-P-3000-00LW

Model 205

MODIFICATION NOTES

18.04.2016 AMG data adjusted for current suspension data

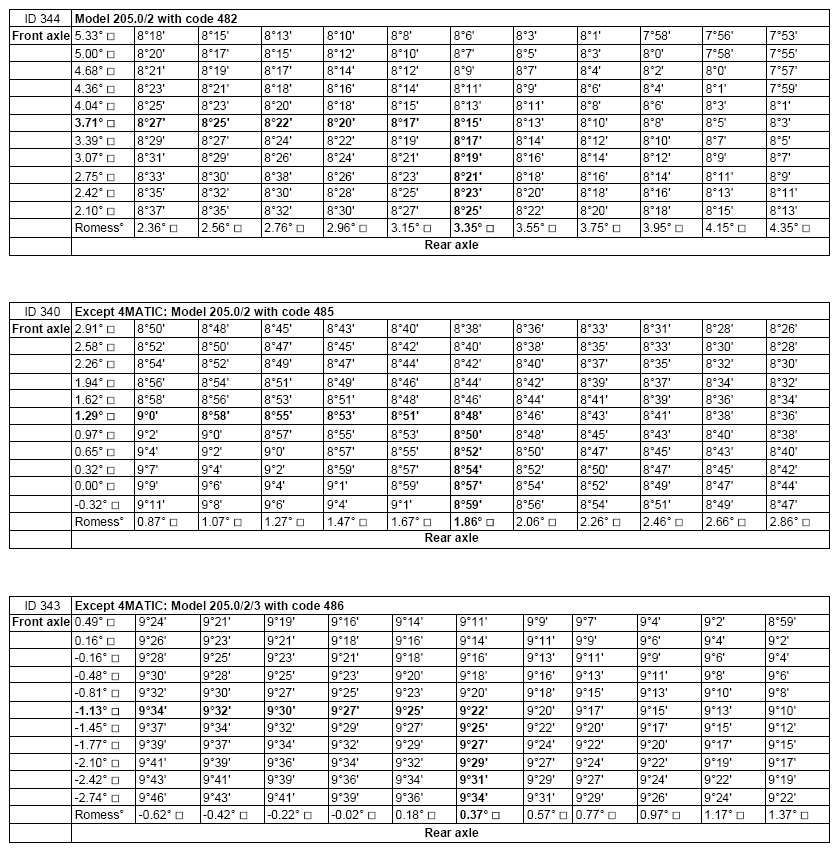

G13025037Courtesy of MERCEDES-BENZ USA

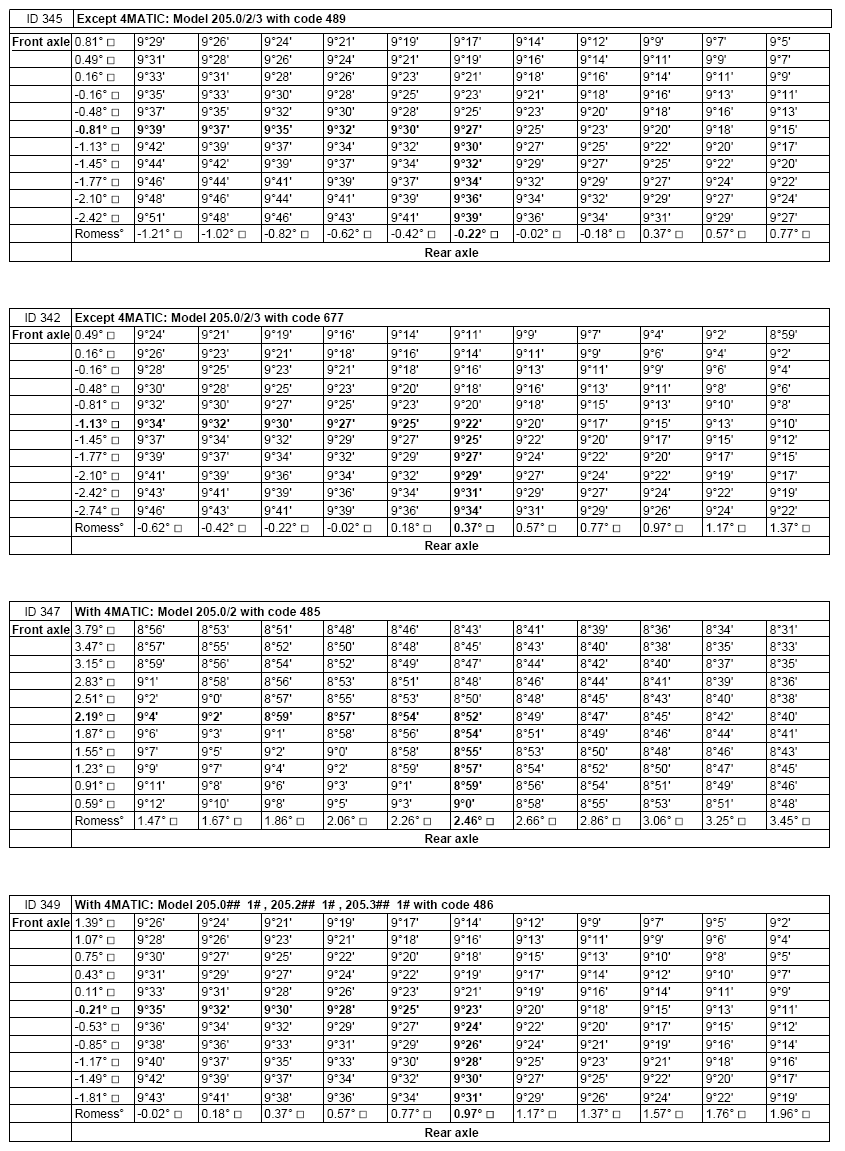

G13025038Courtesy of MERCEDES-BENZ USA

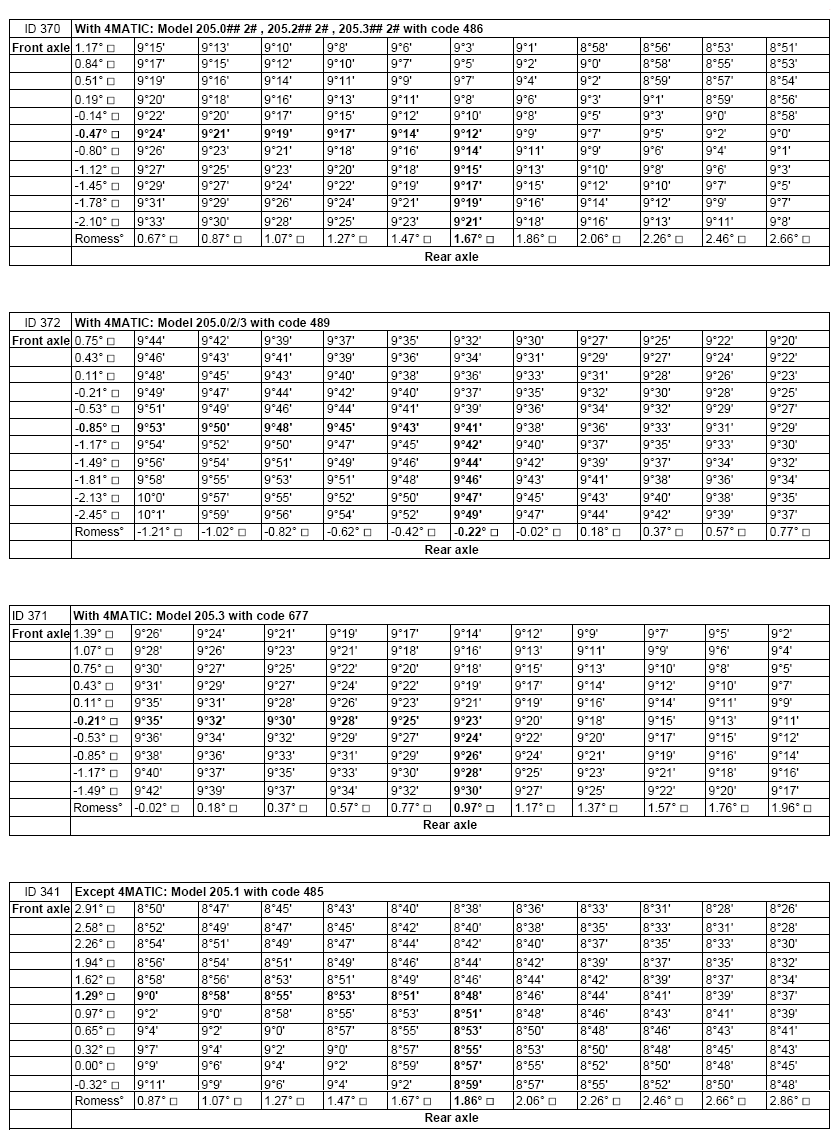

G13025039Courtesy of MERCEDES-BENZ USA

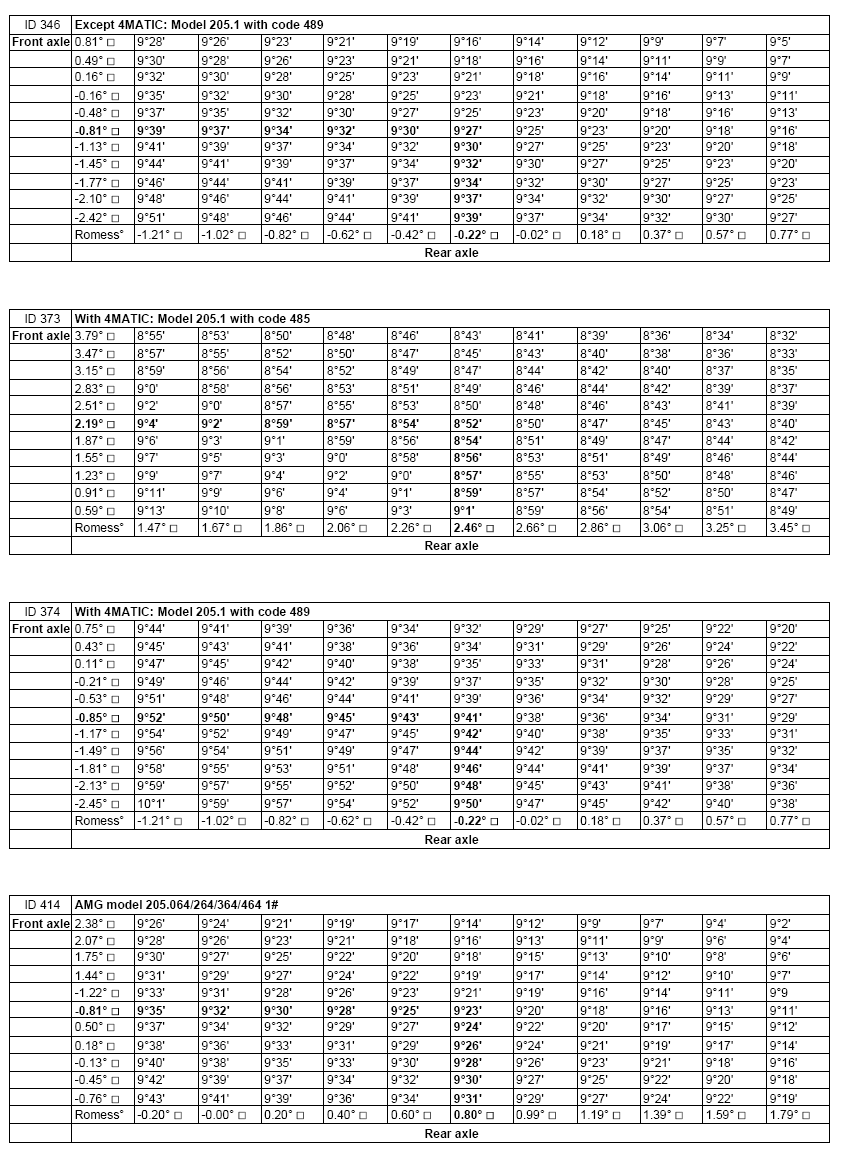

G13025040Courtesy of MERCEDES-BENZ USA

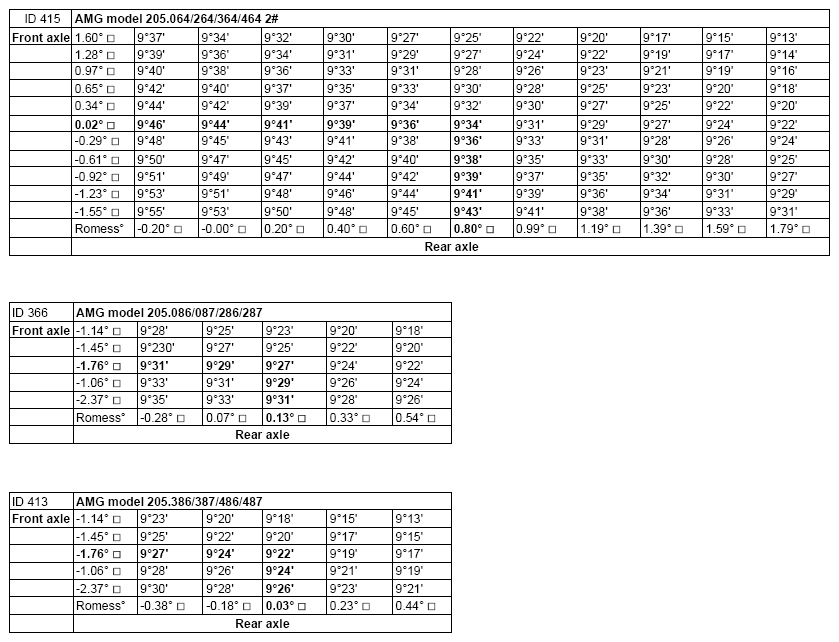

G13025041Courtesy of MERCEDES-BENZ USA
