Rim Designation - GF40.10-P-1010-01A

Model All

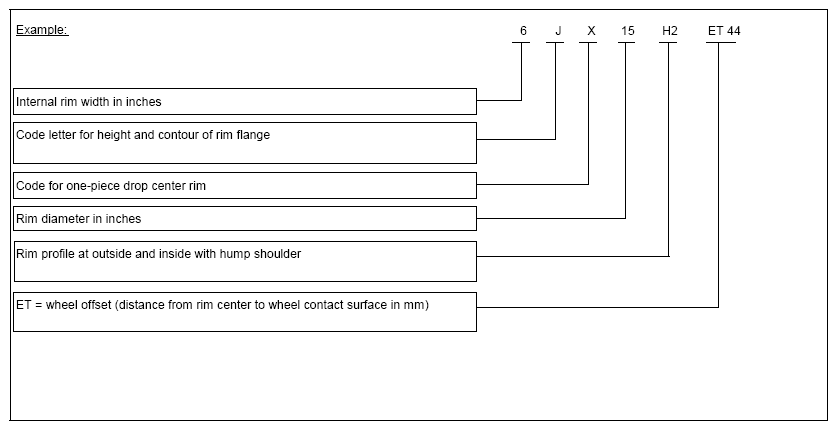

G12665293Courtesy of MERCEDES-BENZ USA

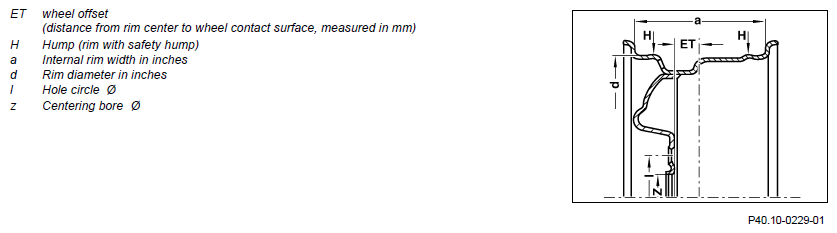

G12937807Courtesy of MERCEDES-BENZ USA

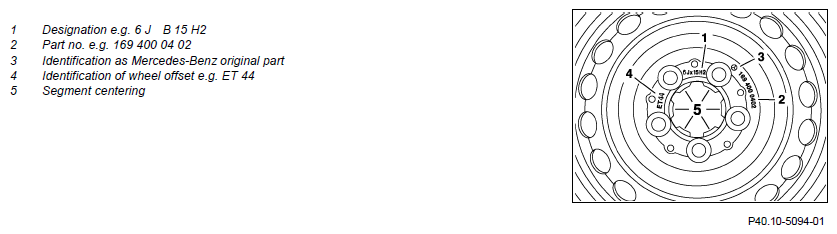

Sheet-steel disk wheel

G12937808Courtesy of MERCEDES-BENZ USA

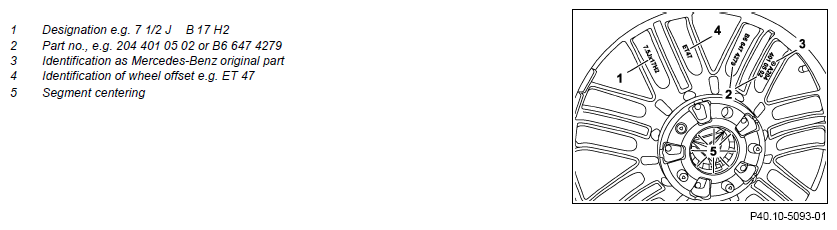

Light alloy rim

G12937809Courtesy of MERCEDES-BENZ USA
