Remove/install regulator for alternator - AR15.40-P-5760NKB

ENGINE 270 in MODEL 242

ENGINE 270, 607, 651 in MODEL 117

ENGINE 270, 607, 651 in MODEL 156

ENGINE 270, 607, 651 in MODEL 176

ENGINE 270, 607, 651 in MODEL 246

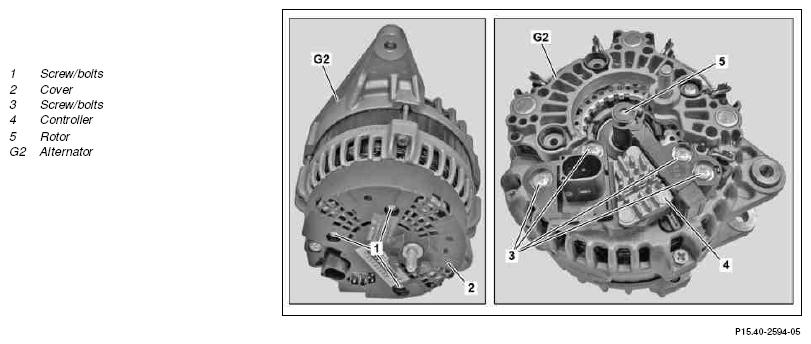

Fig 1: Identifying Alternator Regulator Remove/Install Component (1 Of 2)

Courtesy of MERCEDES-BENZ USA

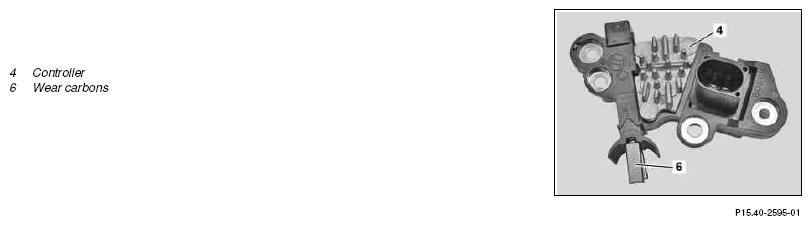

Fig 2: Identifying Alternator Regulator Remove/Install Component (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove alternator (G2)	ENGINE 607 in MODEL 117, 156, 176, 246	AR15.40-P-5032ORA
		ENGINE 270 in MODEL 117, 156, 176, 242, 246	AR15.40-P-5032MT
		ENGINE 651 in MODEL 117, 156, 176, 246	AR15.40-P-5032OLB
2	Remove screw/bolts (1) and remove cover (2)
3	Remove screws/bolts (3) and remove control (4)	Install control (4) carefully. The wear carbons (6) will be damaged otherwise.
		ENGINE 270 in MODEL 117, 156, 176, 242, 246	*BA15.40-P-1005-01F
		ENGINE 607 in MODEL 117, 156, 176, 246 ENGINE 651 in MODEL 117, 156, 176, 246	*BA15.40-P-1005-01Q
4	Install in the reverse order
