Check regulator and alternator - AR15.40-P-5000NKB
ENGINE 270 in MODEL 117, 156, 176, 242, 246
ENGINE 607 in MODEL 117, 156, 176, 246
ENGINE 651 in MODEL 117, 156, 176, 246
Shown on model 246.242
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| Check | |||
| 1 | Check status of battery | AR54.10-P-1129NKB | |
| 2 | Open cap on diagnostic connector (X11/4) | ||

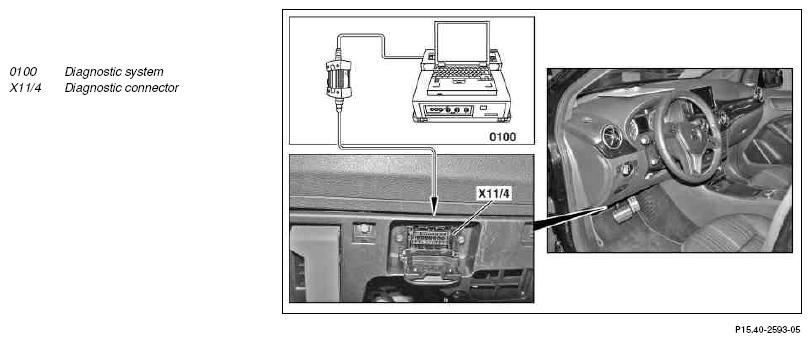

| 3 | Attach diagnostic system (0100) at the diagnostic connector (X11/4) | ||
| AD00.00-P-2000-04A | |||
| 4 | Check alternator with diagnostic system (0100) | Tests are menu-assisted: control unit
|
|
| 5 | Disconnect diagnostic system (0100) | ||
| AD00.00-P-2000-04A | |||
| 6 | Close cap on diagnostic connector (X11/4) |
