Remove/install camshaft Hall sensor - AR15.10-P-2000RKC

ENGINE 279 in MODEL 231

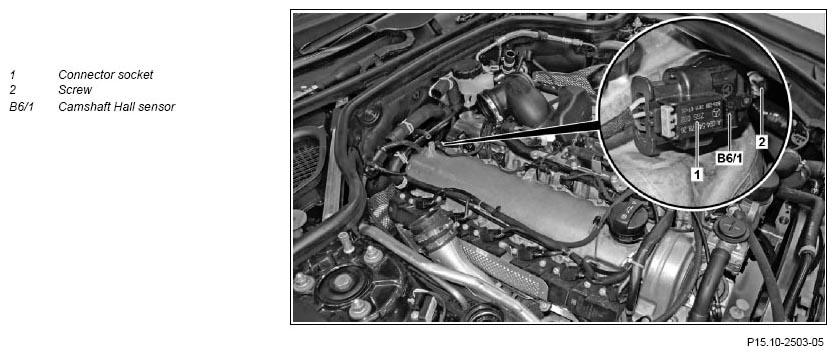

Fig 1: Camshaft Hall Sensor Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
1	Detach right charge air cooler from engine and connect with connected coolant hoses to engine hood	Do not open the low temperature circuit.	AR09.41-P-6817RKC
2	Detach connector socket (1)
3	Remove camshaft Hall sensor (B6/1)	Removal:  To do this, remove screw/bolt (2). Check sealing ring and replace if necessary. Bolt, Hall sensor for camshaft to cylinder head cover	*BA15.10-P-1002-03K
4	Install in the reverse order
	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
5	Check for oil leaks with engine running
6	Read out fault memory and erase if necessary
			AD00.00-P-2000-04A

POSITION SENSOR

Number	Designation		ENGINE 279
BA15.10-P-1002-03K	Bolt, Hall sensor for camshaft to cylinder head cover	Nm	8
