Remove/install ignition coils - AR15.12-P-2003RKC

ENGINE 279 in MODEL 231

ENGINE 279 in MODEL 463

Shown on model 231 on the right cylinder bank

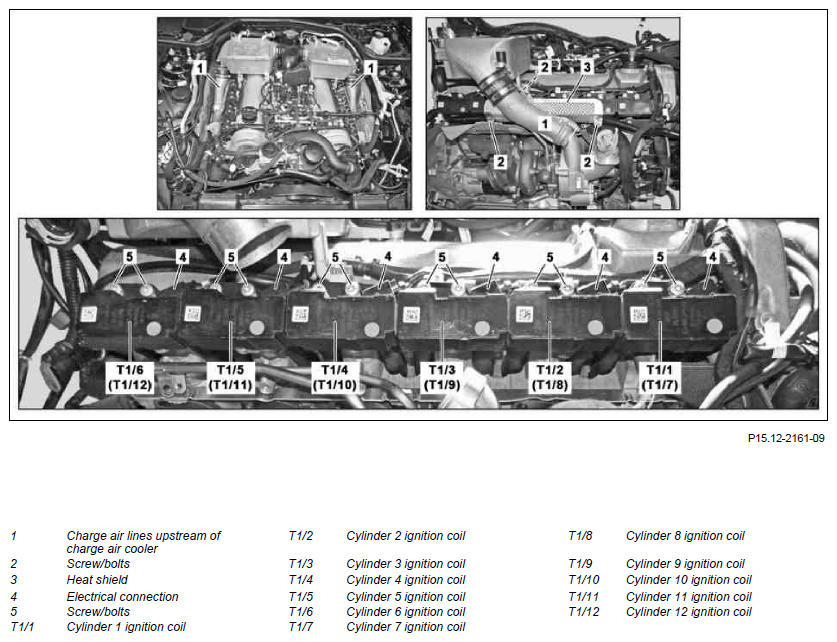

Fig 1: Ignition Coils Remove/Install Components - Shown On Model 231

Courtesy of MERCEDES-BENZ USA

	Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of death  caused by contact with parts conducting high voltages.	Do not touch parts which conduct high voltages. Persons who have electronic implants (e.g. cardiac pacemakers) may not perform any work on the ignition system.	AS15.10-Z-0001-01A
	Notes on avoiding damage to ignition system		AH15.10-P-0002-01L
	Remove/install
1	Remove left or right air filter housing	Engine 279 in model 231 Engine 279 in model 463 Engine 279 in model 231 with code 460 (Canada version) with code 494 (US version)	AR09.10-P-1150MUC
		Engine 279 in model 231 except code 460 (Canada version) except code 494 (US version)	AR09.10-P-1150RKC
2	Remove left or right charge air line upstream of charge air cooler (1) at ATL	Engine 279 in model 231 Engine 279 in model 463
		Engine 279 in model 231	AR09.41-P-8620RKC
3	Remove left or right charge air cooler and place with attached lines to one side	Engine 279 in model 231 Engine 279 in model 463
		Engine 279 in model 231	AR09.41-P-6817RKC
4	Remove screw/bolts (2) and remove heat shield (3)	On the appropriate side.
		Screw/bolt for ignition coil heat shield	*BA15.10-P-1002-04C
5	Disconnect electrical connection (4) at the respective ignition coil (T1/1 to T1/12)
6	Remove screw/bolts (5) at the respective ignition coil (T1/1 to T1/12)	Screw/bolt, ignition coil to cylinder head cover	*BA15.10-P-1001-04C
7	Detach the respective ignition coil (T1/1 to T1/12) upwards and remove
8	Detach the respective ignition coil (T1/1 to T1/12) upwards and remove	To reduce the force required for plugging/unplugging the spark plug connector grease must be applied before installation of the spark plug connector. The spark plug connector will be damaged otherwise during renewed removal. Apply about 1 g of spark plug connector grease in the spark plug connector.
		Spark plug connector grease	*BR00.45-Z-1102-06A
	Check
9	Check the respective ignition coil (T1/1 to T1/12) with spark plug connector for damage and replace if necessary
10	Install in the reverse order
11	Read out fault memory using the diagnostic system and clear if necessary
			AD00.00-P-2000-04A
