Remove/install ignition coils - AR15.12-P-2003RK

ENGINE 157, 276, 278 in MODEL 231

Shown on engine 276

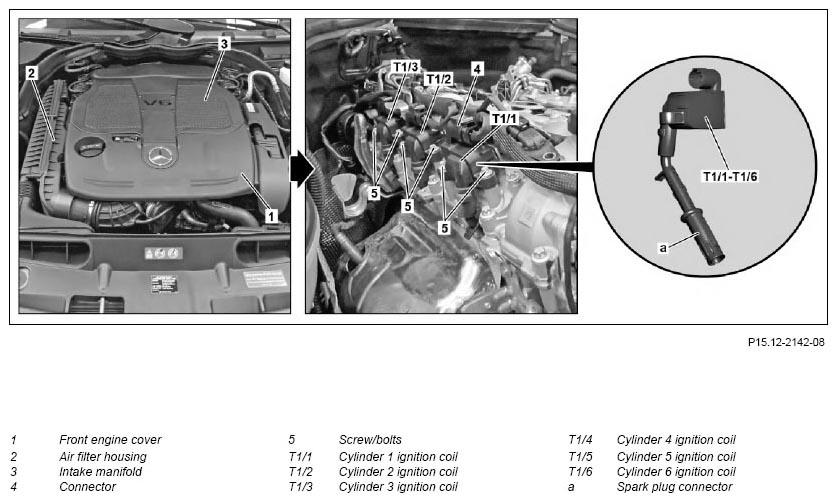

Fig 1: Ignition Coils Remove/Install Components - Shown On Engine 276

Courtesy of MERCEDES-BENZ USA

	Risk of death  caused by contact with parts conducting high voltages.	Do not touch parts which conduct high voltages. Persons who have electronic implants (e.g. cardiac pacemakers) may not perform any work on the ignition system.	AS15.10-Z-0001-01A
	Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Notes on avoiding damage to ignition system		AH15.10-P-0002-01V
	Remove/install
2.1	Remove intake manifold (3)	Engine 276.9 in model 231	AR09.20-P-1961RKA
2.2	Remove upper engine covers	Engine 157, 276.8, 278 in model 231
3	Remove both engine air intake ducts upstream of air filter	Engine 157, 276.8, 278 in model 231
4.1	Remove air filter housing (2)	Engine 276.9 in model 231
		Bolt, air filter to cylinder head cover	*BA09.10-P-1001-01M
		Bolt, air filter to air intake pipe support brace	*BA09.10-P-1002-01M
4.2	Remove both air filter housings (2)	Engine 157, 276.8, 278 in model 231 Engine 276.8 in model 231	AR09.10-P-1150RKA
5	Remove insulation on rail
6	Detach connector (4) from cylinder 1 ignition coil (T1/1) to cylinder 6 ignition coil (T1/6) or to cylinder 8 ignition coil (T1/8)
7	Remove screw/bolts (5) at cylinder 1 ignition coil (T1/1) to cylinder 6 ignition coil (T1/6) or to cylinder 8 ignition coil (T1/8)	Screw/bolt, ignition coil to cylinder head cover	*BA15.10-P-1001-04A
9	Pull off cylinder 1 ignition coil (T1/1) to cylinder 6 ignition coil (T1/6) or cylinder 8 ignition coil (T1/8) with associated spark plug connectors (a) upwards and remove	To reduce the force required for plugging/unplugging the spark plug connector grease must be applied before installation of the spark plug connector. The spark plug connectors will get damaged otherwise when they are removed again. Apply about 1 g of spark plug connector grease in the spark plug connector. The cylinder 1 ignition coil (T1/1) to cylinder 6 ignition coil (T1/6) or to cylinder 8 ignition coil (T1/8) and the associated spark plug connector (a) form a unit and can only be removed and replaced together. Spark plug connector grease	*BR00.45-Z-1102-06A
	Check
10	Check cylinder 1 ignition coil (T1/1) to cylinder 6 ignition coil (T1/6) or cylinder 8 ignition coil (T1/8) with spark plug connectors (a) for damage and replace if necessary	The cylinder 1 ignition coil (T1/1) to cylinder 6 ignition coil (T1/6) or to cylinder 8 ignition coil (T1/8) and the associated spark plug connector (a) form a unit and can only be removed and replaced together.
11	Install in the reverse order
12	Read out fault memory using the diagnostic system and clear if necessary
			AD00.00-P-2000-04A
