Remove/install crankshaft Hall sensor - AR15.12-P-2136RKA
ENGINE 276 in MODEL 231
ENGINE 276.8 in MODEL 172

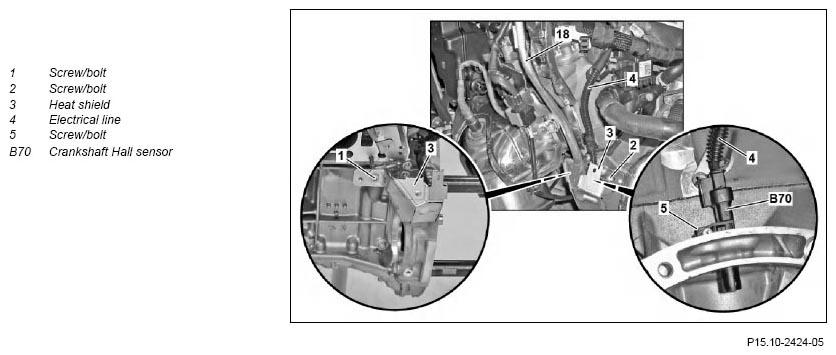

Shown on ENGINE 276.9
| Remove/install | |||
|---|---|---|---|
| 1 | Remove front upper engine cover | Engine 276.9 in model 231 | |
| 2 | Remove intake manifold | Engine 276.9 in model 231 | AR09.20-P-1961RKA |
| 3.1 | Remove bracket for the ME-SFI [ME] control unit | Engine 276.9 in model 231 | AR07.08-P-7008RKA |
| 3.2 | Remove lower engine compartment paneling | Engine 276.8 in model 172 Engine 276.8 in model 231 |
|
| Engine 276.8 in model 231 | AR61.20-P-1105RK | ||
| Engine 276.8 in model 172 | AR61.20-P-1105W | ||
| 4 | Remove screw/bolts (1, 2) and remove heat shield (3) | ||
| 5 | Detach heat shield (3) at left engine support | Engine 276.8 in model 172 | |
| 6 | Remove heat shield (3) downwards | ||
| 7 | Release and disconnect electrical line (4) on crankshaft Hall sensor (B70) | ||
| 8 | Remove screw/bolt (5) and crankshaft Hall sensor (B70) upwards | *BA15.10-P-1001-03E | |
| 9 | Install in the reverse order | ||
| 10 | Read out fault memory using the diagnostic system and clear if necessary | ||
| AD00.00-P-2000-04A |
POSITION SENSOR
| Number | Designation | Engine 276 | |
|---|---|---|---|
| BA15.10-P-1001-03E | Bolt, crankshaft Hall sensor to crankcase | Nm | 8 |
