Remove/install camshaft Hall sensor - AR15.10-P-2000RKB
ENGINE 157, 278 in MODEL 231
| Remove/install | |||
|---|---|---|---|
| 1 | Open engine hood | ||

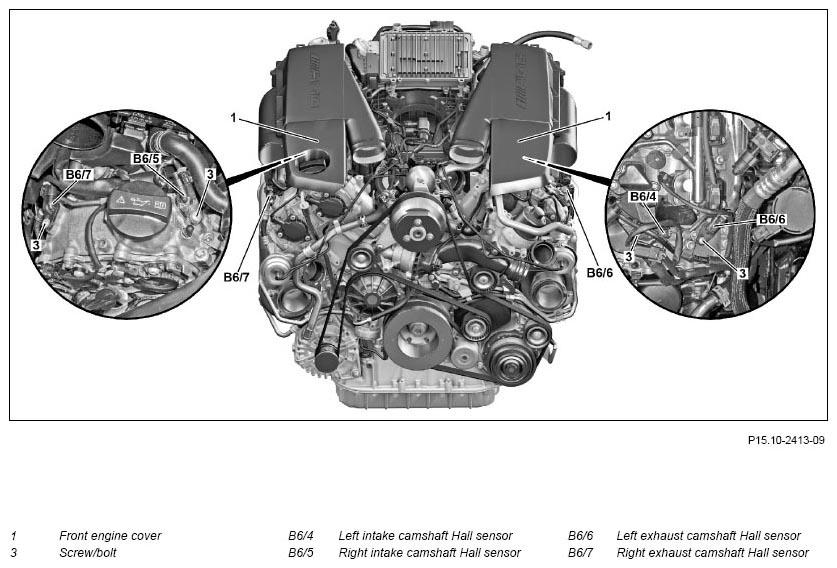

| 2 | Remove front engine cover (1) | ||
| 3 | Remove engine intake air duct upstream of air filter | ||
| 4 | Remove purge line from cylinder head cover | For removal of the LH exhaust camshaft Hall sensor (B6/6). | |
| 5 | Disconnect electrical connection on LH intake camshaft Hall sensor (B6/4) or RH intake camshaft Hall sensor (B6/5) or LH exhaust camshaft Hall sensor (B6/6) or RH exhaust camshaft Hall sensor (B6/7) | ||
| 6 | Remove screw/bolt (3) and pull LH intake camshaft Hall sensor (B6/4) or RH intake camshaft Hall sensor (B6/5) or LH exhaust camshaft Hall sensor (B6/6) or RH exhaust camshaft Hall sensor (B6/7) out of the cylinder head cover | *BA15.10-P-1006-03E | |
| 7 | Install in the reverse order | ||
| 8 | Read out fault memory with STAR DIAGNOSIS and erase if necessary | ||
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 9 | Carry out engine test run, checking the engine for proper operation and leaks |
POSITION SENSOR
| Number | Designation | ENGINE 157 | ENGINE 278 | |
|---|---|---|---|---|
| BA15.10-P-1006-03E | Screw/bolt, camshaft Hall sensor to cylinder head cover | Nm | 8 | 8 |
